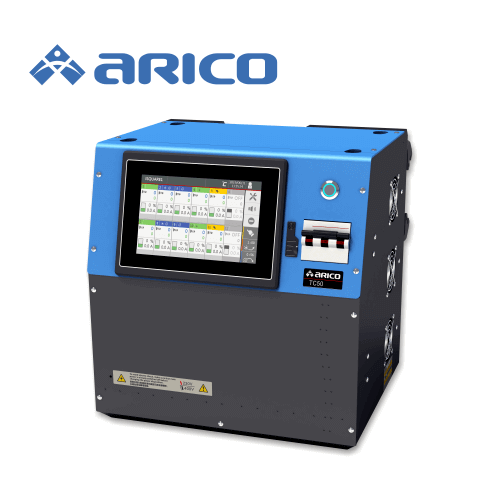

Hot Runner Temperature Controller - TC50

Classification : Hot Runner Temperature Controllers

ARICO TECHNOLOGY CO., LTD.

ARICO TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-2-29101266
Fax: 886-2-29159434
Contact Person: Ms. Chang
  • HMI: 7”LCD display with touch panel
  • Detecting the leakage of material
  • Group setup function
  • Mold Memory
  • Power balance detection and display
  • Synchronous heat up and cool down
  • Self diagnosis log


ARICO - The Best Solution Of Hot Runner Temperature Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Hot Runner Temperature Controllers and related application equipment, but also provides high-quality Hot Runner Temperature Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Hot Runner Temperature Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

1. Thermocouple type: J/K
2. Temperature unit: ℃/℉
3. Heating mode selectable
4. The maximum drive current is 15 ampere for each zone
5. Temperature PID control
6. Zero cross/Phase angle output trigger modes
7. Auto detect the frequency of power source
8. The current detect and display
9. The output with auto/manual setting
10. The soft-start for dehumidification
11. Boost
12. Standby
13. Output mode: Stop/Manual/Slave/continually selectable when Thermo-coupler broken
14. Overload protection for electric Overload protect for heating output
15. The protect mode of power source when wrong input
16. Auto shutdown when abnormal work on module

17. The fast fuse used to protect TRIAC
