  • Single module control two points temperature
  • Standby/boost Function
  • Built-in Buzzer
  • Smart SOFT START function
  • Manual output in case of temperature sensor unusually
  • Output percentage limit setting


ARICO - The Best Solution Of Hot Runner Temperature Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Hot Runner Temperature Controllers and related application equipment, but also provides high-quality Hot Runner Temperature Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Hot Runner Temperature Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

TC5T TC5T-1  (2 zones) TC5T-2 (4 zones) TC5T-4 (8 zones) TC5T-6 (12 zones)
Type T5B02 T5B04 T5B06 T5B08
Power Switch Capacity(A) 32 32 63 63
Output Connector 16pins x1 16pins x1 16pins x2 24pins x2
Power Cable 5.5mm² x 5C x 3M 5.5mm² x 5C x 3M 8mm² x 5C x 3M 8mm² x 5C x 3M
Easy Input Switching Yes Yes Yes Yes
Dimension W x H x D (mm) 100 x 192 x 301 179 x 214 x 329 281 x 214 x 329 383 x 214 x 329

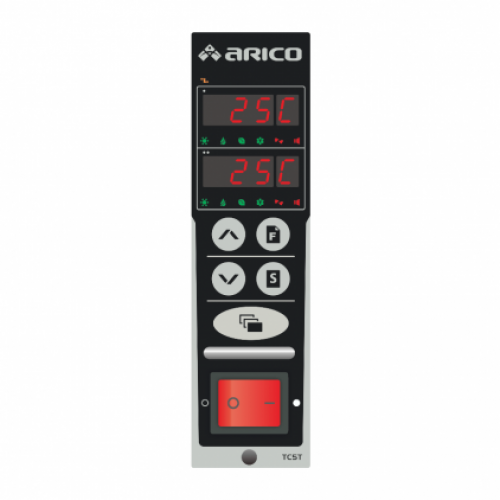

TC5T Model
Control Points 2 Zones
Power Input 230Vac±10%,50/60Hz
Power Consumption 7W
Power Output 3450W,230VAC/15A(Every module)
Output Mode Zero Cross/Phase angel
Input Temp. Sensor J/K type
Temp. Unit °C/°F
Temp. Control Range 0~600°C / 32~999°F
Output Alarm Six modes
Control Accuracy ±0.25%FS
Measurement Accuracy ±0.25%FS
Storage Temp. -20~70°C / -4~158°F
Working Temp. -10~50°C /14~122°F
Humidity 10~80%RH. (non-condensing)
Fuse Fast response ceramic FF20A 500V 6.3*32
Detection Function Current/ Fuse open circuit/ TRAIC short-circuit
Communication Mode RS-485 (Standard MODBUS), Optional
Communication rate 9600/19200/38400/57600/115200

Specification TC5E TC5H TC5T
Control Points 1 zone 1 zone 2 zone
Power Input 230Vac±10%,50/60Hz 230Vac±10%,50/60Hz 230Vac±10%,50/60Hz
Power Consumption 7W 3W 7W
Power Output 3450W,230VAC/15A 3450W,230VAC/15A 3450W,230VAC/15A
(Every module)
Output Mode Zero Cross/Phase angel Zero Cross/Phase angel Zero Cross/Phase angel
Input Temp. Sensor J/K type J/K type J/K type
Temp. Unit °C/°F °C/°F °C/°F
Temp. Control Range 0~600°C / 32~999°F 0~600°C / 32~999°F 0~600°C / 32~999°F
Output Alarm Six modes Six modes Six modes
Control Accuracy ±0.25%FS ±0.25%FS ±0.25%FS
Measurement Accuracy ±0.25%FS ±0.25%FS ±0.25%FS
Storage Temp -20~70°C / -4~158°F -20~70°C / -4~158°F -20~70°C / -4~158°F
Working Temp 0~50°C/32~122°F 0~50°C/32~122°F -10~50°C /14~122°F
Humidity 10~80%RH. (non-condensing) 10~80%RH. (non-condensing) 0~80%RH. (non-condensing)
Fuse Fast response ceramic F20A 250V 6.3*32 Fast response ceramic FF20A 500V 6.3*32 Fast response ceramic FF20A 500V 6.3*32
Detection Function None Current/ Fuse open circuit/ TRAIC short-circuit Current/ Fuse open circuit/ TRAIC short-circuit
Communication Mode None RS-485 (Standard MODBUS), Optional RS-485 (Standard MODBUS), Optional
Communication Rate None 9600/19200/38400/57600/115200 9600/19200/38400/57600/115200
