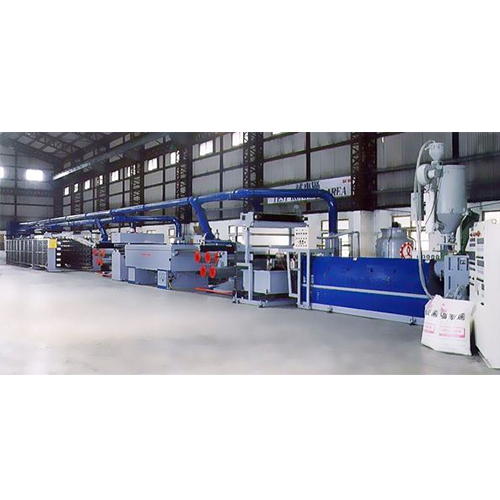

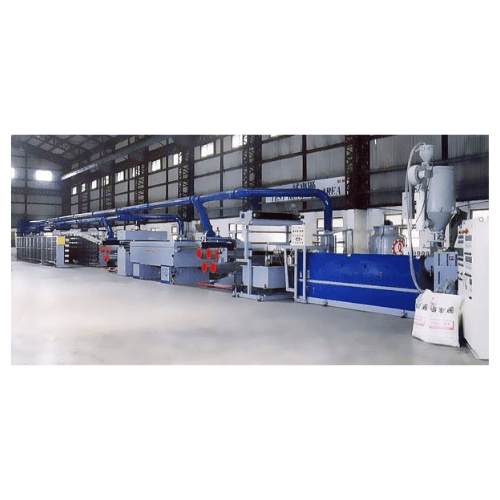

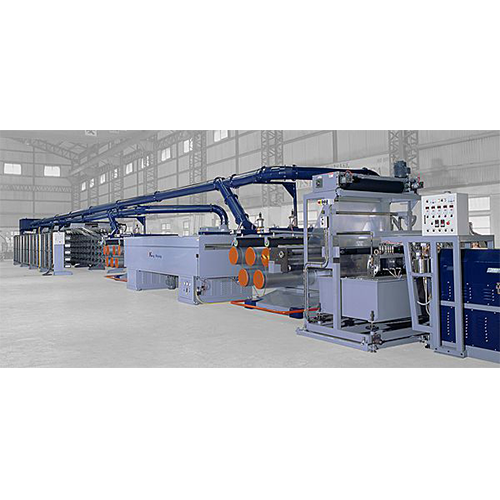

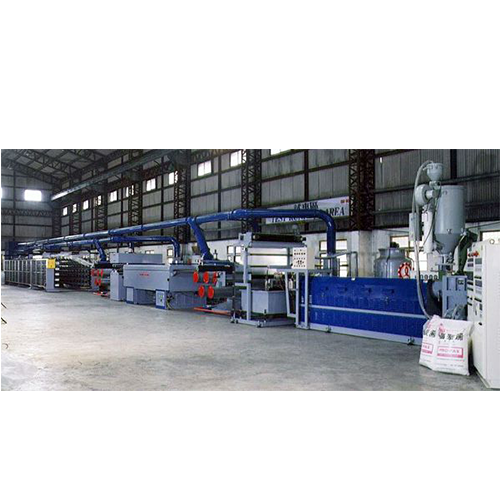

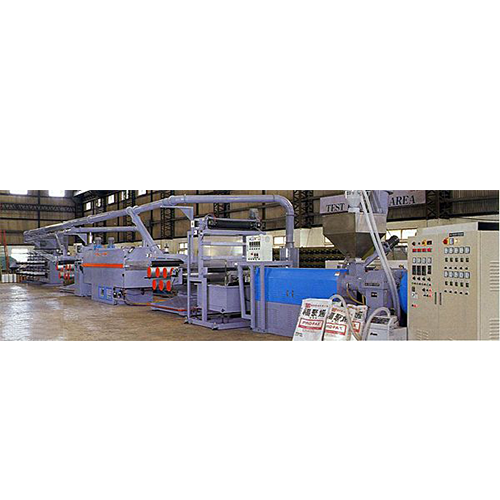

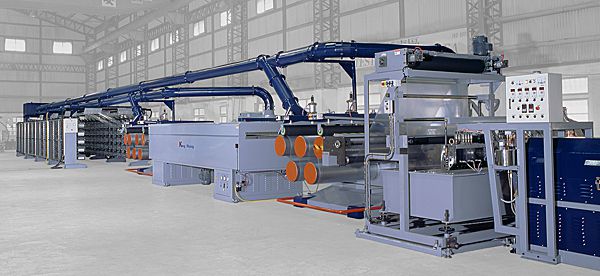

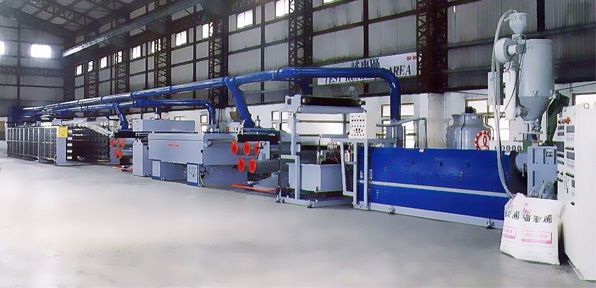

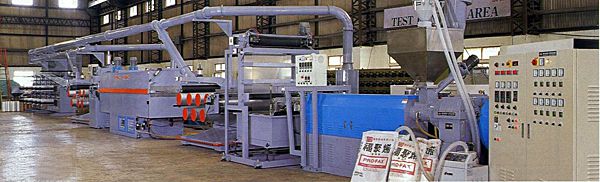

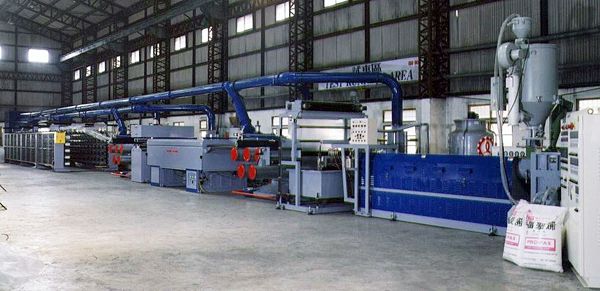

PP & PE Flat Yarn Making Machine Whole Plant Project for Cement / Woven Bag

Classification : Monofilament Making Machine

KUNG HSING PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

Inquiry Now

MODEL		KS-PG85S	KS-PG100S	KS-PG115ST
EXTRUDER	SCREW DIA. & L/D	85ø m/m,32:1	100ø m/m,32:1	115ø m/m,32:1
	SCREW & CYLINDER MATERIAL	SACM645 STEEL WITH HARD WITH NITROGEN TREATMENT
	CYLINDER COOLING BLOWER	½ HP × 4	½ HP × 4	½ HP × 6
	DRIVING MOTOR	75 HP	100 HP	125 HP
	HEATER CAPACITY	23 KW	34.5 KW	40 KW
	SCREEN CHANGER	CARTRIDGE TYPE
	MAX. EXTRUSION OUTPUT	180 KG/HR	280 KG/HR	400 KG/HR
	AUTO HOPPER LOADER	1 SET	1 SET	1 SET
EXTRUDER	DIE LENGTH	860 m/m	1060 m/m	1250 m/m
EXTRUDER	HEATER CAPACITY	10 KW	13.5 KW	18 KW
CONTROL PANEL	TYPE	INDEPENDENCE TYPE SWITCH BOARD (BOX)
CONTROL PANEL	AUTO-THERMO CONTROLLER	10 POINTS	12 POINTS	14 POINTS
COOLING DEVICE & SLITTING UNIT	WATER COOLING TANK (m/m)	1250Wx1250Lx530H	1450Wx1250Lx530H	1640Wx1250Lx530H
	TAKE-OFF ROLLER (m/m)	215øx860Lx2PCS	215øx1060Lx2PCS	215øx1250Lx2PCS
	TAKE-OFF MOTOR	2 HP A.C	2 HP A.C	2 HP A.C
	WATER STOPPED ROLLER (m/m)	100øx860Lx2PCS	100øx1060Lx2PCS	100øx1250Lx2PCS
	EXPANDING ROLLER (m/m)	100øx860Lx3PCS	100øx1060Lx3PCS	100øx1250Lx3PCS
	CHILLER	15 HP	20 HP	40 HP
	SLITTING DEVICE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE
TAKE-OFF "A"	DRIVING MOTOR	7 1/2 HP	7 1/2 HP	20 HP
	TAKE-OF ROLLER (m/m)	270øx950Lx5PCS	270øx1060Lx5PCS	340øx1250Lx5PCS
	PNEUMATIC ROLLER (m/m)	160øx950Lx1PC	160øx1060Lx1PC	215øx1250Lx1PC
	TAKE-OFF SPEED (m/min)	10~40	10~40	15~50
	EDGE TRIM RECYCLING	2 HP CRUSHER & BLOWER
	WASTE YARN COLLECTOR	7 1/2 HP BLOWER	7 1/2 HP BLOWER	20 HP BLOWER
HOT AIR STRETCHING DEVICE	LENGTH/AIR CIRCULATION (m/m)	860Wx4000L	1060Wx4000L	1250Wx4000L
	BLOWER	2 HP BLOWERx2	2 HP BLOWERx2	2 HP BLOWERx2
	HEATER CAPACITY	28 KW	28 KW	30 KW
	AUTO-THERMO CONTROLLER	2 SETS	2 SETS	4 SETS
TAKE-OFF "B" & HEAT PLATE ANNEALLING DEVICE	DRIVING MOTOR	10 HP	15 HP	40 HP
	TAKE-OFF ROLLER (m/m)	270øx860Lx5PCS	270øx1060Lx5PCS	340øx1250Lx5PCS
	COOLING STEEL ROLLER (m/m)	270øx860Lx2PCS	270øx1060Lx2PCS	340øx1250Lx2PCS
	PNEUMATIC ROLLER (m/m)	160øx860Lx1PC	160øx1060Lx1PC	215øx1250Lx1PC
	TAKE-OFF SPEED (m/min)	50~200	50~200	75~350
	HEATER CAPACITY	10 KW	12 KW	14 KW
	WASTIE YARN COLLECTOR	7 1/2 HP BLOWER	7 1/2 HP BLOWER	15 HP BLOWER
WINDING UNIT	NO. OF SPINDLES	138	168	192
	APPLICABLE BOBBIN (I.DxL)	35øx230L (m/m)	35øx230L (m/m)	38øx230L (m/m)
	WINDING MOTOR (kg/cm)	5 kg/cm	5 kg/cm	10 kg/cm
	EFFECTIVE WIDTH	200 m/m L	200 m/m L	200 m/m L
	DIA. OF YARN WOUND-UP ROLL	200ø m/m	200ø m/m	200ø m/m
SHIPPING DATE	DIMENSION (LxWxH)(M)	32x4x2.7	34x4x2.7	40x4x2.7
SHIPPING DATE	TOTAL CONTAINER	40'x2	40'x2	40'x2,20'x1
