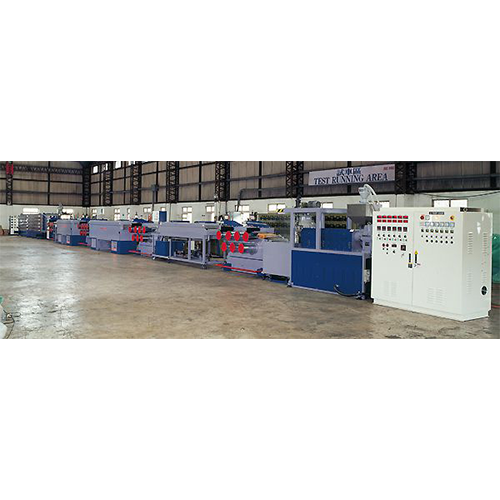

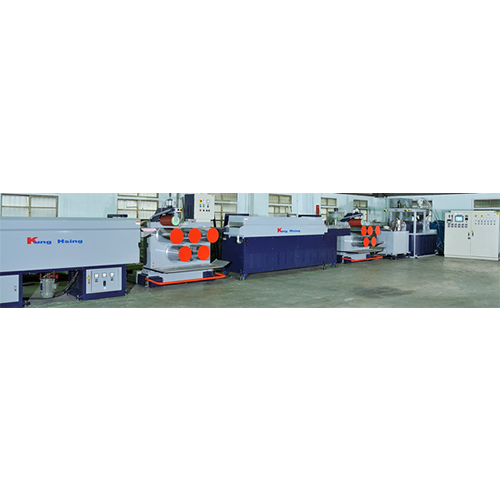

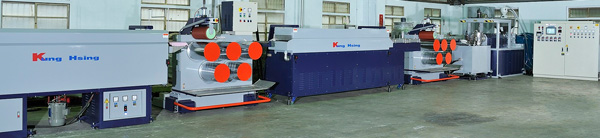

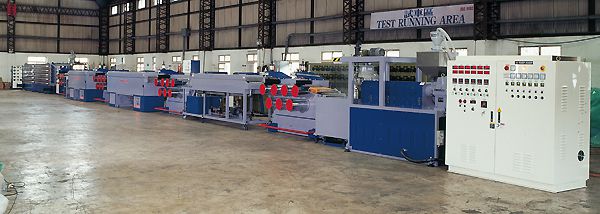

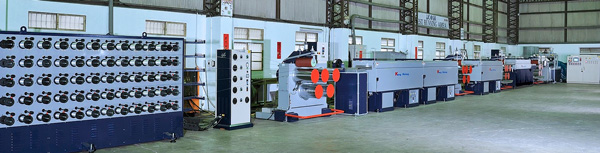

Nylon Monofilament Making Machine

MODEL

KS-MN45

KS-MN55

KS-MN65

KS-MN80

FEATURE

MATERIAL TO BE USED

NYLON

DIA. OF FILAMENT

0.12~1.8 m/mø

EXTRUSION OUT PUT

35 kg/hr

55 kg/hr

75 kg/hr

120 kg/hr

EXTRUDER

SCREW DIA.

45 m/mø

55 m/mø

65 m/mø

80 m/mø

SCREW L/D

30:1

30:1

30:1

30:1

SCREW MATERIAL

SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT

CYLINDER MATERIAL

SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT

CYLINDER COOLING

1/4 HP BLOWER x 2

1/2 HP BLOWER x 3

1/2 HP BLOWER x 3

1/2 HP BLOWER x 4

DRIVING MOTOR

20 HP

25 HP

30 HP

50 HP

HEATER CAPACITY

15 kw

18 kw

23 kw

35 kw

DIE

NOZZLE PLATE

6 pcs.

6 pcs.

6 pcs.

6 pcs.

GEAR PUMP

15 cc x 1

20 cc x 1

25 cc x 1

40 cc x 1

GEAR PUMP DRIVING DEVICE

2 HP

2 HP

3 HP

5 HP

PRESSURE GAUGE

2 SETS

2 SETS

2 SETS

2 SETS

CONTROL PANEL

TYPE

INDEPENDENCE TYPE SWITCH BOARD (BOX)

AUTO-THERMO CONTROLLER

5 POINTS

6 POINTS

6 POINTS

7 POINTS

COOLING DEVICE

TYPE

CHILLING WATER

REFRIGERATOR

5 HP

7 1/2 HP

10 HP

15 HP

TAKE-OFF UNIT A

DRIVING MOTOR

3 HP

5 HP

7 1/2 HP

15 HP

TAKE-OFF SPEED(m/min)

12~45

12~45

10~40

10~40

TAKE OFF ROLLER

270 m/mø x 350 m/mL

270 m/mø x 400 m/mL

270 m/mø x 450 m/mL

270 m/mø x 600 m/mL

PRESS ROLLER

1 PC

1 PC

1 PC

1 PC

PRIMARY STRETCHING DEVICE

TYPE

HOT WATER TYPE

HEATER CAPACITY

14 kw

16 kw

18 kw

20 kw

TAKE-OFF UNIT B

DRIVING MOTOR

7 1/2 HP

10 HP

15 HP

20 HP

TAKE-OFF SPEED(m/min)

45~180

45~180

40~160

40~160

TAKE OFF ROLLER

270 m/mø x 350 m/mL

270 m/mø x 400 m/mL

270 m/mø x 450 m/mL

270 m/mø x 600 m/mL

PRESS ROLLER

1 PC

1 PC

1 PC

1 PC

SECONDARY STRETCHING DEVICE

TYPE

HOT AIR TYPE

LENGTH

350 m/m x 4000 m/m

400 m/m x 4000 m/m

450 m/m x 4000 m/m

600 m/m x 4000 m/m

AIR BLOWER

2 HP

2 HP

2 HP

2 HP

HEATER CAPACITY

14 kw

16 kw

18 kw

20 kw

AUTO-THERMO CONTROLLER

2 SET

2 SET

2 SET

2 SET

TAKE-OFF UNIT C

DRIVING MOTOR

7 1/2 HP

10 HP

15 HP

20 HP

TAKE-OFF SPEED(m/min)

45~180

45~180

40~160

40~160

TAKE OFF ROLLER

270 m/mø x 350 m/mL

270 m/mø x 400 m/mL

270 m/mø x 450 m/mL

270 m/mø x 600 m/mL

PRESS ROLLER

1 PC

1 PC

1 PC

1 PC

ANNEALLING DEVICE

TYPE

HOT AIR TYPE

LENGTH

350 m/m x 4000 m/m

400 m/m x 4000 m/m

450 m/m x 4000 m/m

600 m/m x 4000 m/m

AIR BLOWER

2 HP

2 HP

2 HP

2 HP

HEATER CAPACITY

14 kw

16 kw

18 kw

20 kw

AUTO-THERMO CONTROLLER

2 SET

2 SET

2 SET

2 SET

TAKE-OFF UNIT D

DRIVING MOTOR

3 HP

5 HP

7 1/2 HP

15 HP

TAKE-OFF SPEED(m/min)

45~180

45~180

40~160

40~160

TAKE OFF ROLLER

270 m/mø x 350 m/mL

270 m/mø x 400 m/mL

270 m/mø x 450 m/mL

270 m/mø x 600 m/mL

PRESS ROLLER

1 PC

1 PC

1 PC

1 PC

WINDING MACHINE

TYPE

65 x 1

85 x 1

62 x 2

105 x 2

NO. OF SPINDLES

65

85

130

210

WINDING MOTOR

1.5 kg/cm x 65

1.5 kg/cm x 85

1.5 kg/cm x 130

1.5 kg/cm x 220

TRAVERSE MOTOR

2 HP HYDRAULIC POWER UNIT x 1

WASTE ROOL DRIVE

30 kg/cm x 1

30 kg/cm x 1

30 kg/cm x 1

30 kg/cm x 1

SHIPPING DATA

DIMENSION LxWxH(IN M)

32.5 x 2.5 x 2.5

34.0 x 2.5 x 2.5

37.5 x 2.5 x 2.5

40.0 x 2.5 x 2.5

TOTAL COTAINER

40' x 2

40' x 2

40' x 2

40' x 2, 20' x 1
