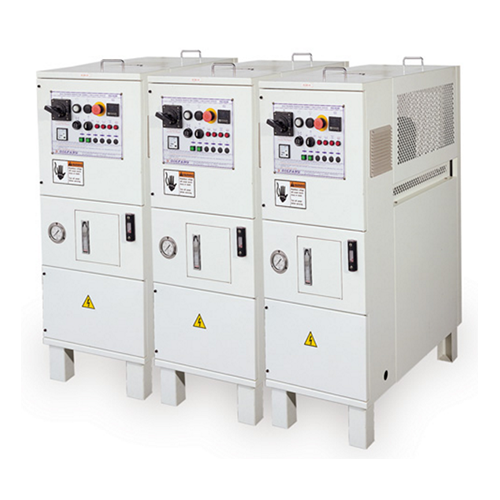

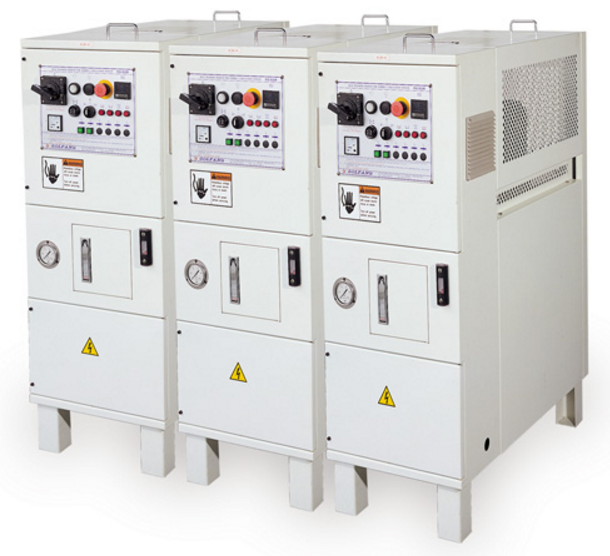

High Temperature & High Pressure Heat Transfer Medium System - GF/TO Series

Classification : Auxiliary Equipment

GOLFANG MFG. & DEVELOPMENT CO., LTD.

Country: Taiwan

Phone: 886-6-2795551

Fax: 886-6-2795553

Contact Person: Mr. Michael Chen

E-catalog Inquiry Now

Characteristics

GF/TO-Series Heat Transfer Medium for indirect Circulation System, with both cooling and heating capabilities, is the required system for enhancing the effectiveness of the main unit's

● With both heating and cooling functions.

● A substitute for steam boiler: Safe, inexplosive and high heat efficiency.

Description

● Suitable for the temperature control of extruder for precision extrusion process and heat-sensitive plastics, such as PVC.

● Suitable for the internal temperature control of high-speed extruder and extruder screw for heat-sensitive plastics (The screw can be easily broken with cooling water).

● For the temperature control of plastic injection molding machine for thermosetting plastics, such as bakelite and melamine.

● For the mold temperature control of precision injection molding machine, injection molding machine for thin-wall applications, or high temperature engineering injection molding machine.

● For the temperature control of rolling machine and plastic board molding wheel.

● For the mold temperature control of rubber and plastic compression molding machines.

● For the temperature control of heating plate, which is used to dry raw material or finished products.

Model No.	UNIT	GF/TO-3SA	GF/TO-3SH	GF/TO-6
Heater Capacity	kw	12.5	11.4	23.3
Motor	kw(HP)	2.2 (3)	1.1 (1.5)	3.0 (4)
Pump Output - 3.5Bar	l/min.	55	25	100
Pump Output - Max.	l/min.	80	60	150
Tank Capacity	l	9	9	20
Transfer Medium	-	Thermal Oil	Thermal Oil	Thermal Oil
Operating Temp.	°C	185	240	240
Machine Weight	kg	130	130	260
Overall Dimension	mm(LWH)	925* 425* 1000	925* 425* 1000	1100 500 1255
