Classification : T-shirt Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Specially designed for mass production of T-Shirt bags. Non-stop design prevents machine from pause while clamping bags.

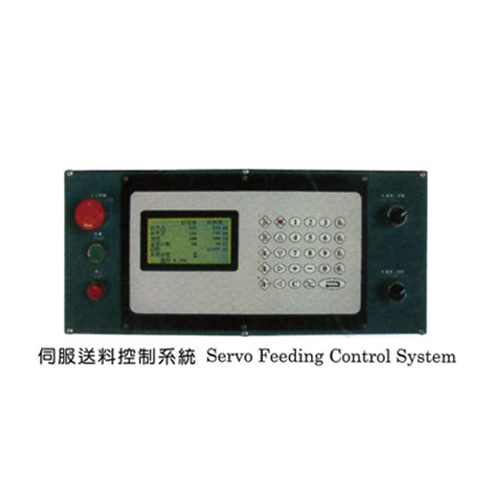

2. Servo feeding control system ensures high speed production with precise size.
3. Mark sensor will automatic tracking printed mark, auto stop when missing.

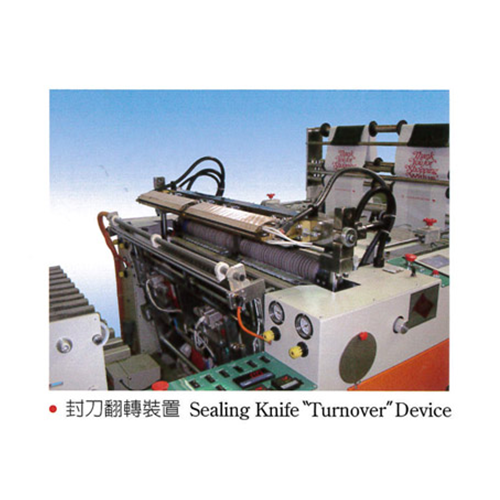

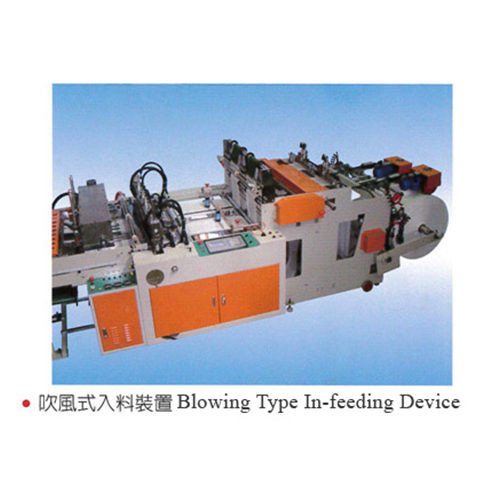

4. Air blowing feeding device and heat sealing system for stronger sealing strength and smoother film feeding.
5. Pneumatic / Hydraulic boosting cylinder to ensure each bundle of bags to be punched out neatly and quickly.
2. Servo feeding control system ensures high speed production with precise size.
3. Mark sensor will automatic tracking printed mark, auto stop when missing.
4. Air blowing feeding device and heat sealing system for stronger sealing strength and smoother film feeding.
5. Pneumatic / Hydraulic boosting cylinder to ensure each bundle of bags to be punched out neatly and quickly.
Model |
SHVS-550 One - Line |
SHVS-800 Two - Line |
SHVS-900 Two - Line |
Speed | Max 280 cycleminute | Max 280 cycleminute | Max 280 cycleminute |
Bag Width | Max 220 m/m | Max 380 m/m | Max 420 m/m |
Bag Length | 250 - 700 mm | 250 - 700 mm | 250 - 700 mm |
Film Thickness | 0.015 - 0.045 mm | 0.015 - 0.045 mm | 0.015 - 0.045 mm |
Main Motor | 3HP2P | 3HP2P | 3HP2P |
Power Consumption | 8 kw | 9 kw | 10 kw |
Air Consumption | 280 / minuti | 320 / minuti | 350 / minuti |
Machine Dimension (LxWxH) | 6800 x 1320 x 2000 mm | 6800 x 1500 x 2000 mm | 6800 x 1620 x 2000 mm |
Machine Weight | 2100 kg | 2300 kg | 2500 kg |
Packing M3 | 6.8 | 7.6 | 8.2 |
Packing M3 | 6.0 | 7.0 | 7.6 |
Gross Weight | 2600 kg | 2800 kg | 3000 kg |
