Servo Motor Driven Jumbo Perforating Bag Making Machine

Classification : Special Type Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
Inquiry Now

1. Twin servo motor driven, efficient mechanical structure.
2. Digital control for production length adjusting, precise and less wastage.
3. High production efficiency to save manpower and time.
4. Automatically stop when the temperature not reaching setting.
5. Automatically stop when running out of film or bag jams.

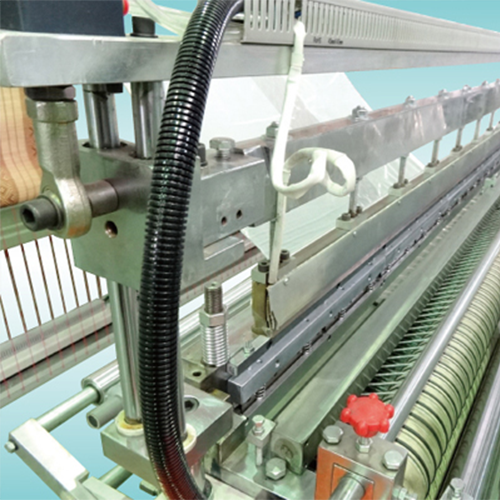

6. Using up and down heater for front sealing device, especially for heavy duty bag thickness up to 0.6mm.
7. Automatically stop when rewinding stand running out of film.

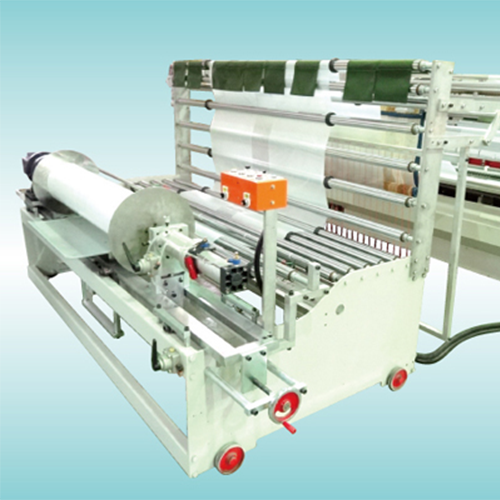

8. Rewinding stand by EPC, bags edge neat.
9. Rewinding stand by safety chuck and air shaft, easy to unload.
10. Rewinding tension stable by servo motor control.


Model SHPC-75 SHPC-90 SHPC-100
Output Cycle/min Nax 5-20 Nax 5-20 Nax 5-20
Rewind width 1600mm 2000mm 2200mm
Rewind Length 3000mm 3000mm 3000mm
Film Thickness 0.06-0.6mm 0.06-0.6mm 0.06-0.6mm
Power Consumption 12KW 13KW 14KW
Main Motor 3HP6P 3HP6P 3HP6P
Machine Dimension (LxWxH) 6500x2540x1650mm 6500x2900x1650mm 6500x3200x1650mm
Machine Weight 3000kg 3500kg 4000kg
Gross Weight 3500kg 4000kg 4500kg
