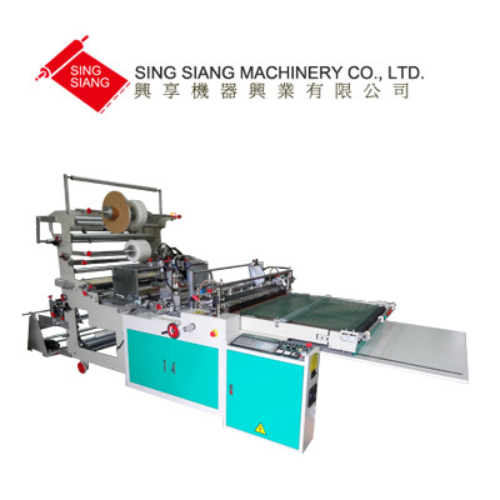

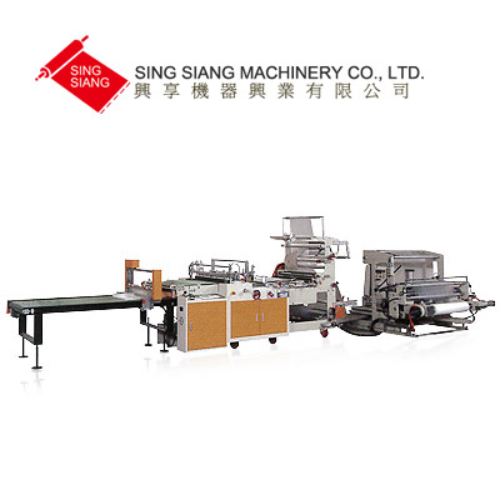

Servo Motor Driven Side Sealing Plastic Bag Making Machine

Classification : Side Sealing Bag Making Machine

SING SIANG MACHINERY CO., LTD.

SING SIANG MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang

1. Servo Motor Driven, Efficient mechanical structure produce 180 bags per minute.

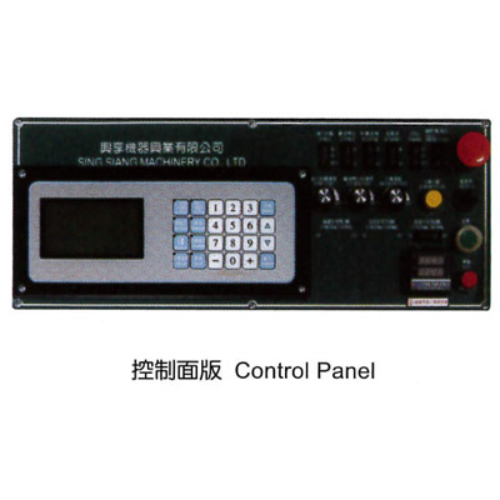

2. User-friendly Control Panel, easy to understand easy to operate.
3. Digital control for production length adjusting, precise and less wastage.
4. Simple design, assemble precisely, durable, and easy for maintaining.
5. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
6. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.

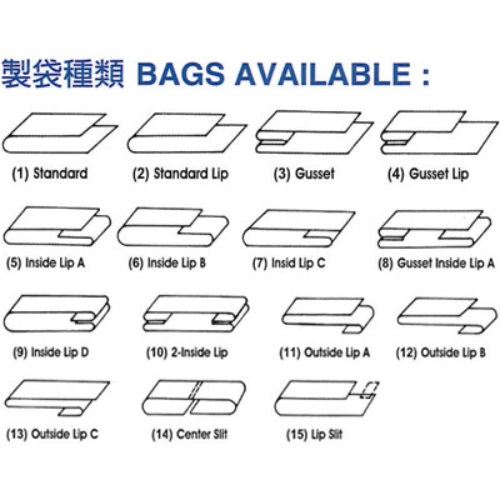

7. Universal Welding Device, easy operating and able to produce up to 15 kind of bag.
8. SHSS-T Twin Servo Motor Driven Model can produce two different size of printed plastic bag at same time.

• The Conventional mechanical clutch / brake and rack & pinion system is also available.


Optional Accessories:

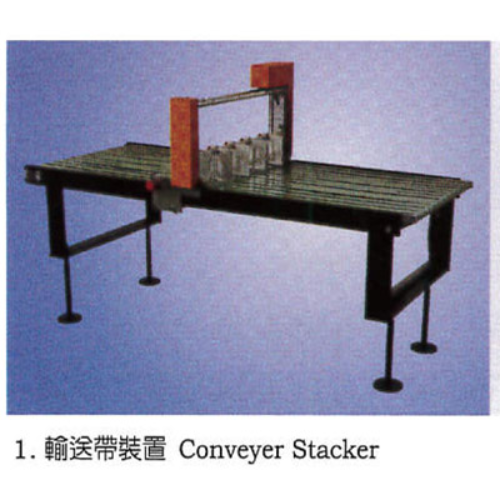

1. Conveyer Stacker.

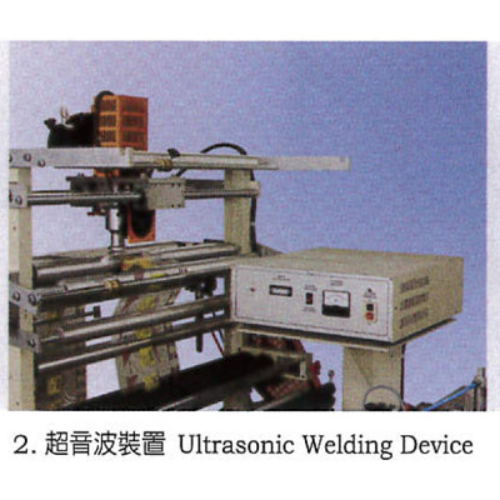

2. Ultrasonic Welding Device.

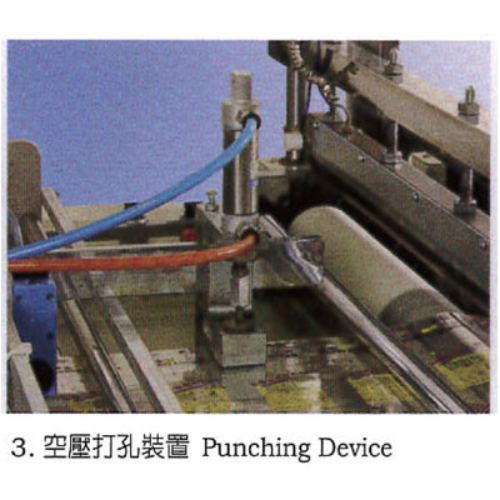

3. Punching Device.

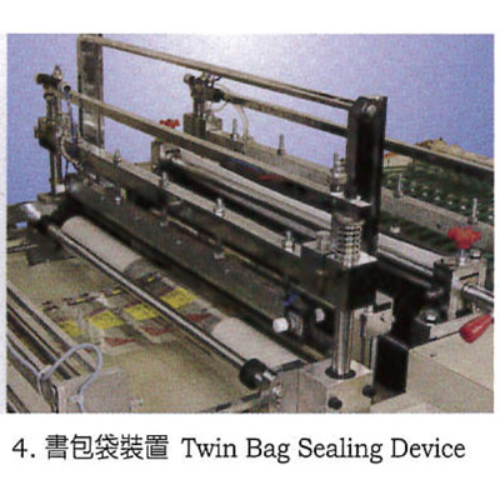

4. Twin Bag Sealing Device.
5. Central Sealing Line Punch Device.
6. Rear Unwinder with EPC Device.
7. Perforated Line Roller.

Minimum production width

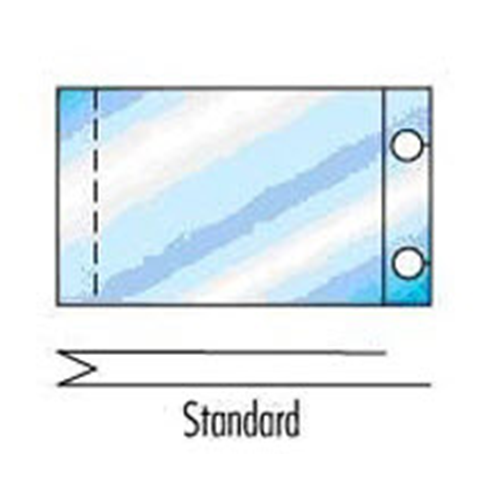

Standard Model Min 50 m/m
Medium-Size Model Min 35 m/m
Small-Size Model Min 20 m/m


Model SHSS-30 SHSS-36 SHSS-42
Output Cycle/min Max 20 ~ 180 Max 20 ~ 150 Max 20 ~ 100
Bag Width 750 m/m 750 m/m 750 m/m
Bag Length Max 750 m/m Max 890 m/m Max 1010 m/m
Servo Motor One Set
Main Motor 2H4P 2H4P 2H4P
Inverter 3 HP 3 HP 3HP
Heater 2.5 KW 3.0 KW 3.5 KW
Power Consumption 4.0 KW 5.2 KW 5.7 KW

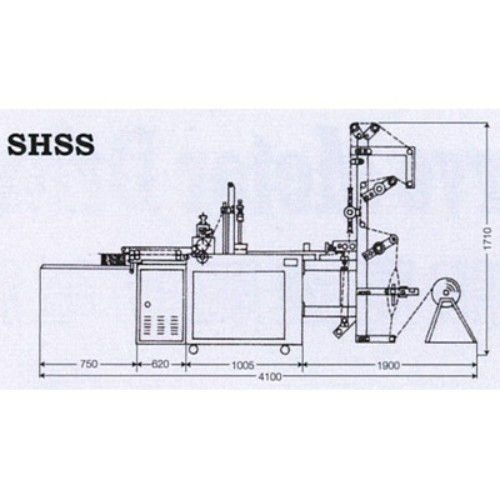

Machine Dimension (LxWxH) 4100 x 1420 x 1710 4100 x 1570 x 1710 4100 x 1720 x 1710
Machine Weight 1400 kg 1550 kg 1700 kg
Packing M3 8.5 m3 9.5 m3 10.5 m3
Gross Weight 1700 kg 1900 kg 2100 kg
