TWIN Servo Motor Driven Bottom Sealing Plastic Bag Making Machine

Classification : Bottom Sealing Bag Making Machine

SING SIANG MACHINERY CO., LTD.

SING SIANG MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Driven by two independent Servo Motor , Efficient mechanical structure produce 120 bags per minute.
2. User-friendly Control Panel, easy to understand easy to operate.
3. Digital control for production length adjusting, precise and less wastage.
4. Simple design, assemble precisely, durable, and easy for maintaining.
5. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
6. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.
7. Can produce two different size of printed plastic bag at same time.
8. Equip with Front Thick Bags Sealing Device, will able to produce any long length of bags.

• The Conventional mechanical clutch / brake and rack & pinion system is also available.


Optional Accessories:
1. Conveyer Stacker.
2. Front Thick Bags Sealing Device.
3. Punching Device.
4. Rear Instant Air Cooling Device.
5. Calendar Bags Flocking Attachment Device.
Model SHCG-T-30 SHCG-T-36 SHCG-T-42 SHCG-T-50
Output Cycle/min Max 140 Max 140 Max 140 Max 140
Bag Width 375 m/m 445 m/m 500 m/m 600 m/m
Standard Bag Length Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 1820 m/m
Servo Motor Two Set
Main Motor 2H4P 2H4P 2H4P 2H4P
Inverter 3 HP 3 HP 3 HP 3 HP
Heater 2.5 KW 3.0 KW 3.5 KW 4.0 KW
Power Consumption 4.0 KW 5.2 KW 5.7 KW 6.2 KW

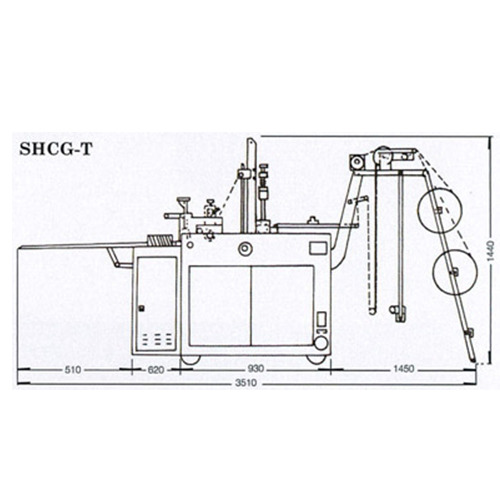

Machine Dimension (LxWxH) 3510 x 1420 x 1650 4200 x 1570 x 1650 4200 x 1720 x 1650 4200 x 1870 x 1650
Machine Weight 900 kg 1000 kg 1100 kg 1400 kg
Gross Weight 1200 kg 1300 kg 1400 kg 1500 kg



Model SHCG-T-30A SHCG-T-36A SHCG-T-42A SHCG-T-50A
Output Cycle/min Max 140 Max 140 Max 140 Max 140
Bag Width 375 m/m 445 m/m 500 m/m 600 m/m
Standard Bag Length Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 1820 m/m
Servo Motor Two Set
Main Motor 2H4P 2H4P 2H4P 2H4P
Inverter 3 HP 3 HP 3 HP 3 HP
Heater 2.5 KW 3.0 KW 3.5 KW 4.0 KW
Power Consumption 4.0 KW 5.2 KW 5.7 KW 6.2 KW
Machine Dimension (LxWxH) 4300 x 1420 x 1650 4300 x 1570 x 1650 4300 x 1720 x 1650 4300 x 1870 x 1650
Machine Weight 1000 kg 1100 kg 1200 kg 1300 kg
Gross Weight 1300 kg 1400 kg 1500 kg 1600 kg
