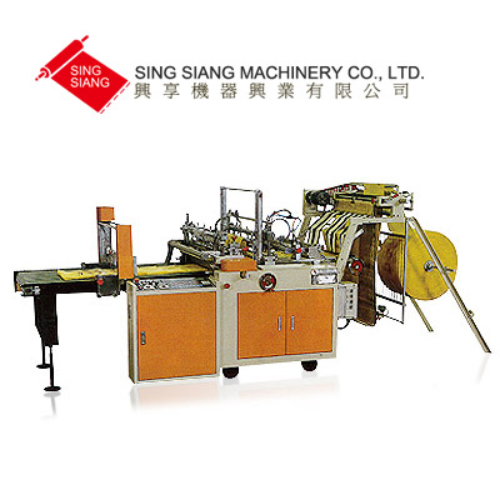

Servo Motor Driven Bottom Sealing Plastic Bag Making Machine

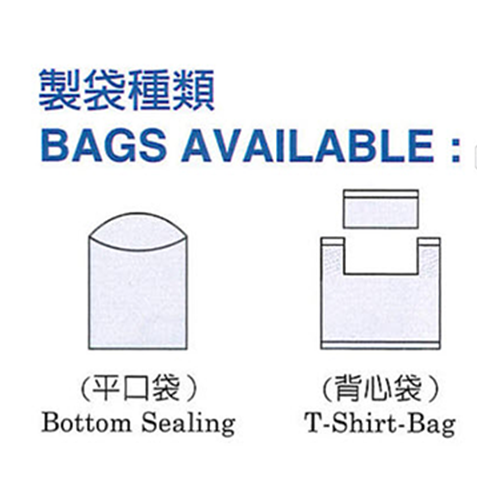

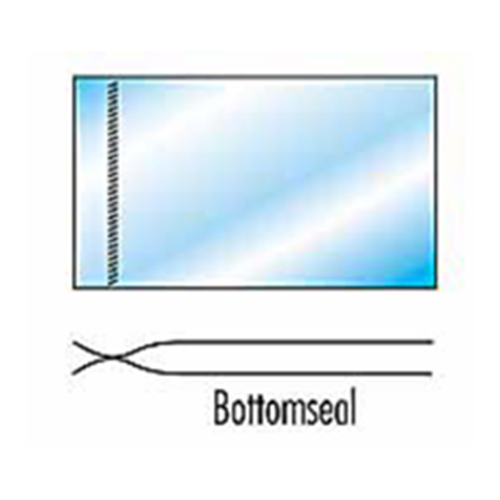

Classification : Bottom Sealing Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
Inquiry Now

Special Feature:
1. Servo Motor Driven, Efficient mechanical structure produce 120 bags per minute.

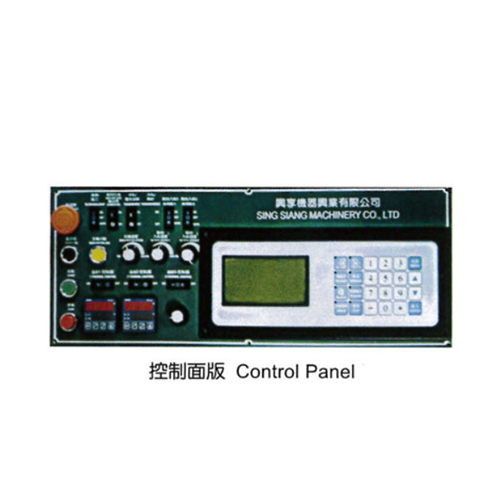

2. User-friendly Control Panel, easy to understand easy to operate.
3. Digital control for production length adjusting, precise and less wastage.
4. Simple design, assemble precisely, durable, and easy for maintaining.
5. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
6. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.
7. Equip with Front Thick Bags Sealing Device, will able to produce any long length of bags.
8. SHCG-T Twin Servo Motor Driven Model can produce two different size of printed plastic bag at same time.

• The Conventional mechanical clutch / brake and rack & pinion system is also available.


Optional Accessories:
1. Conveyer Stacker.
2. Second Set of In Feed Roller.

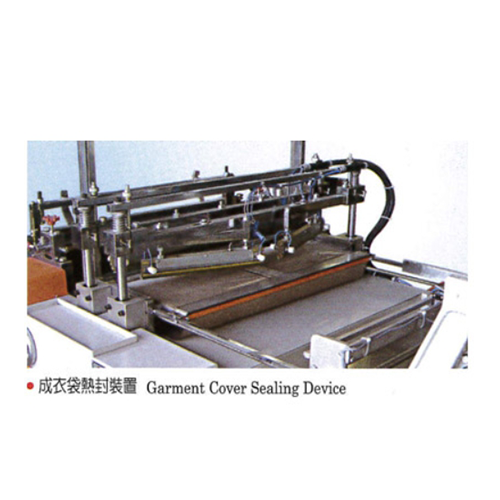

3. Garment Cover Sealing Device.
4. Front Thick Bags Sealing Device.

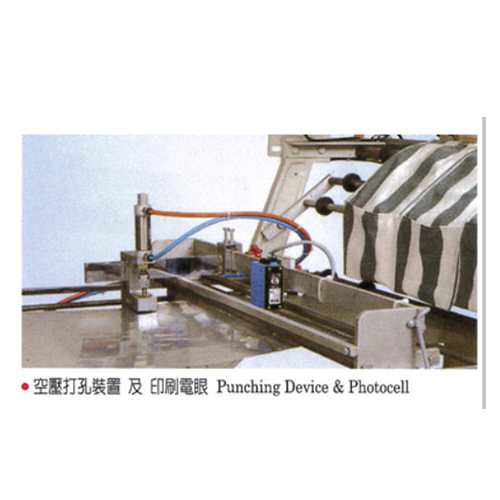

5. Punching Device.
6. Rear Instant Air Cooling Device.
7. Static Shielding Bags Production Device.
8. Packing List Envelopes Production Device.
9. Calendar Bags Flocking Attachment Device.
10. Glove Bags.





Model SHCG-20 SHCG-24 SHCG-30 SHCG-36 SHCG-42 SHCG-50 SHCG-60 SHCG-75
Output Cycle/min Max 140 Max 140 Max 140 Max 140 Max 100 Max 100 Max 80 Max 80
Bag Width 480 m/m 550 m/m 725 m/m 860 m/m 1010 m/m 1210 m/m 1470 m/m 1850 m/m
Standard Bag Length Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 2540 m/m Max 2540 m/m Max 2540 m/m
Servo Motor One Set
Main Motor 2H4P 2H4P 2H4P 2H4P 2H4P 2H4P 2H4P 2H4P
Inverter 3 HP 3 HP 3 HP 3 HP 3 HP 3 HP 3 HP 3 HP
Heater 2.0 KW 2.2 KW 2.5 KW 3.0 KW 3.5 KW 4.0 KW 4.5 KW 5.0 KW
Power Consumption 3.5 KW 3.7 KW 4.0 KW 5.2 KW 5.7 KW 6.2 KW 6.7 KW 7.2 KW

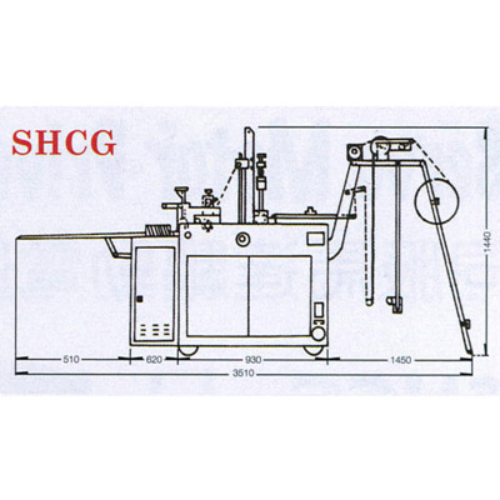

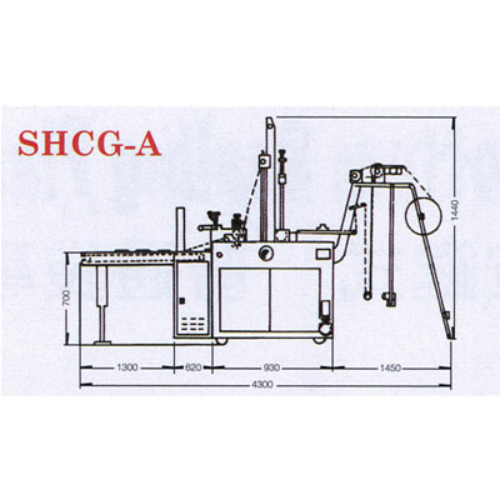

Machine Dimension (LxWxH) 3300 x 1170 x 1440 3300 x 1270 x 1440 3300 x 1420 x 1440 4200 x 1570 x 1650 4200 x 1730 x 1650 4200 x 1930 x 1650 4200 x 2190 x 1650 4200 x 2540 x 1650
Machine Weight 700 kg 800 kg 900 kg 1000 kg 1100 kg 1200 kg 1300 kg 1400 kg
Gross Weight 930 kg 1100 kg 1200 kg 1300 kg 1400 kg 1500 kg 1600 kg 1700 kg
