Servo Motor Driven Double Layer Bag Making Machine

Classification : Bottom Sealing Bag Making Machine

SING SIANG MACHINERY CO., LTD.

SING SIANG MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Servo Motor Driven, Efficient mechanical structure produce 120 bags per minute.
2. User-friendly Control Panel, easy to understand easy to operate.
3. Digital control for production length adjusting, precise and less wastage.
4. Simple design, assemble precisely, durable, and easy for maintaining.
5. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
6. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.

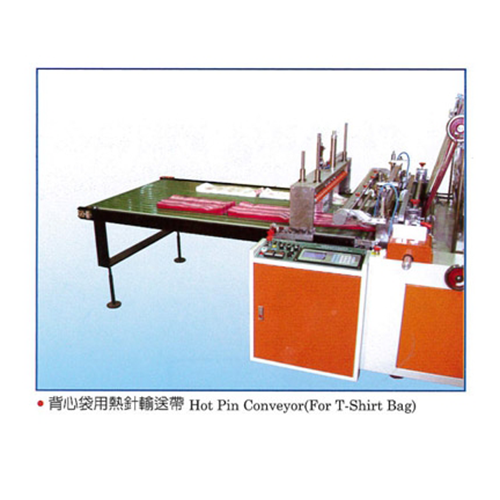

7. Optional accessories: hot pin conveyor stack for T-Shirt bag making machine.


Model SHTF-30A SHTF-36A SHTF-42A SHTF-50A SHTF-60A
Output Cycle/min Max 120 Max 100 Max 90 Max 60 Max 60
Bag Width Max 725 m/m Max 860 m/m Max 1010 m/m Max 1210 m/m Max 1470 m/m
Bag Length Max 1820 m/m Max 1820 m/m Max 1820 m/m Max 2540 m/m Max 2540 m/m
Film Thickness 0.01 ~0.06 m/m 0.01 ~0.06 m/m 0.01 ~0.06 m/m 0.01 ~0.06 m/m 0.01 ~0.06 m/m
Main Motor 2H4P 2H4P 2H4P 2H4P 2H4P
Power Consumption 3.5 HP 4.0 HP 4.5 HP 5.0 HP 6.0 HP
Machine Dimension (LxWxH) 5880 x 1430 x 2010 5880 x 1585 x 2010 5880 x 1740 x 2010 5880 x 1940 x 2010 5880 x 2200 x 2010
Machine Weight 1450 kg 1650 kg 1850 kg 2050 kg 2250 kg
Gross Weight 1900 kg 2100 kg 2300 kg 2500 kg 2700 kg
