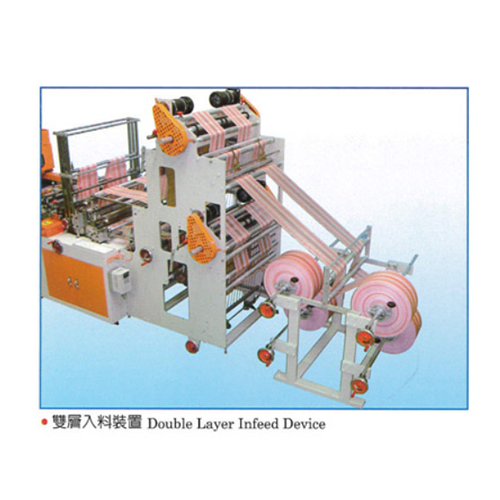

Servo Motor Driven Double Layer T-Shirt Bag & Bottom Bag Making Machine

Classification : Bottom Sealing Bag Making Machine

SING SIANG MACHINERY CO., LTD.

SING SIANG MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Servo Motor Driven, Efficient mechanical structure produce 120 bags per minute.
2. User-friendly Control Panel, easy to understand easy to operate.
3. Digital control for production length adjusting, precise and less wastage.
4. Simple design, assemble precisely, durable, and easy for maintaining.
5. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
6. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.
7. One line & two line adjustable sealing blade for T-shirt bag and bottom sealing bag.

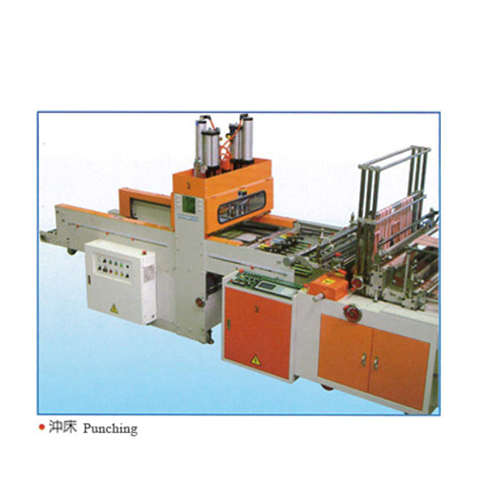

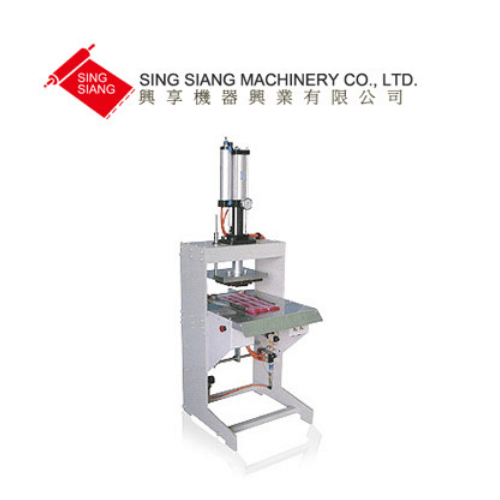

8. Optional accessories: Rotate table boost cylinder type manual punch

Model SHTF-30P SHTF-36P SHTF-42P
Output Cycle/min Max 120 Max 100 Max 90
Bag Width Max 320 m/m Max 380 m/m Max 440 m/m
Bag Length Max 750 m/m Max 750 m/m Max 750 m/m
Film Thickness 0.01 ~0.04 m/m 0.01 ~0.04 m/m 0.01 ~0.04 m/m
Main Motor 2H4P 2H4P 2H4P
Power Consumption 3.5 HP 4.0 HP 4.5 HP
Machine Dimension (LxWxH) 6000 x 1430 x 2060 6000 x 1585 x 2060 6000 x 1740 x 2060
Machine Weight 2300 kg 2400 kg 2500 kg
Gross Weight 2700 kg 2800 kg 3000 kg
