Classification : Special Type Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Twin servo motor driven, efficient mechanical structure.
2. Digital control for production length adjusting, precise and less wastage.
3. High production efficiency to save manpower and time.
4. Automatically stop when the temperature not reaching setting.
5. Automatically stop when running out of film or bag jams.
6. Flying knife device by servo motor control, unnecessary to adjust the cutting blade.

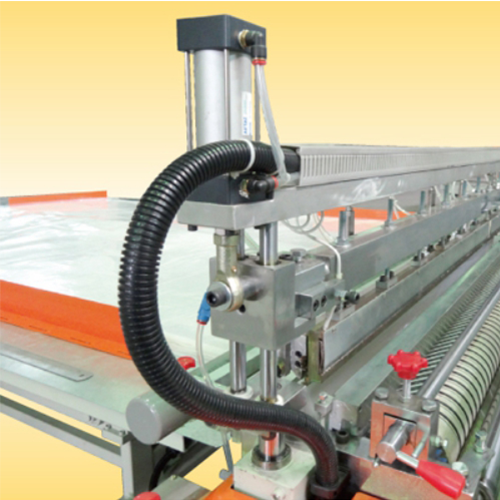

7. Using up and down heater for front sealing device, especially for heavy duty thickness up to 0.6mm.
8. With pneumatic unwind unit to lift up the film roll automatically.
2. Digital control for production length adjusting, precise and less wastage.
3. High production efficiency to save manpower and time.
4. Automatically stop when the temperature not reaching setting.
5. Automatically stop when running out of film or bag jams.
6. Flying knife device by servo motor control, unnecessary to adjust the cutting blade.
7. Using up and down heater for front sealing device, especially for heavy duty thickness up to 0.6mm.
8. With pneumatic unwind unit to lift up the film roll automatically.
1. Air shaft.
2. Pneumatic auto loading device on un-winding stand.

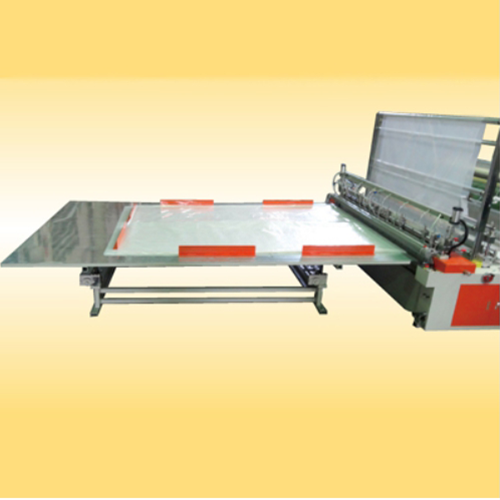

3. Lift type receiver plate device
2. Pneumatic auto loading device on un-winding stand.
3. Lift type receiver plate device

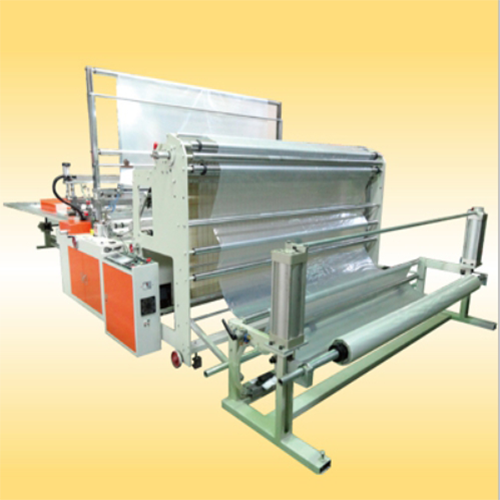

Twin Servo Motor Driven Flying Knife Bottom Sealing Bag Making Machine
Model | SHCG-75 | SHCG-90 | SHCG-100 |
Output Cycle/min | Max 5-30 | Max 5-30 | Max 5-30 |
Max Width | 1600mm | 2000mm | 2300mm |
Max Length | 3000mm | 3000mm | 3000mm |
Film Thickness | 0.06-0.6mm | 0.06-0.6mm | 0.06-0.6mm |
Power Consumption | 10KW | 10KW | 12KW |
Main Motor | 3HP6P | 3HP6P | 3HP6P |
Machine Dimension (L*W*H) | 8000x2540x1650mm | 8000x2900x1650mm | 8000x3200x1650mm |
Machine Weight | 2000kg | 2200kg | 2500kg |
Gross Weight | 2300kg | 2500kg | 2800kg |

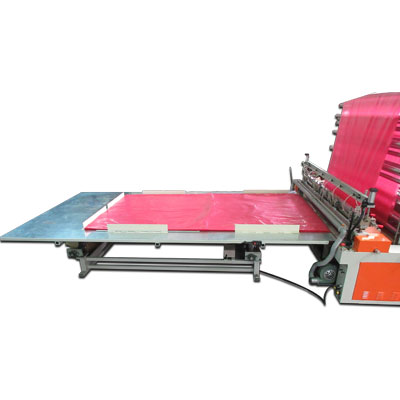

Twin Servo Motor Driven Double Layer Flying Knife Bottom Sealing Bag Making Machine
Model | SHTF-90 |
Output Cycle/min | Max 5-30 |
Max Width | 2000mm |
Max Length | 3000mm |
Film Thickness | 0.06-0.6mm |
Power Consumption | 10KW |
Main Motor | 3HP6P |
Machine Dimension (L*W*H) | 8000x2300x2300mm |
Machine Weight | 2700kg |
Gross Weight | 3200kg |
