Extension Module

Classification : Industrial automation products

TECHMATION CO., LTD.

TECHMATION CO., LTD.
Country: China
Phone: 886-2-2218-1686
Fax: 886-2-2218-1766
Contact Person: Dragon

Product features:

Overview: professional function extension module, card design, smaller size.

Advantages: digital communication, long distance use/easy expansion/easy wiring

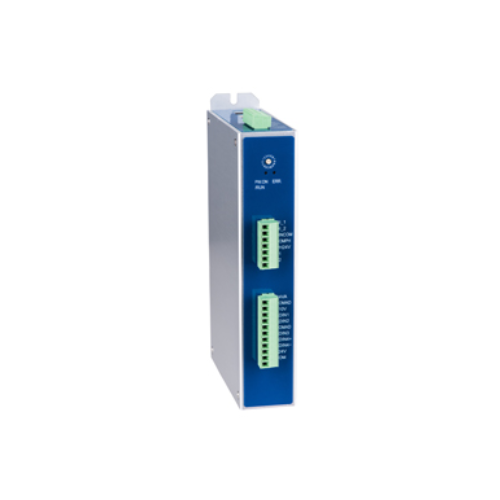

TmIoT-i101

Item Specification
Size L(mm)*W(mm)*D(mm) 190*115*35.5
Central Processor LM3S9B90 80MHZ
Digital Input 8(DC0V, MAX.5mA)
Digital Output 8(DC24V, MAX.50mA)
Analog Input 6
Analog Ouput 2
Communication Port Ethernet*1 (10/100M)
CAN*2

TmIoT-i102

Item Specification
尺寸 L(mm)*W(mm)*D(mm) 225*115*35.5
Central Processor LM3S9B90 80MHZ
Digital Output 16(DC0V, MAX.5mA)
Digital Output 16(DC24V, MAX.2mA)
Communication Port Ethernet*1 (10/100M)
CAN*2

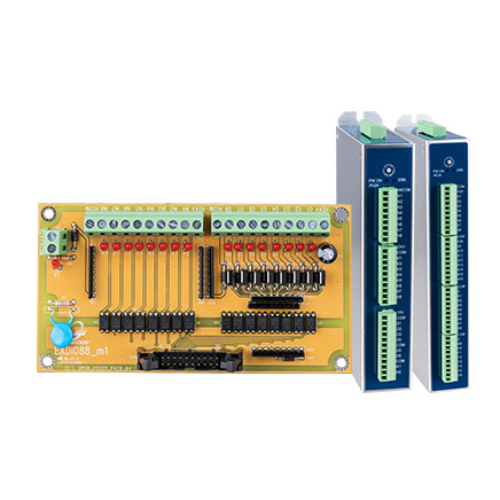

IO88

Item Specification
Size L(mm)*W(mm)*D(mm) 135*72*28
PC 8(DC24V 2A)
PB 8 (DC24V 5mA)


IO88R

Item

Specification

Size L(mm)*W(mm)*D(mm)

135*72*28

Relay

8(NO. 5A)

PB

8 (DC24V 5mA)

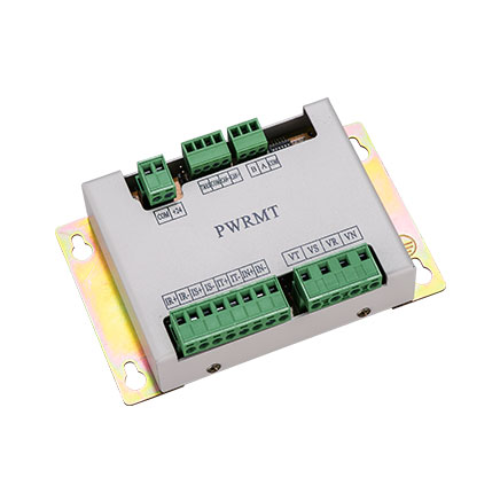

PRODUCT INTRODUCTION:

Power meter is a special accessory product developed by Techamtion in 2011. It is composed of transformer, power measurement module, and the existing servo energy saving system and network management system of the company, so as to provide more efficient energy management solutions for the plastic machinery industry. Compared with the traditional power meter on the market, the meter can provide quality control and equipment protection functions.

PRODUCT USAGE:

Can be widely used in various industrial machinery power measurement, such as injection molding machine, die casting machine and other machinery and equipment energy consumption measurement.

FUNCTION FEATURES:

1. The main screen shows the current total energy consumption;
2. Up to 8 meter connections can be supported;
3. The monitoring data of the power meter display information of three-phase voltage, current, power and electric energy, etc.;
4. It can monitor the energy consumption per unit weight of current production.

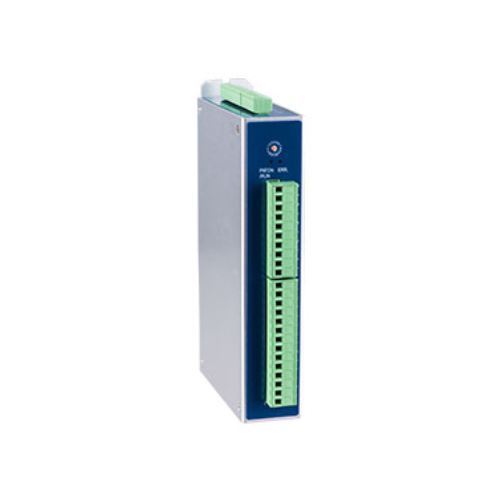

Product overview:

The closed-loop control of position and pressure is realized, and there are many control modes. And equipped with a variety of communication interfaces;

Product advantages:

Support for multiple control (mainly position control  with T type and S type optional + pressure control)/integrates some software modules - processing molding process of complex movement control/support CAN + EtherCAT - high-speed industrial bus/a motion card CAN support multiple drives/card design - the area is small, less space utilization/installation is very convenient).

Product features:

CAN digital communication to drive
Uniaxial servo, HYB3 or HYB5 systems
Open and close mold, demoulding, rotary disc positioning control
Injection shaft positioning control, pressure closed-loop control
Closed loop control of speed of storage shaft
Hydraulic clamping positioning control
Closed loop control of oil pressure and pressure
Backpressure control of material storage



Main Parameter
CPU DSP28335
CAN 0
Ethernet 2
EtherCAT 1
DI 2( DC24V 5mA )
DO
2( DC24V 50mA )
AD
4( 0~10V*3、±10V*1)


12-segment temperature control card(RMTP12B) :

Professional 12-segment temperature control module overview: professional 12-section temperature control module, card type design, smaller volume, can be placed in the module temperature line junction box.
Advantages: digital communication/easy to expand/temperature self-learning/measurement accuracy up to 0.1 degrees, 10 times the traditional accuracy/control accuracy plus or minus 0.5 degrees, four times the traditional accuracy/specification: 12-stage temperature control

16-segment temperature control card(RMTP16B) :

Overview: professional 16-segment temperature control module

Specification

Size/L*W*D (mm)

190*115*35.5

CPU

LM3S9B90, 80MHzFLASH 256KB, SRAM 96KB

Temperature

12 segment

Digital Output

12 dot(DC24V, MAX 1.2A)

CAN

1 group

Measurement accuracy

0.1°

Control accuracy

±0.5°
