Classification : T-Shirt Bag
Country: Taiwan
Phone: 886-5-2358505
Fax: 886-5-2359463
Contact Person: Zoe Tsai

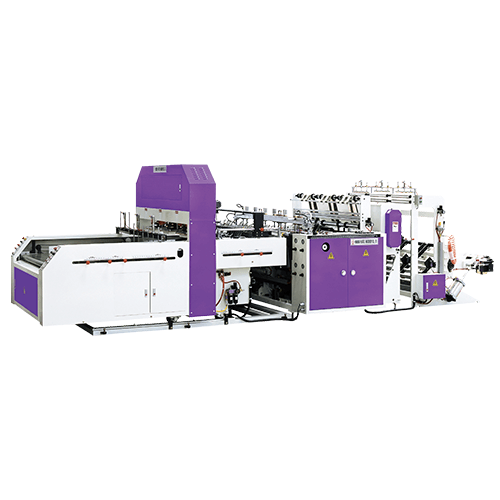

● The machine is especially designed for making T-shirt bags with high productivity. It produces bags from input film to output products by three auto high-speed production lines.
● This machine utilizes three servomotors for sending film,ensuring accuracy of bag length.
● This machine utilizes three servomotors for sending film,ensuring accuracy of bag length.
| Model | BJABP+AS3 50" |
| Max. Cutting Width mm (inch) | 150-330(6"-13")x3 |
| Max. Cutting Length mm (inch) | 300-630(12"-25") |
| Thickness (micron/sheet) | 9-40 |
| Length Tolerance (mm) | ±1 |
| Production Rate (pcs/min) | max.250 |
| AC Driving Motor (HP) | 2 |
| Heater Capacity (kW) | 8.6 |
| Power Required (kW) | 27.8 |
| Machine Dimensions (LxWxH cm) | 650x210x200 |
| Machine Weight (kg) | 5300 |
| Packing Measurement | - |
| Punching (LxWxH cm) | 310x185x206 |
| Main (LxWxH cm) | 210x229x175 |
| Rear Feeding (LxWxH cm) | 210x200x185 |
| Gross Weight (kg) | 6150 |
