Bottom Sealing Bag Making Machine

Classification : Bag Making Machine

POLYSTAR MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-2730889

Fax: 886-6-2730887

Contact Person: Jack Lin

Inquiry Now

Bottom Sealed Bag Making. Cold Cutting Type.

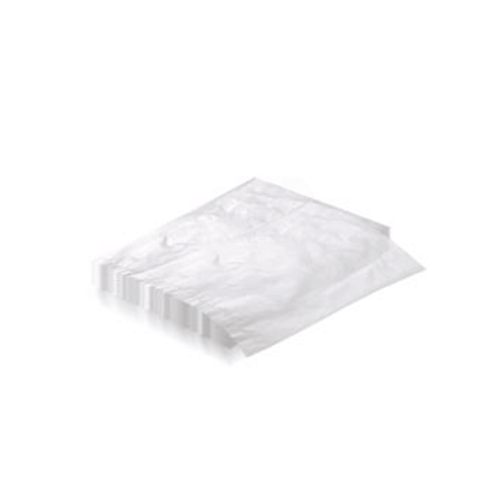

The bottom-sealed type bag-making machine is designed for making flat bags, pop-up plastic bags, and packaging bags. Both gusseted and non-gusseted plastic film can be processed by this machine. This bottom-sealed bag-making machine is a basic type bag bag-making machine to makes flat bags for deli bags, bakery bags, and bags for food packaging.

The specially designed bottom-sealed bag-making machine can load a maximum of 6 rolls of plastic film at the same time. Maximum output of 6 lanes can reach 720 pcs of flat bags per minute.

Model Name	BS Bottom Sealed Bag Making Machine
Final Product	Bottom Sealed Bags
Application	Flat Bag, Pop-up Top Bag, T-shirt Bag, Die Cut Punched Bag
Material	HDPE, LDPE, LLDPE , PP Film
Output range	30 -720 pcs/min
Bag Width	100mm~900mm
Bag Thickness	0.008~0.1mm
Servo motor	Yaskawa
Photocell	SICK
Optional Devices	Automatic Punching Device, Manual Punching Device
Delivery Time	60~75 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

Model	BS28-2	BS32-2	BS42-2	BS28-4	BS32-4
	1 Deck, 2 Layers	1 Deck, 2 Layers	1 Deck, 2 Layers	2 Deck, 2 Layers	2 Deck, 2 Layers
Lane	2 Lanes	2 Lanes	2 Lanes	4 Lanes	Lane: 4 Lanes
Bag Width	600mm	700mm	1000mm	300mm	350mm
Bag Length	800mm	800mm	800mm	800mm	800mm
Max Thickness	0.015 mm	0.015 mm	0.015 mm	0.015 mm	0.015 mm
Capacity	30~100 pcs/min (1 lane)	30~100 pcs/mi n (1 lane)	30~100 pcs/min (1 lane)	30~120 pcs/min (1 lane)	30~120 pcs/min (1 lane)
	60~200 pcs/min (2 lanes)	60~200 pcs/min (2 lanes)	60~200 pcs/min (2 lanes)	120~480 pcs/min (4 lanes)	120~480 pcs/min (4 lanes)
Power Consumption	7 kw	8 kw	9 kw	7 kw	8 kw
Model	BS42-4	BS28-6	BS32-6	BS42-6
	2 deck, 2 layers	2 Deck, 3 Layers	2 Deck, 3 Layers	2 Deck, 3 Layers
Lane	4 Lanes	6 Lanes	6 Lanes	6 Lanes
Bag Width	450mm	300mm	350mm	450mm
Bag Length	800mm	800mm	800mm	800mm
Max Thickness	0.015 mm	0.015 mm	0.015 mm	0.015 mm
Capacity	30~120 pcs/min (1 lane)	30~120 pcs/min (1 lane)	30~120 pcs/min (1 lane)	30~120 pcs/min (1 lane)
	120~480 pcs/min (4 lanes)	180~720 pcs/min (6 lanes)	180~720 pcs/min (6 lanes)	180~720 pcs/mi n (6 lanes)
Power Consumption	9 kw	7 kw	8 kw	9 kw
