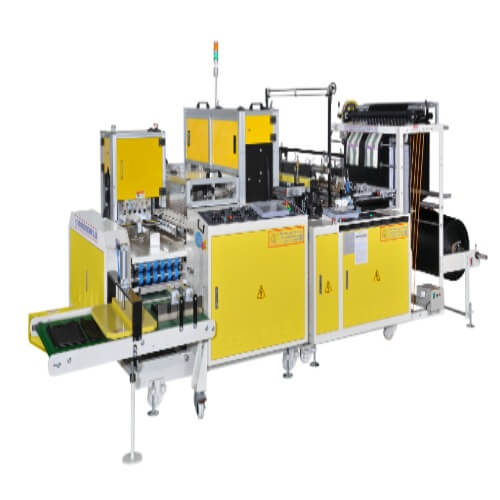

CWA+3F-SV Fully Automatic Bottom Sealing Bag Making Machine with 3 Folding Device by Servo Motors Control

Classification : Special Bag Making Machines

CHAO WEI PLASTIC MACHINERY CO., LTD.

CHAO WEI PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-2686688
Fax: 886-5-2687821
Contact Person: Cathy Chang
Automatic Electronic High Speed Cutting & Sealing Machine with 3-Folding Device (Servo Motor Control)
‧ Number of sheets can be proceed and presented by auto digital counter.
‧ It save labours, time and is profitable in mass production.

1. 4 Folding Device.
2. Servo Motor Control.
3. Photo Cell for Printing Bag.

Model

CWA+3F-800-SV

CWA+3F-1000-SV

CWA+3F-1200-SV

CWA+3F-1300-SV

BAG WIDTH (MAX.)

16" ~ 30" (400mm~760mm)

16" ~ 38" (400mm~960mm)

16" ~ 43" (400mm~1090mm)

16" ~ 47" (400mm~1190mm)

BAG LENGTH

28" ~ 48" (700mm~1200mm)

28" ~ 48" (700mm~1200mm)

28" ~ 60" (700mm~1500mm)

28" ~ 60" (700mm~1500mm)

CONVERTING THICKNESS

0.008 ~ 0.1 mm

0.008 ~ 0.1 mm

0.008 ~ 0.1 mm

0.008 ~ 0.1 mm

ACCURACY LENGTH

± 1 mm

± 1 mm

± 1 mm

± 1 mm

SPEED PCS/MIN

20 ~ 50

20 ~ 50

20 ~ 50

20 ~ 50

MOTOR (HP)

2

2

2

2

HEATER

4.2 kw

5.3 kw

6.3 kw

6.9 kw

POWER REQUIRED

5.1 kw

6.5 kw

7.2 kw

7.8 kw

DIMENSION L x W x H (CM)

680 x 180 x 155

690 x 190 x 155

700 x 200 x 155

710 x 210 x 155

MACHINE WEIGHT

1800 kgs

2000 kgs

2200 kgs

2300 kgs

PACKING L x W x H (CM)

280 x 175 x 170
257 x 200 x 170

290 x 175 x 170
257 x 200 x 170

300 x 180 x 170
257 x 210 x 170

310 x 180 x 170
257 x 210 x 170

GROSS WEIGHT

2200 kg

2400 kg

2650 kg

2750 kg


Specifications are subject to change without notice for improvement.
