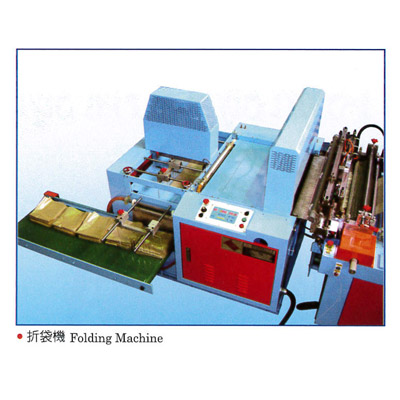

3-Folded Garbage Bag Making & Folding Machine - T-shirt Style & Flat Style

Classification : Folding Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang

1. Servo driven rolls prouder smooth consistent bag delivery and precise cut offs.
2. With this sealing & cutting machine, each sheet folds automatically. It saves time and labor.
3. Number of sheet to be processed can be set with Auto-Digital Counter.

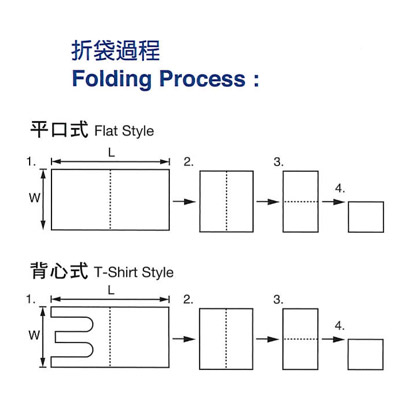

4. Depending on width, bags can be folded in three or four to speed up packaging.
5. Easy to adjust using pneumatic controls with electromagnet.

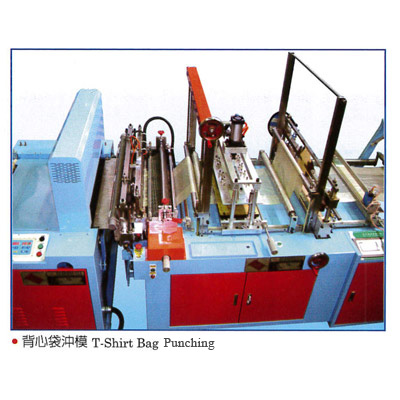

6. Removable T-Shirt bag punch and power roller.
7. Waste collect conveyor.



Model SHGF-30T
Folding "W " (mm) 600 mm
Folding "L" (mm) 1000 mm
Thickness (mm) 0.01~0.06
Length Tolerance + 1 mm
Production Per Min. (pc) 20 ~50
Main Body Driving Motor (AC) 2 HP
Sub Body Driving Motor(AC) 1 HP
Power Required 5.5 kw
Air Source 5 kg ~ 7 kg
Dimension LxWxH (mm) 3100 x1520 x1970
2610 x 1820 x1580
Machine Weight (kg) 2300
Measurement LxWxH (mm) 3310 x1610 x2180
2820 x 1910 x1790
Gross Weight (kg) 2800
