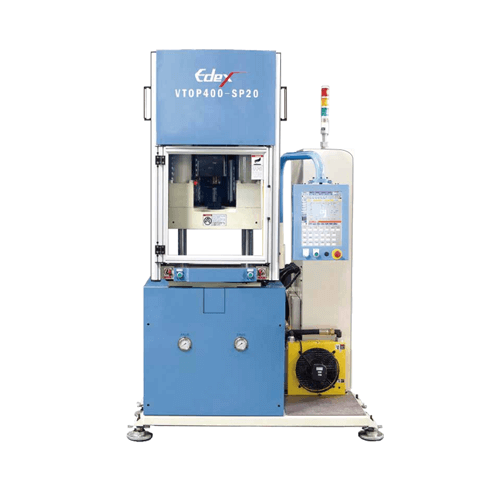

VTOP- Vertical Plunger Type Injection Molding Machine

VTOP- Vertical Plunger Type Injection Molding Machine
Classification : Vertical Injection Molding Machine
EDEX TECHNOLOGY CO., LTD.
EDEX TECHNOLOGY CO., LTD.
Country: Taiwan
Phone: 886-2-28471194
Fax: 886-2-28471491
Contact Person: Jonathan Ke
Inquiry Now

● Patented interchangeable 3-in-1 modular slide table design.

● Capable of producing precise micro products as 0.001-0.0001 gram products.

● Patented active bypass auxiliary plasticization system design.

● New design patent-IPIS (Interchangeable Plunger Injection System).

● Plunger Type Injection can highly save resin runner.

● 2-platen 4-cylinder direct clamping system.

● Patented central-radial platen durable for 30 years.

● Dual protection of safety door and safety light curtains.

● Intelligent program controller makes injection easier.

● The lowest table height injection molding machine.

● Precise energy-saving hydraulic system.

Model VTOP700-SP70
Injection system Screw diameter mm 18 22
Plunger diameter mm 12 16 16 20
Injection volume cm3 13.6 24.1 24.1 37.7
Injection pressure kgf/cm2 2951 2635 2635 2720
Injection speed mm/s 679 428 428 265
Screw speed RPM 400
Clamping system Non-Slide Table Single Slide Table Double Slide Table
Max. clamping force KN/Tonf 700/71.4
Distance between tie-bars mm 460x460
Platen dimension mm 770x770
Max. daylight mm 550 490 490
Minimum mold thickness mm 210 150 150
Slide table stroke mm   485 630
Slide table dimension mm 450x630 450x1260
Ejector stroke Tonf/mm 3.3/100
Heater zone set N3+H3
Eater capacity KW 6
Heater capacity KW 10
Dimension m (LxWxH) 1.7x1.47x2.9 1.97x1.47x2.9 1.63x1.98x2.9
Weight Ton 2.55 2.7 2.87
