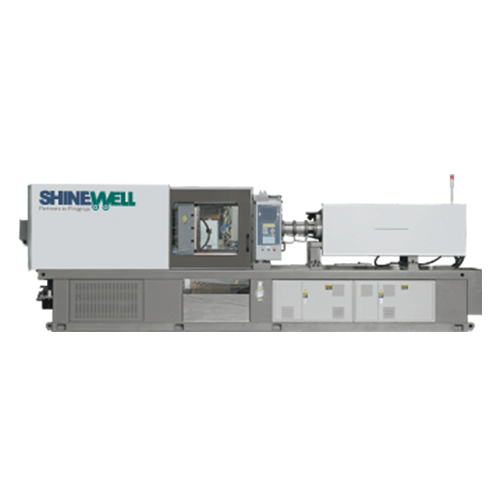

Thermosetting Injection Molding Machine 90BBE to 400BBE

Classification : Products

SHINE WELL MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-2330519

Fax: 886-6-2330398

Contact Person: Joseph Lung

Inquiry Now

Model	International Size	Theoretical Injection Volume	Clamping Force	Space Between Tie Bars	Mold Opening Stroke
90BBE	900H-326	183	90	360x360	330
120BBE	1200H-435	251	120	395x395	380
150BBE	1500H-614	366	150	425x425	430
200BBE	2000H-760	491	200	470x470	480
250BBE	2500H-958	641	250	515x515	525
300BBE	3000H-1423	848	300	555x555	570
350BBE	3500H-1703	1062	350	620x620	620
400BBE	4000H-2045	1308	400	700x650	670

EXTRA ELEMENTS FOR THERMOSET PROCESSING

Steel and FRP plates are installed on the fixed and movable platens to insulate heat generation from the thermoset mold.
Special design that allows the gases inside of the mold to be released in two different stages.
Core and cavity mold temperatures are digital and are set individually.

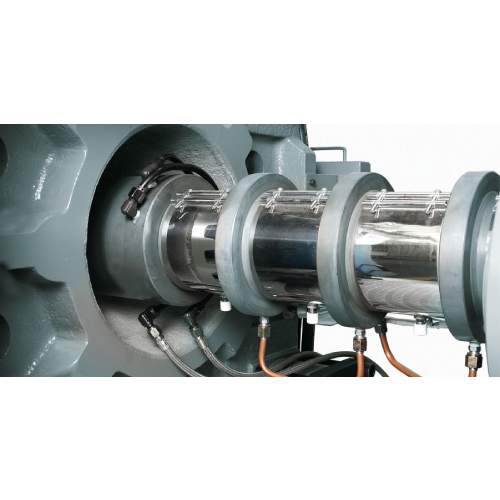

SPECIAL SCREW BARREL DESIGN FOR THERMOSET MOLDING

Barrel sleeve is nitrified, and the screw is thermally sprayed to strengthen wear resistance and lifespan.
One-piece rod, less L/D ratio, and compression-free screw design make melt flow smoothly.
A linear transducer calculates the injection and plasticizing strokes and displays the correct and precise position.
The single-carriage cylinder at the rear side provides easy access to disassemble the barrel or nozzle and to save space on the purging area.

SPECIAL SCREW BARREL DESIGN FOR THERMOSET MOLDING

Barrel sleeve is nitrified, and the screw is thermally sprayed to strengthen wear resistance and lifespan.
One-piece rod, less L/D ratio, and compression-free screw design make melt flow smoothly.
A linear transducer calculates the injection and plasticizing strokes and displays the correct and precise position.
The single-carriage cylinder at the rear side provides easy access to disassemble the barrel or nozzle and to save space on the purging area.
