PRM-TAIWAN

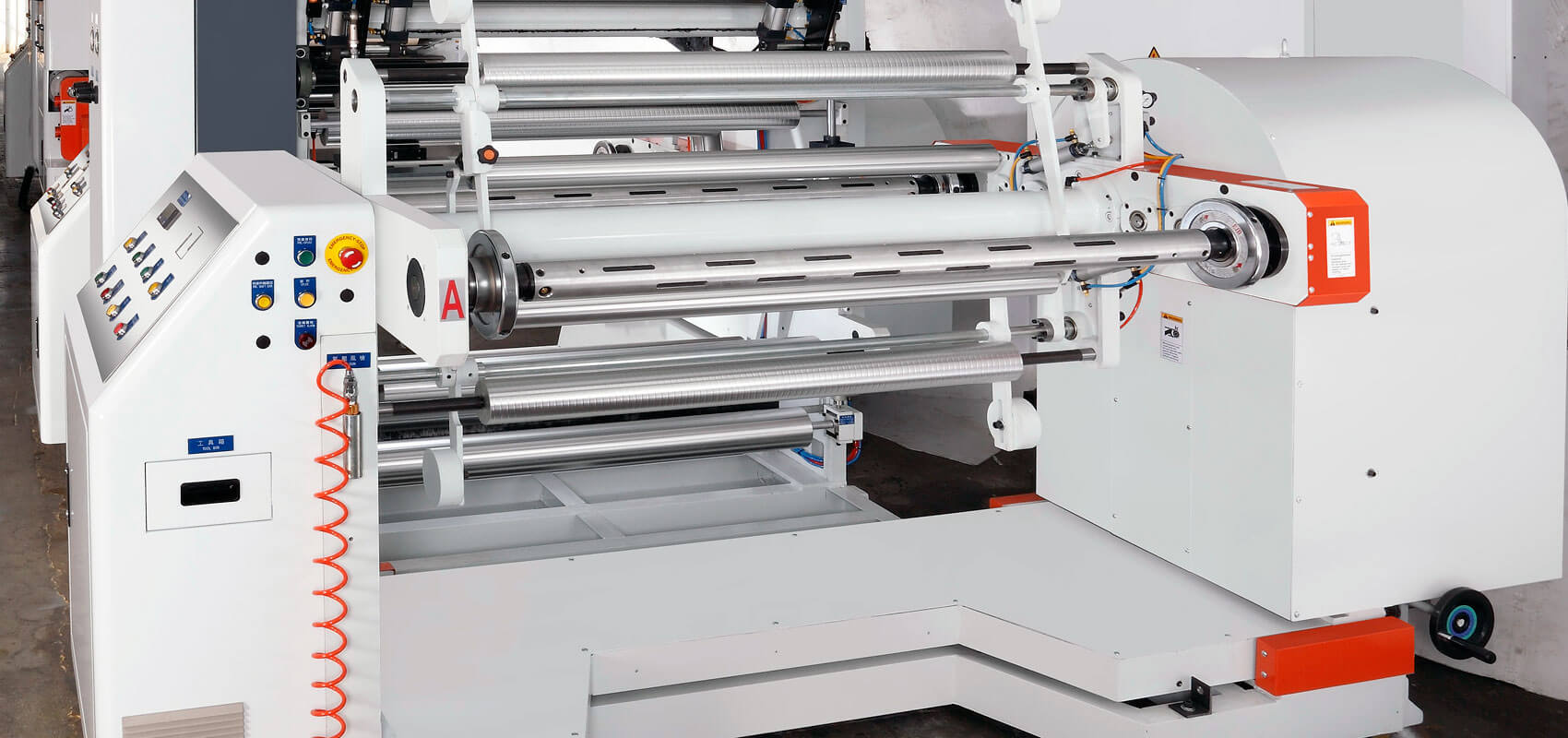

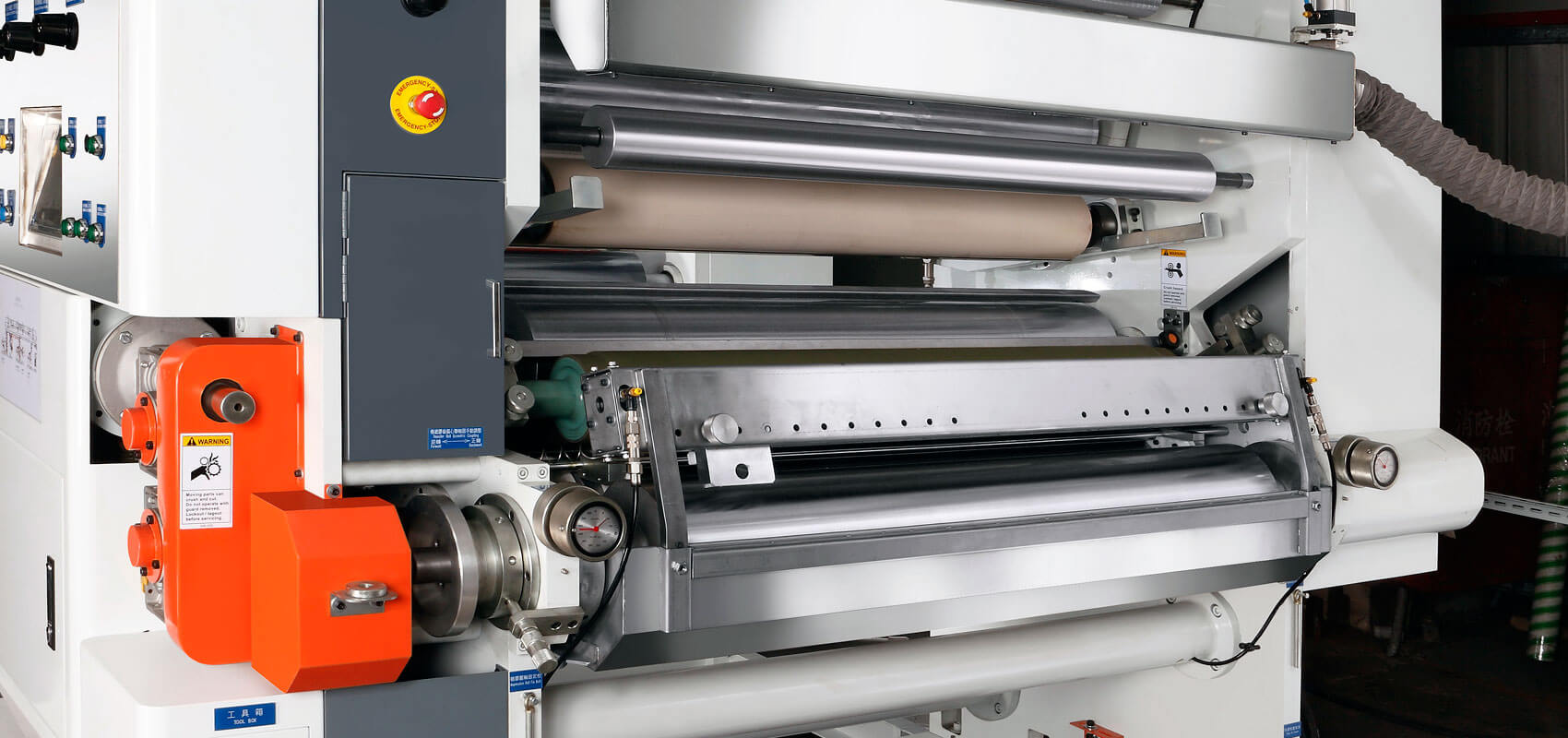

Solvent-less & Solvent-base Combi Laminating Machine(WDSL Series)

Country: Taiwan
Phone: 886-4-23599850、23599851
Fax: 886-4-23596625、23584485
Contact Person: Mr. Klive Lai
For the solvent-free lamination, WORLDLY launches solvent-less & solvent-base combi laminating machine WDSL series. The unwinder and rewinder are adopted with a double shaft turret type with automatic splicing system, which can continue splicing without stopping the machine. This also greatly enhances the work efficiency. Moreover, the manipulation is much easier and simple with the PLC digital control system and touchable human-machine interface.

Solvent-less & solvent-base combi laminating machine WDSL series is the leading popular machines for solvent-free. It has higher compound speed in order to increase productivity. And, there is no wasted costs caused by the solvent evaporation. Also, the coating thickness is very thin with 100% solid ingredient which can reduce a lot of cost. The production won't produce solvent evaporation and there is no solvent residue. It all conforms to food safety regulations. Meanwhile, there's no need for drying chamber which can save energy. The solvent-less & solvent-base combi laminating machine can be ordered from solvent-base lamination, solvent-less lamination, or solvent-base & solvent-less lamination which can accomplish three-layer lamination depends on the customer's need, and the machine itself can be shorten to save space for additional use which can make a significantly cost reduction.

Optional Features

  • Non-solvent residue
  • Productivity increased
  • Double shaft turret winder with auto splicer
  • One time processing can accomplish three-layer lamination
  • For multi-layer & various packaging needs


Model WDSL
Maximum Machine Speed 310 m/min
Laminating Speed

(Must depend on relevant laminating condition, such as material and laminating thickness)

300 m/min
Laminating Width 1000mm / 1200 mm
Material Diameter Ø600 mm / Ø800 mm

PET, CPP, PVC,OPP, PP, PE, Nylon, Aluminum Foil, Paper
