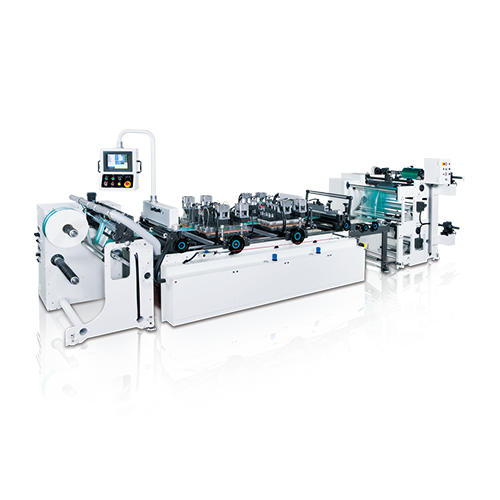

Side-Seal/ Gusset Tube Making Machine(Web to Reels)-AMM-RU Series

Classification : Bag Making Machine
Country: Taiwan
Phone: 886-4-24832477
Fax: 886-4-24830852
Contact Person: Angela Chi
Inquiry Now
  • Sealable plastic film / paper or tyvec.
  • The unwind section is the same as the AMM-DS.
  • AMM-RU can make two kinds of bag-tubes: side-seal-tube and Gusset side-seal-tube.
  • Side sealed tube can made by 6-lanes operation within maximum parent-web width.
  • Gusset side sealed tube can be made by 1-lane operation within maximum parent-web width.
  • Equipped with automatic lift-up mechanism to lift up the upper sealing stands / bars to avoid overheating the material when the machine stops.

Model No.


Max. Parent Web Width

800 mm

Max. Parent Web Diameter

700 mm

Unwind Core Inner Diameter


Bag-Tube Width Range

50 ~ 600 mm

Bag-Tube Width Length

200 mm

Max. Gusset Depth

50 mm (Each Side)

Max. Machine Speed

30 M / min.
