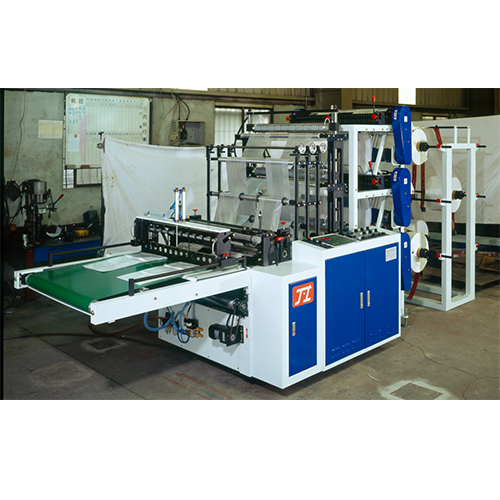

Knife-Cutting Bag Making Machine (GF-A812E-SV+C)

Classification : Bag Making Machine

JANDI'S INDUSTRIAL CO., LTD.

JANDI'S INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-5-220-0506
Fax: 886-5-220-1955
Contact Person: Mr. Huang

SINGLE-DECK MODEL

GF-A712E/SV
2 x 350mm W
1 x 700mm W

GF-A812E/SV
2 x 400 mm W
1 x 800 mm W

GF-A1012E/SV
2 x 500 mm W
1 x 1000 mm W

GF-A1212E/SV
2 x 600 mm W
1 x 1200 mm W

DOUBLE-DECK MODEL

Special design,
upon request

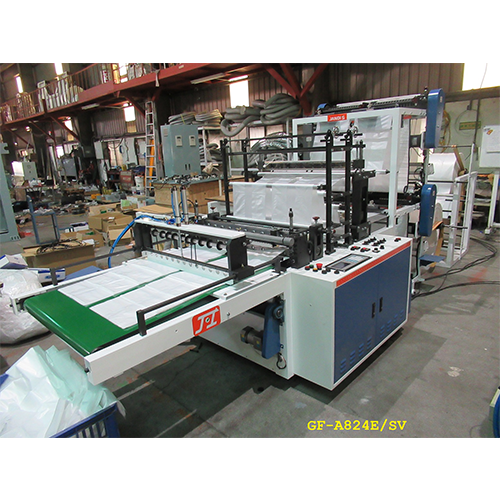

GF-A824E/SV
4 lines 400 mm W
2 line 800 mm W

GF-A826E/SV
6 line 250mm W
2 line 800mm W

GF-A1024E/SV
4 x 500 mm W
2 x 1000 mm W

GF-A1026E/SV
6 x 300 mm W
4 x 500 mm W
2 x 1000 mm W

GF-A1224E/SV
4 x 600 mm W
2 x 1200 mm W

GF-A1226E/SV
6 x 350 mm W
4 x 600 mm W
2 x 1200 mm W

TRIPLE-DECK MODEL

Special design,
upon request

GF-A836E/SV
6 x 400 mm W
3 x 800 mm W

Special design, upon request

Special design, upon request

4-DECK MODEL

Special design,
upon request

GF-A848E/SV
8 x 400 mm W
4 x 800 mm W

Special design, upon request

Special design, upon request

CUTTING WIDTH

750 mm

850 mm

1050 mm

1250 mm

CUTTING LENGTH

1200 mm

1200 mm

1500 mm

2000 mm

FILM THICKNESS

0.01 - 0.1 mm

REAR FEEDER

CONTROLLED BY FEEDING SENSORS

SEALING KNIFE

1 SET, SINGLE SEALING LINE

CUTTING KINFE

1 SET

CONTROL PANEL

1 SET WITH HMI CONTROL

SERVO DRIVE

1 SET, YASKAWA / JAPAN

AUTO. STACKING

1 SET

OPTIONS

HOLE PUNCH DEVICE, PRINTING SCANNER, AUTO. PUNCH UNIT

* Details are available with quotation, specifications could be changed upon request.

Knife Cutting / Bottom Sealing Bag ( Find machine from bag )
