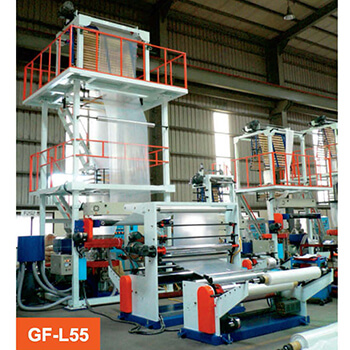

LD/LLDPE High Speed Inflation Machine (GF-L55)

Classification : Blow Film Extrusion Line

JANDI'S INDUSTRIAL CO., LTD.

JANDI'S INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-5-220-0506
Fax: 886-5-220-1955
Contact Person: Mr. Huang

MODEL

GF-L35

GF-L45

GF-L50

GF-L55

GF-L65

MATERIAL TO BE USED

 LD/LLDPE (Low Density & Linear Low Density Polyethylene)

MAX. FILM WIDTH

400 mm

600 mm

800 mm

1000 mm


S type:1200mm
E type:1500mm


EXTRUDER SIZE

35 mm

45 mm

50 mm

55 mm

65 mm

MOTOR+INVERTER

10 HP

20 HP

30 HP

40 HP

60 HP

DIES

80 mm

120 mm

150 mm

200 mm


S type:250mm
E type:300mm


MAX.CAPACITY

25 KG/HR

40 KG/HR

60 KG/HR

90 KG/HR

140 KG/HR

CONTROL PANEL

INDEPENDENT TYPE SWITCH BOARD

AIR RING

1 SET, DUALLIP AIR RING

ROLLER WIDTH

500 mm

700 mm

900 mm

1100 mm


S type:1300mm
E type:1600mm


SURFACE WINDER

ONE STATION, MANUAL TYPE

OPTIONS


Auto Loader, Manual Screen Changer, Pressure Gauge, Die Rotating Unit, Corna,
HDPE Dies/Air ring, Flying Knife, 2nd Station Winder, Air Shaft, Air Chiller


* Details are available with quotation, specifications could be changed upon request.
