Name: Side Sealing Machine
Brand: MING JILEE ENTERPRISE CO., LTD.

Classification : Bag Converting Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

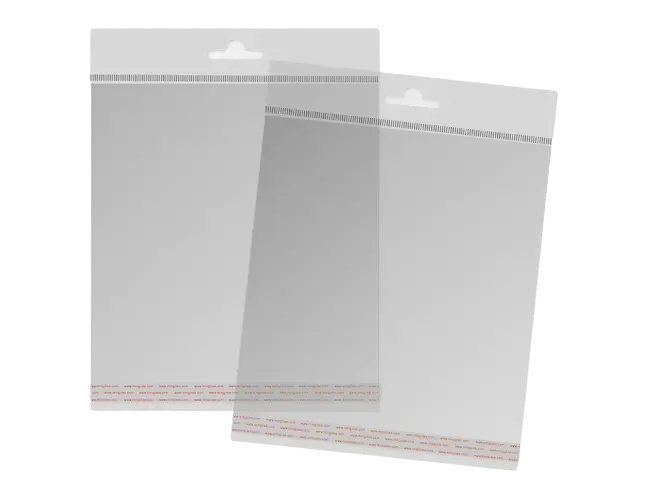

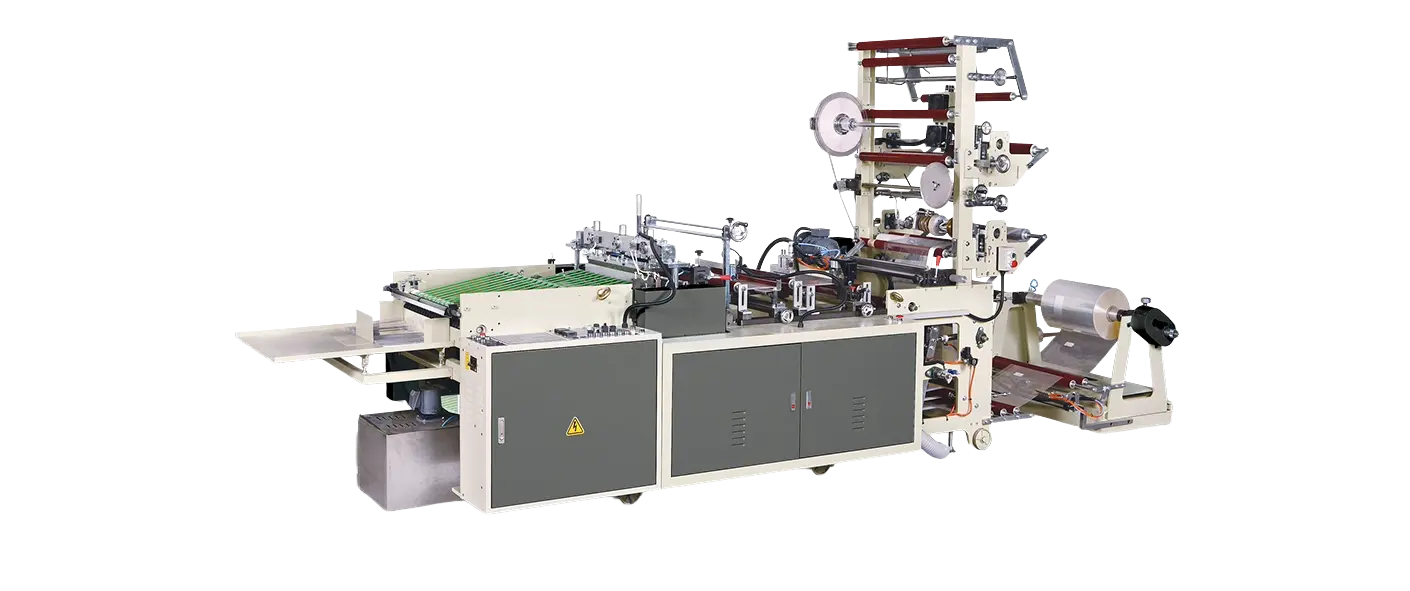

The MGA-06 side sealing machine forms bags by heat-sealing along both vertical sides of a flat film lay and cutting the bag free at the seal line in one stroke, producing hanging bags, retail merchandise bags, garment covers, and general-purpose PE and PP packaging. It's available in three width models — MGA-06-500, MGA-06-700, and MGA-06-800 — running PP, PE, and BOPP film.

Bag size is controlled by servo motor, and a mark sensor keeps printed material in register. A colorful touch panel gives operators a friendly interface for adjusting production, and optional add-ons — bottom sealing knife, handle punching, wicket hot sealing station, and ultrasonic hanging system — extend the machine to a wider range of bag types.

Model	MGA-06-500	MGA-06-700	MGA-06-800
Feed material	PP, PE & BOPP	PP, PE & BOPP	PP, PE & BOPP
Single layer film thickness	0.015 - 0.1 mm	0.015 - 0.1 mm	0.015 - 0.1 mm
Effective feeding width	75 - 450 mm	75 - 650 mm	75 - 750 mm
Effective feeding length	650 mm	650 mm	650 mm
Output	50 - 150 pcs/min (Depend on the thickness of film)	50 - 150 pcs/min (Depend on the thickness of film)	50 - 150 pcs/min (Depend on the thickness of film)
Linear velocity	Max. 55 Meter/min	Max. 55 Meter/min	Max. 55 Meter/min
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
