Quotation Business Folder Making Machine

Classification : File Folder Making Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

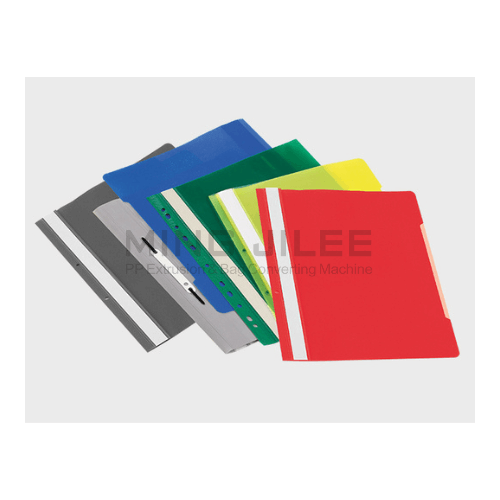

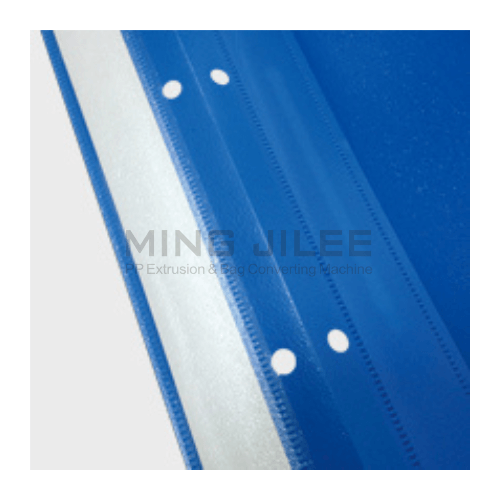

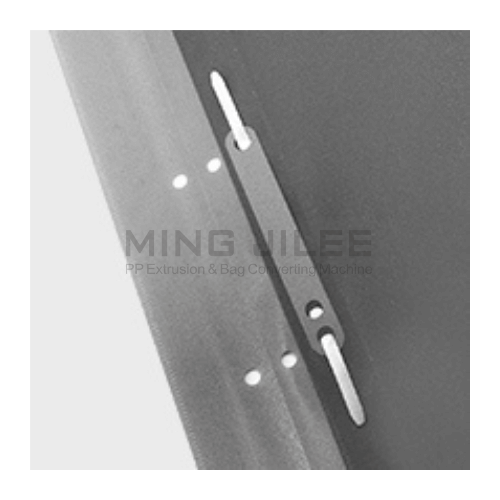

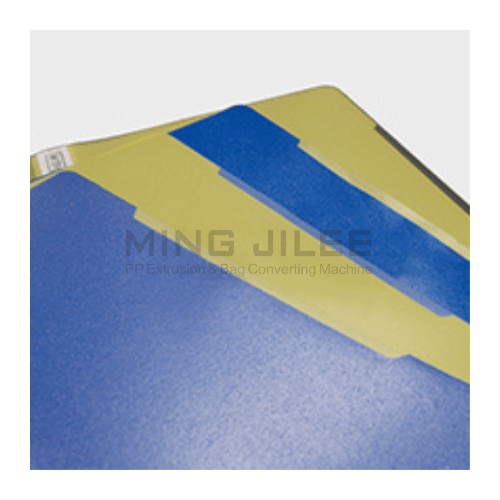

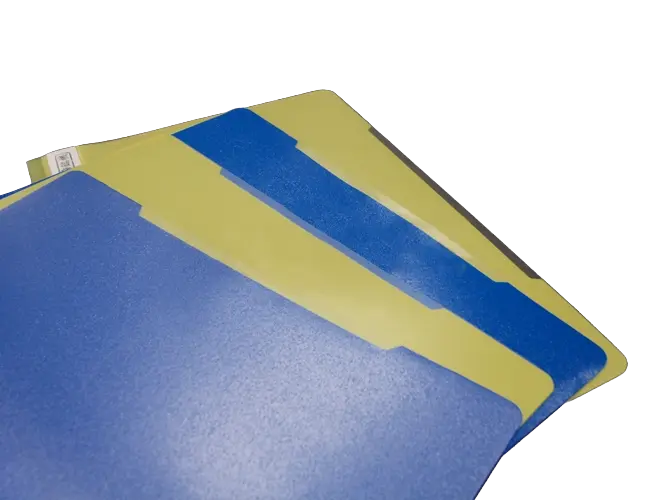

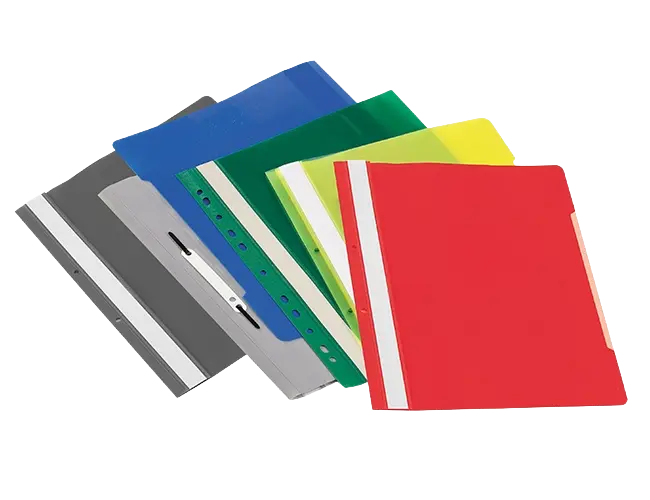

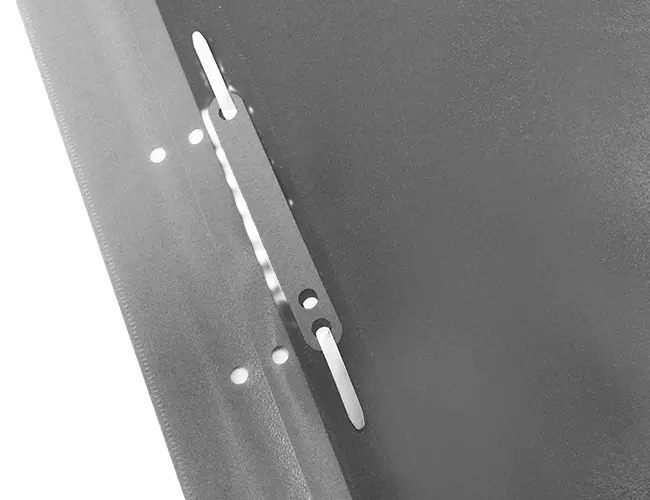

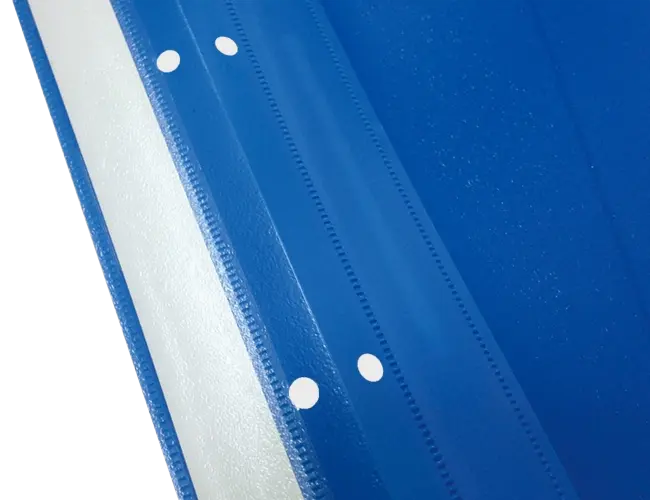

The MGA-41C-600 produces quotation folders, presentation folders, and flat files built up from multiple stacked rolls of PP film. The metal fastener and plastic compressor parts are formed with a die punching mold, and the fastener is attached by pneumatic pressure.

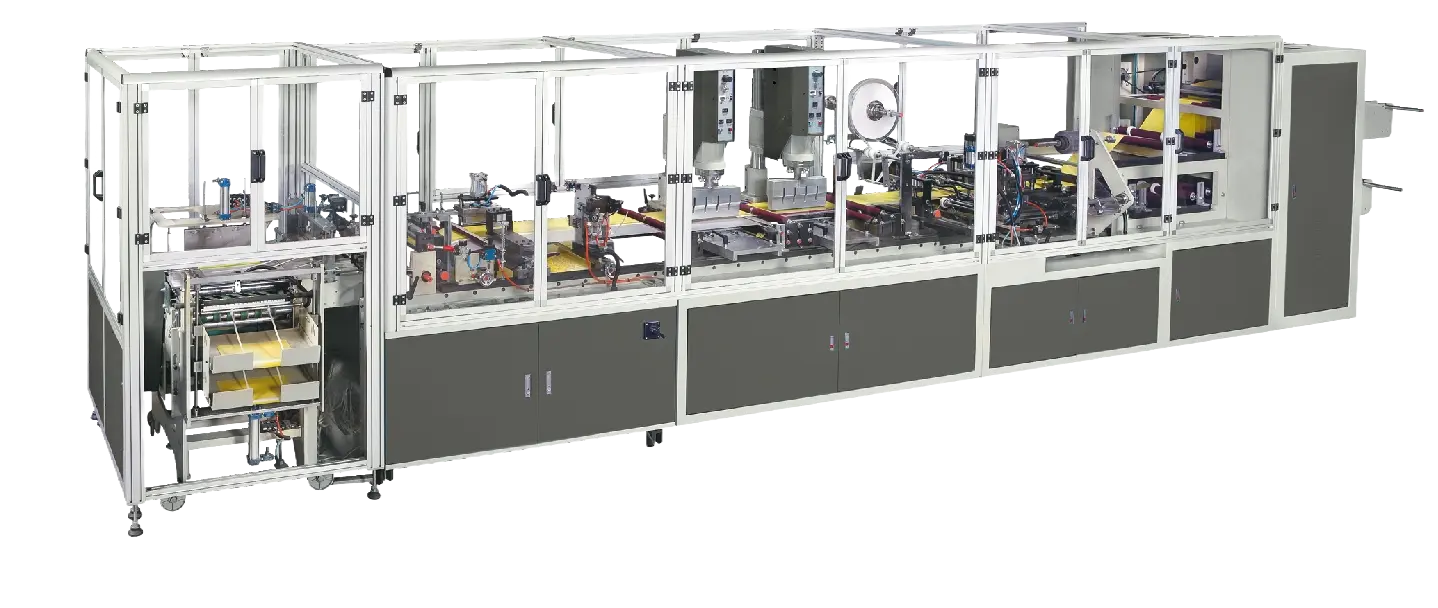

Manufacturing runs fully automatically through material feeding, fastener inserting, plastic compressor inserting, ultrasonic welding, and cutting. Each unwinding device carries an edge position controller to keep the feed material aligned, and precision, durable punching molds paired with a servo motor and digital computing unit for length control keep the punching position accurate and reduce breakdowns.

Model	MGA-41C-600
Feed material	PP, PVC
Effective size	A4
Effective unwinding diameter	500 mm
Effective thickness	0.08 - 0.2 mm
Output	30 - 45 pcs/min
Machine dimension	8,400 (L) × 2,550 (W) × 2,300 (H) mm
Machine weight	4,900 kg
Required power	16 kw
Optional Equipment:	(1) 3'' air shaft of unwinding : 3 (2) Barcode printing with mark sensor (effective printing length: 65 mm) : 1 (3) Mark sensor (SICK) : 1 (4) In-line folding device(after cutting) : 1 (5) Precise edge punching mold : 1 (6) Precise 4 holes punching mold : 1 (7) Hot stamping device (20 × 50 mm2) : 1 (8) A5 welding mold : 2 pcs
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
