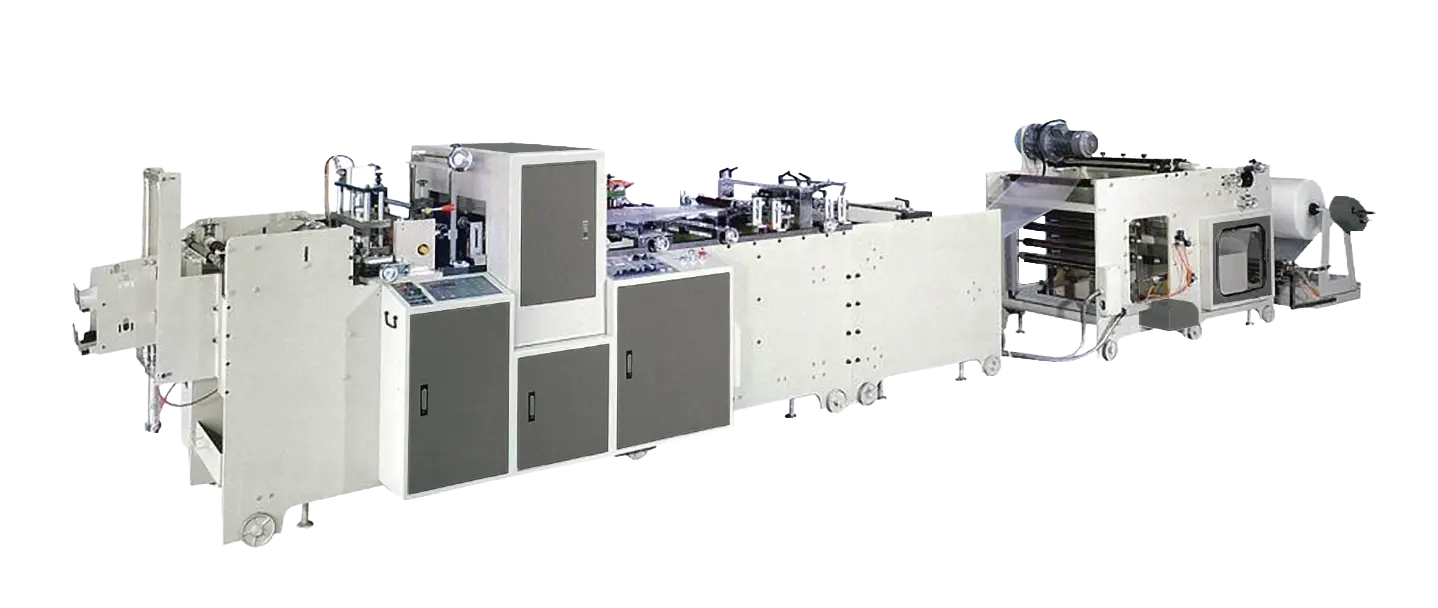

- This machine uses automatic servo motor for computer digital length control which is ease of operation, consistent product specification, strong and firm seal, nice external quality look.
- In the process of manufacturing, form the very beginning of the whole roll raw material to automatic edge lining, edge modification, opposite folding, gold stamping, punching, printing, ultrasonic sealing, cutting, auto counting, etc., all are completed automatically. There is no manpower required to enable to increase production capacity, save production cost, and upgrade the competing ability.
- This machine may choose to use all kinds of precise and durable punching mold to ensure low breakdown rate. Besides, it matches high technology electronic control to make the punching position very precise, not easy to run off.
- This machine uses high quality, high efficient spare parts to match all kinds of control and monitor systems. This will enable the machine to automatic stop if there is any problem happened in the process of operation. Also, it will warn with alarm to avoid wasting raw material and protect the machine.
- Major products: E-310, E-355 Optional products: Q-310, Q-355, INDEX etc.,
||PP in roll form|
|Available size||A4, FC (A5 required extra cutting mold)|
|Single layer film thickness||0.12 - 0.25 mm|
|Output||70 - 120 pcs/min|
|Machine dimension||8,430 (L) × 1,270 (W) × 2,100 (H) mm|
|Machine weight||2,450 kg|
|Required power||4.5 kw|
(1) Electronic E.P.C : 1
(2) 3″ air shaft of unwinding : 1
(3) Q-310 function : 1
(4) In-line auto packaging system : 1
|Remarks||As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.|
