Name: Fully Auto. Mylar Index Divider Machine with Packing System
Brand: MING JILEE ENTERPRISE CO., LTD.

Fully Auto. Mylar Index Divider Machine with Packing System

Classification : File Folder Making Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

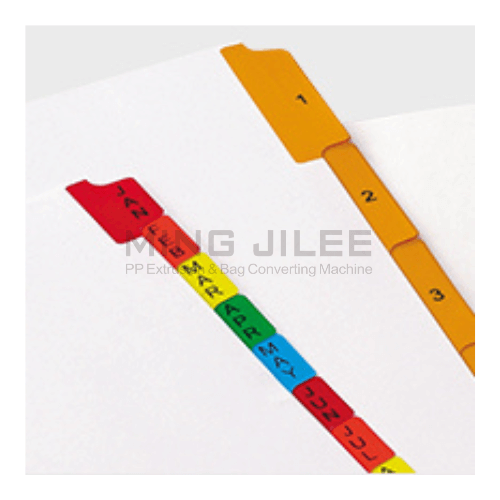

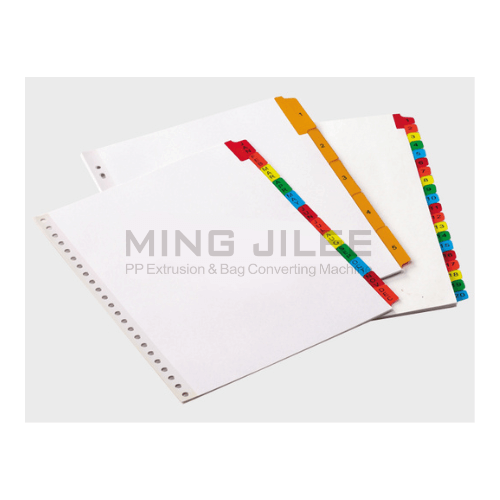

The MGA-56MP-700 is a fully automatic Mylar index divider machine with an integrated packing system, processing paper, PVC, or PP in roll form into A4 or A3 index dividers, including multi-color Mylar dividers. Multi-color printing film works with servo motor digital computer control to achieve automatic color-dividing, with the full set finishing in one pass including auto packing.

An auto E.P.C., edge trimming device, first-sheet and tap hot stamping, changeable punching tool, and auto pamphlet inserting unit run alongside automatic edge lining, edge modification, gold stamping, punching, cutting, auto-packaging, and auto counting in a single automatic sequence. Precise, durable punching molds and high-technology electronic control keep the punching position accurate, while the control and monitor system stops the machine automatically with an alarm if a problem occurs.

Model	MGA-56MP-700
Feed material	Paper, PVC, PP
Effective cutting width	150 - 364 mm
Effective cutting lenght	150 - 295 mm
Single layer film thickness	0.06 - 0.20 mm
Output	(1) Mylar divider : 15 - 30 pcs/min (2) Index divider : 50 -100 pcs/min
Machine dimension	11,800 (L) × 4,650 (W) × 1,800 (H) mm
Net weight	4,660 kg
Required power	12 kw
Optional equipment	(1) Printing wheels ( Depend on client’s request ) :1 pc (2) Thermal edge laminating unit : 1
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
