Without replace your old hopper dryer, use this new dryer to dry faster with better quality and to upgrade production more efficiently.
1. Wide application. Suit to numerous materials such as PC, PMMA, PA46, PPS, NYLON and some PET/PETG.
2. Save energy, cut carbon.

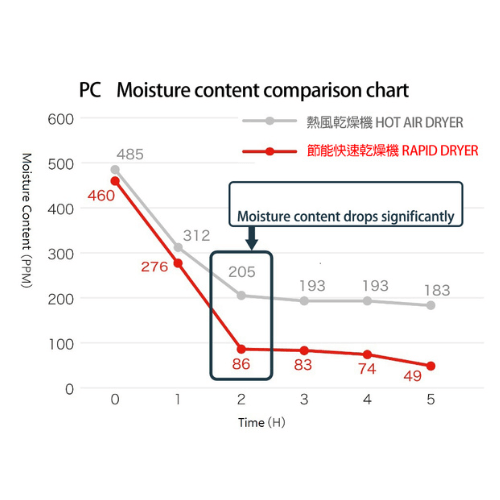

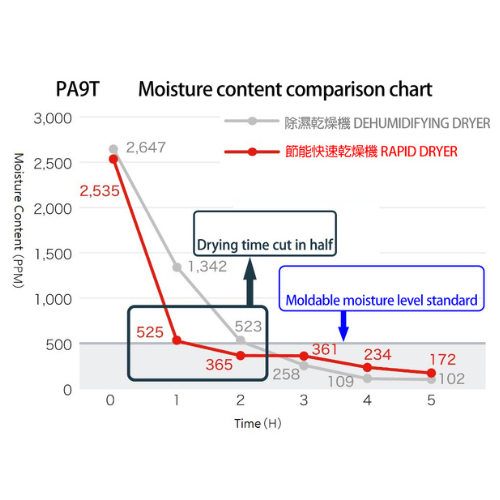

a. Up to 50% shorter drying time compared to conventional dehumidifying dryers. The Rapid Dryer uses its proprietary static pressure technology to deliver stable hot airflow and improve heat transfer efficiency, significantly shortening drying time.
b. Reduces electricity costs by up to 40% compared to conventional dehumidifying dryers. The Rapid Dryer eliminates the need for large compressors or heaters required by conventional systems, significantly reducing electricity usage.
c. Innovative drying technology with extremely low consumable costs and no environmental issues from desiccant recycling. (molecular sieve)
3. Increase yield rate of output.
a. Moisture content can be reduced to 0.02% (depend on the initial moisture content of resin), improve the drying quality of resin, and lower defective products.
b. Eliminating gas circulation reduces molding defect rate from 50% to 0%. Conventional dehumidifying dryers recirculate gas generated from pellets, which leads to molding defects. The Rapid Dryer introduces external air under pressure and discharges the gas, preventing this issue. This reduces the defect rate from 50% to nearly 0%, solving a long-standing issue in the molding industry.
c. Eliminates streaks resembling fingerprints caused by extrusion molding. In extrusion molding of LED covers, fingerprint-like streaks often appear on the product surface when using traditional dryers. Switching to the Rapid Dryer completely eliminates these, improving appearance quality.
d. Other improvements: Fixes piano black surface defects in PMMA/ASA, Reduces white haze in PA materials, Decreases short shot occurrences in PBT materials, …etc.
4. Easy maintenance. Install with plug-in air filter and dust collector (oil collector) that you can unload easily to clean and replace parts.
5. Tech lead. Japan PAT. 3243622, Taiwan PAT. M648880, China PAT. 201821480669.5
RAPID DRYER | ||||||||||
Standred | IC LCD | Heater(kw) | Fan Motor(w) | Fan | Air Volume 50HZ 60HZ (m³/min) |
Approx. Weight(kg) |
Dimension(cm) (LxWxH) |
equip with hopper dryer |
Ref.IMM | |
RD-50 | RD-W-50 | 3.9 | 100 | 3'' | 3.13 | 3.71 | 65 | 39x87x86 | 50 kg | 80~100t |
RD-100 | RD-W-100 | 4.5 | 200 | 4'' | 6.6 | 7.6 | 95 | 42x93x105 | 100 kg | 125~350t |
RD-200 | RD-W-200 | 6 | 300 | 5'' | 12 | 13.6 | 135 | 48x101x130 | 200 kg | 350~600t |
RD-400 | RD-W-400 | 11 | 700 | 6'' | 21 | 25 | 195 | 52x120x126 | 400 kg | 600~1060t |
REMARKS
- Customized specifications are available upon your early inquiry.
- Total Power=Heater+Fan Motor , 1KW=1000W
- We reserve the right to change specifications without prior notice.
Reference Video: https://www.youtube.com/watch?v=FAnRIn-_Nds
