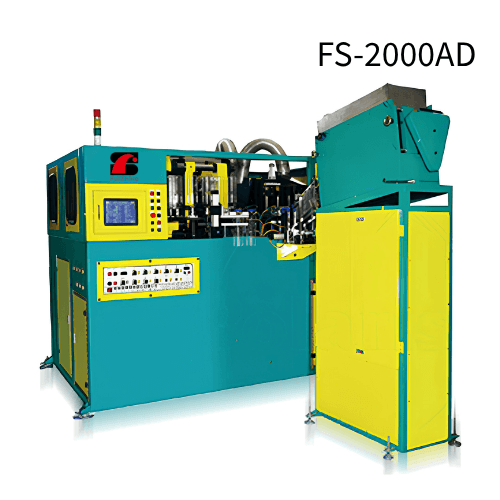

Automatic PET Stretch Blow Molding Machine - FS-2000AD

Classification : PET Stretch Bolw Molding Machine
Country: Taiwan
Phone: 886-4-22765071
Fax: 886-4-22765070
Contact Person: Ms. Huang
Inquiry Now
• Full Shine's PET Stretch Blow Molding Machine is an advanced machine for mass production.
• From feeding preform to finish blowing are fully automatic, mass production and labor cost be tremendously saved.
• This machine is also equipped with touch screen for the operator to adjust each function easily.
Model FS-2000AD FS-2000AS FS-4000HD
Production output(pcs/ per-hr) 1600~2400 600~1000 3200~4000
Number of caivties 2 1 4
Cavity stroke(mm) 114.3 304.8 114.3(76.2)
*Figures and data are subject to change without notice due to constant research and development.

EXPOSITION OF FULL SHINE'S MACHINE MODEL
SCREW DIAMETER(M/M) MACHINE SERIES MOLD HEAD(DIE HEAD) MOLD STATION PRODUCT TYPE
FS-40 (H) Horizontal (S) Single Mold Head (S) Single Mold Station (O) Original
FS-45 (P) Parallel (D) Double Mold Heads (D) Double Mold Stations (C) Two Colors
FS-55 (O) Standard / Oblique (T) Three Mold Heads (D) Two Layers
FS-65 (A) Pneumatic (F) Four Mold Heads (T) Three Layers
FS-75 (L) Frontal (E) Eight Mold Heads (F) Four Layers
FS-80 (I) Lateral (L) Six Layers
FS-90 (V) View Stripe
FS-100 (P) PC baby bottle
Example
FS-65 P D S D

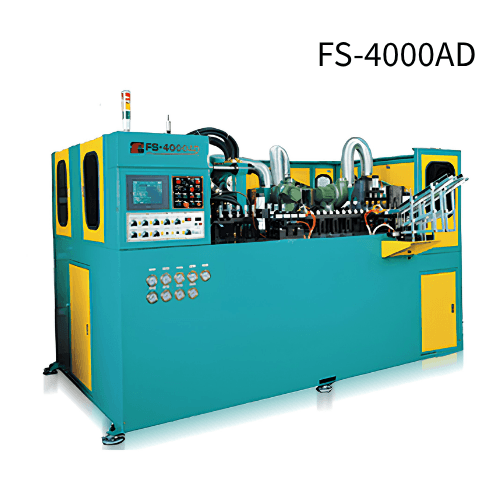

Model  FS-2000AD FS-2000AS FS-4000AD
1 Production output pcs/per-hr 1600~2400 600~1000 3200-4000
2 Number of cavities mm 2 1 4
3 Cavity stroke mm 114.3 304.8 114.3(76.2)
4 Clamping stroke mm 130 320 130
5 Stretching stroke mm 350 380 350
6 Clamping system   Hydraulic Toggle Hydraulic Toggle Hydraulic Toggle
7 Container volume ml 300~2000 7000 1500(300)
8 Neck diameter mm 15~45 55~125 Ø15~30
9 Max. container diameter mm 90 90 Ø90(Ø50)
10 Max. container height mm 350 335 320
11 Number of carriage   40 18 80
12 Number of heating panel   2 3 4
13 Total infrared heaters   40 72 64
14 Number of heating zones   12 10 24
15 Heating power KW 32 95 80
16 Max. heating power KW 40 115 96
17 Total power KW 45 135 402
18 Operating air pressure kg/cm2 5~8 5~8 5~8
19 Blowing air pressure kg/cm2 35 35 2400
20 Cooling capacity kcal/hr 4500 4500 35
21 Cooling water flow rate liter/hr 3000 3000 4500
22 Cooling water temperature °C 7~13 7~13 7500
23 Operating pressure kg/cm2 5~7 5~7 5~7
24 h1 Overall height M 2.31 2.31 2.31
25 h2 Shield height M 2.13 2.13 2.13
26 L1 Overall length M 2.8 3.3 4.3
27 W1 Overall width M 1.8 1.8 2.2
28 Weight kg 4200 5200 6000
PHOTOS

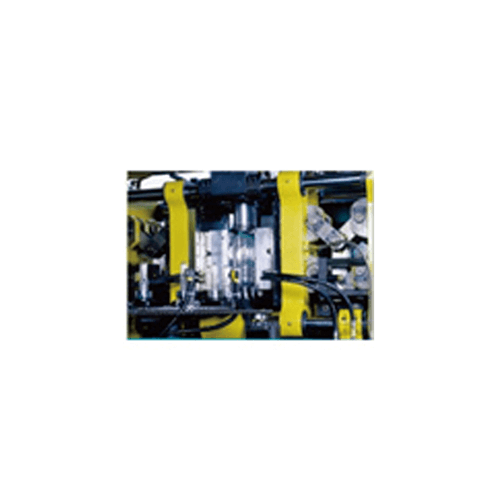

Mold Open/Close Function & Mold Station
PHOTOS

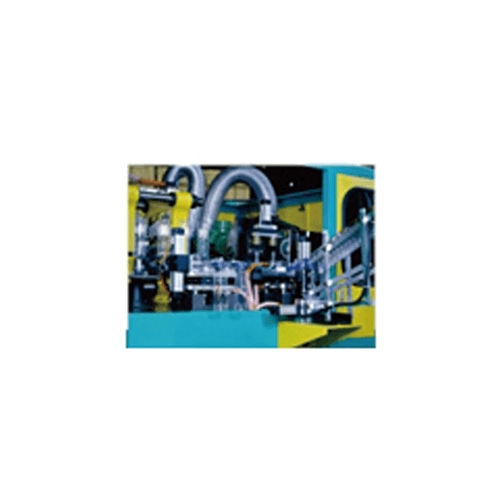

Robot Hands for Conveying Preforms and Finished PET Bottles
PHOTOS

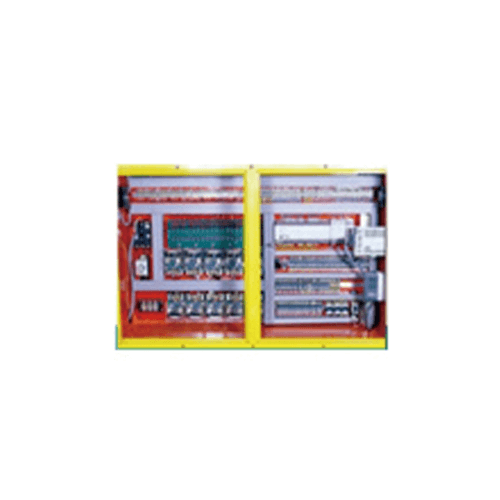

ELECTRONIC CONTROL SYSTEM
PHOTOS

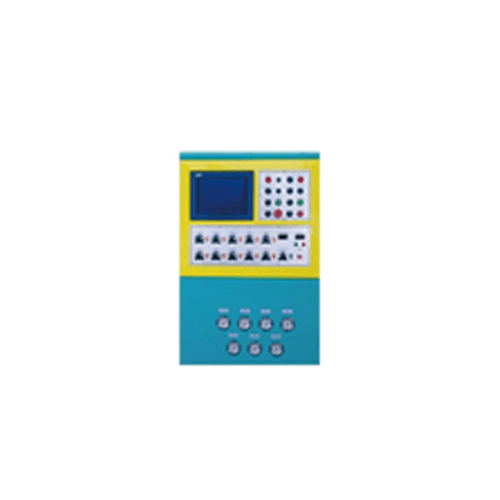

Touch Screen and Operative Panel
PHOTOS
Stretch Blow Molding Machine
PHOTOS
Preform Feeding System
