● vertical servo motor clamping system.

● Horizontal parting line injection system.

● Sevor motor and air pressure system.

● FUJI 7” full color TFT-LCD touch panel controller.

● 3 stages injection 2 stage holding pressure and 100 mold data can be saved.

● All-electic injection system, the most precise packaging quality.

● Dual protection of restart button and safty light curtains.

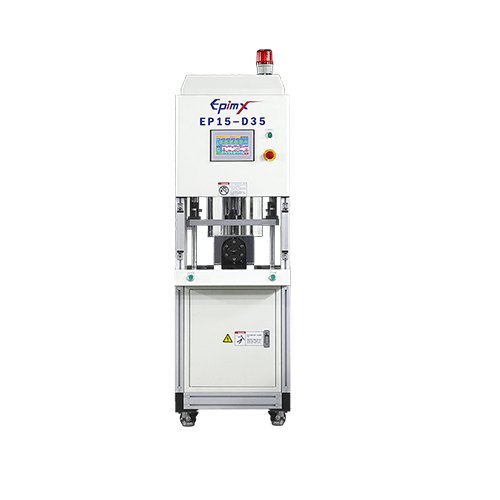

Model		EP15-D35
Injection Mode		Vertical clamping / Horizontal injection
Plunger Diameter	mm	35
Injection Volume	cm3	96
Injection Rate	cm3 / s	38.5
Injection Speed	mm/s	40
Injection Pressure	kgf / cm2	50
Nozzle Stroke	mm	120
Nozzle Contact Force	tonf	0.195
Nozzle Height	mm	65 ~ 150
Max. Clamping Force	KN/tonf	15 /1.53
Max. Mold Dimention	mm	360
Min. / Max Mold Thickness	mm	105 ~ 350
Platen dimension	mm	450 X 200
Ejector Force / Stroke	tonf / mm	0.12 / 50
Heater Zone	set	N1 + H1 + T2
Heater Capacity	kw	4
Motor Capacity	kw	0.75
Electricity	vac	220 / 1 phase
Dimension	m (LxWxH)	1.3 X 0.55 X 1.74
Weight	Ton	0.5
