APPLICATION & MATERIALS
  • Sealable laminated film, thickness 40-150μ
MAIN DRIVE & FEEDING MOTOR
  • Main driving A.C. motor is controlled by inverter, provides high response and accuracy
FEEDING MOTOR
  • Equipped with feeding motor and position detector, which can provide stable tension for films before entering into bag making section
UNWIND SECTION
  • Horizontal unwinding structure makes loading and unloading convenient
BAG MAKING

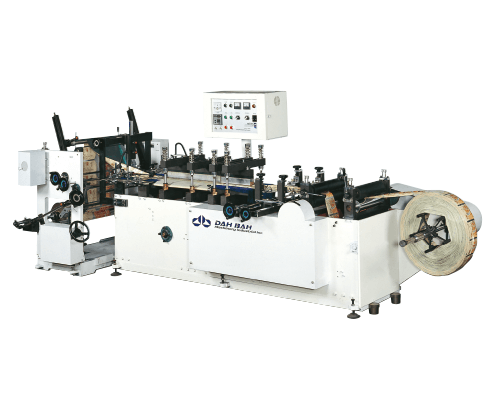

  • ACSV-P40 can make the center-seal and gusset tubes, which can be placed on the Auto Packaging Machine or sent to our Sealing & Cutting Machine to be cut into bags
  • Equipped with pre-heat system with roller type center sealing device. Prolonged center-sealing device provides double sealing. With cooling device, it can ensure the bag sealing quality . (ACSV-P40)
OPTIONAL ACCESSORIES
  • Unwind 3" airshaft
  • Pneumatic loading device (in unwind section)
  • Edge position control (EPC)
  • Automatic unwind tension controller
  • Paper strip feeding device
  • Paper core rewind device
  • Automatic rewind tension control system
  • The working speed depends on the material condition and bag size.
  • Due to machine development, above information maybe changed without notice.

ACSV-P Series

Model No. ACSV-30P ACSV-40P
MAX. PARENT WEB WIDTH 620 mm 820 mm
MAX. PARENT WEB DIAMETER 500 mm 500 mm
CENTER-SEAL TUBE WIDTH 50~300 mm 50~400 mm
GUSSET-SEAL TUBE WIDTH 50~200 mm 50~300 mm
MAX. GUSSET DEPTH 50 mm ( Each side ) 50 mm ( Each side )
MAX. REWINDING DIAMETER 800 mm 800 mm
MACHINE SPEED 27 M/min. 27 M/min.
INSTALLATION INFORMATION
(For standard specification)
NET WEIGHT 2500kg 3100kg
AREA REQUIRED L8735xW4582xH1620 L8895xW4759xH1606
POWER 380V/6.7KW/19A 380V/7KW/20A
WATER 15-20℃ 15-20℃
AIR 6kg/cm3 6kg/cm3
