Redstone Series of 50T-800T Injection Molding Robot Arm

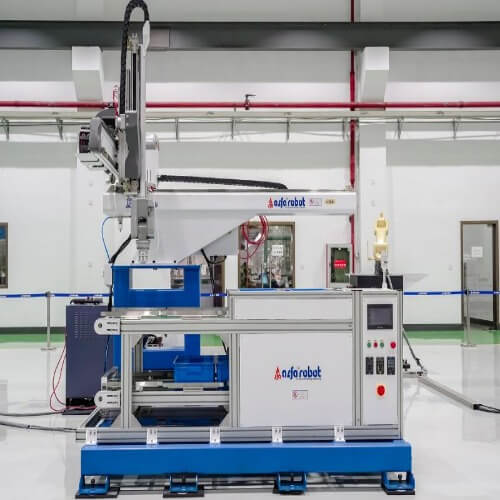

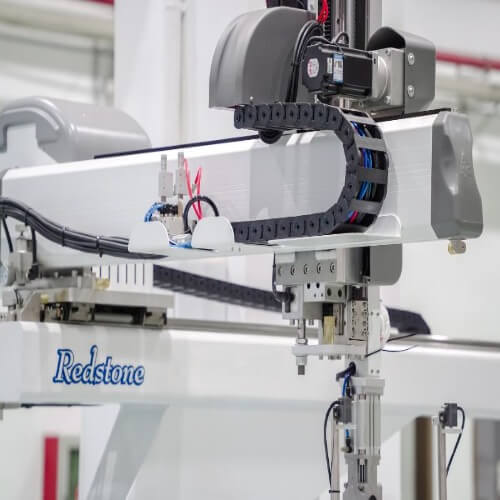

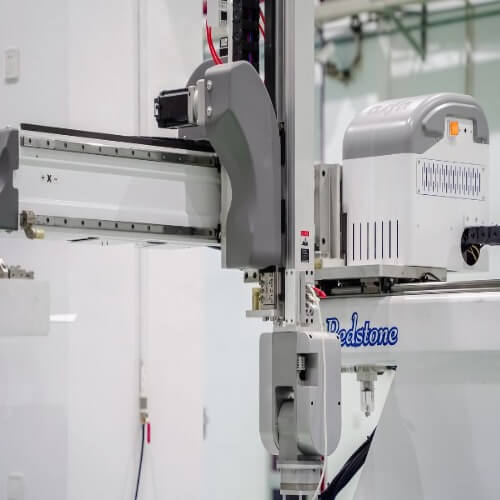

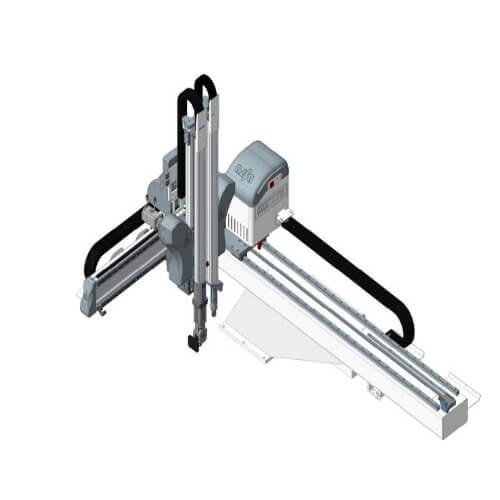

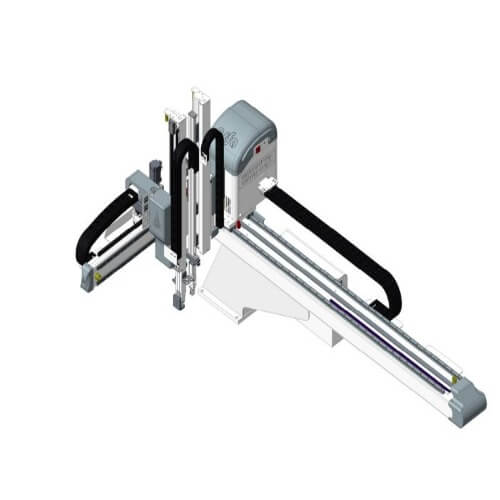

The Redstone series of robotic arms are used for various types of horizontal plastic injection molding machines of 50-800 tons. There are 3-axis and 5-axis AC servo drives. The product arm robot is for taking out products and runners. The vertical arm structures are single stage and telescopic stage, runner arm can be added to take out runner. The Redstone series of robots are suitable for high-precision, high-speed removal and embedding/insert, with fast response and high positioning accuracy for quick removal for single cavity and multiple cavities and embedding/insert applications.

R□□□□ID/IS/WD/WS/S3/S5
Model: 700/900/1100/1300/1500
W: Telescopic stage
I: Single stage
D: Product arm+runner arm
S: single arm (Product arm)
S3: Three-axis servo (Traverse-Y±/Vertical-Z±/Crosswise-X±)
S5: Five-axis servo (Traverse-Y±/Vertical-Z±/Crosswise-X±/A axis/B axis/C axis as optional)

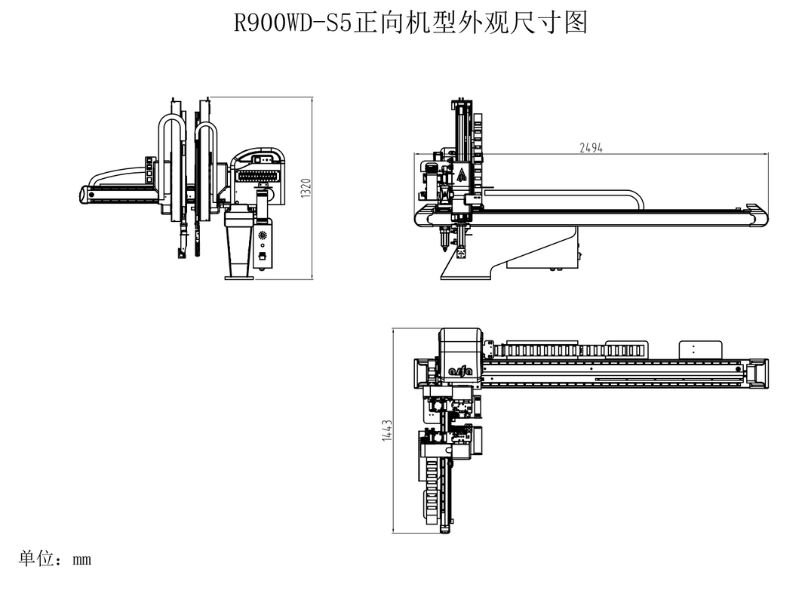

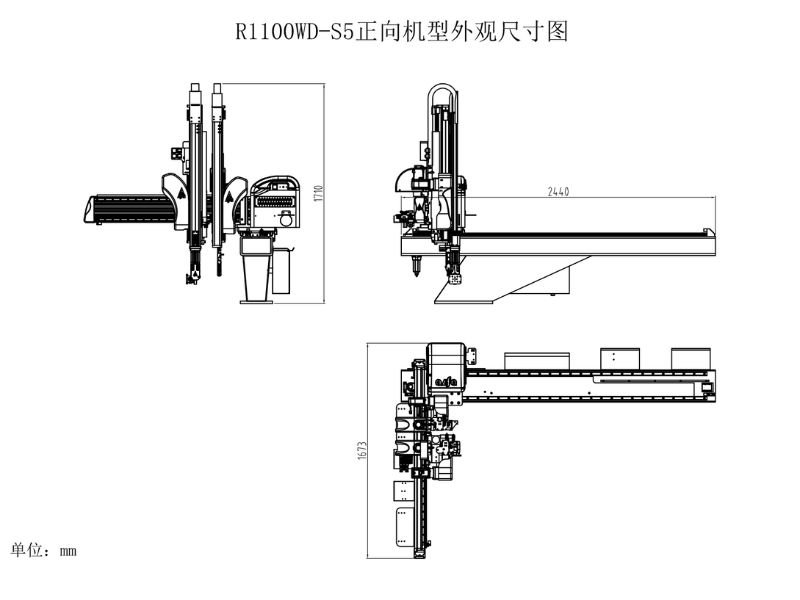

Main specifications:

Redstone series is also a kind of top entry IML robot that is able to place the labels inside the mold and take out the finished products precisely. It is different from the side entry IML robot, the robotic arm goes into the mould from the top, which would not require much space around the machine.

Model	R700 IS/ID/WS/WD-S3/S5	R900 IS/ID/WD-S3/S5	R1100 WS/WD-S3/S5	R1300 WS/WD-S3/S5	R1500 WS/WD-S3/S5
Power supply capacity (KVA)	1.5	2.4	2.3/3.2	2.3/3.2	2.3/3.2
Applicable molding machine (ton)	50-200	200-350	300-450	450-550	550-800
Traverse stroke(mm)	1500(1800)	1500(1800)	1800(2000)	2000	2400
Crosswise stroke (mm)	I/W:S3:P:540/520 I/W:S5:P:360/290 R:360/290	I/W:S3:P:720/700 I/W:S5:P:540/470 R:540/470	S3:P:800 S5:P:600 R:600	S3:P:800 S5:P:600 R:600	S3:P:1000 S5:P:750 R:750
Vertical stroke (mm)	700	900	1100	1300	1500
Max loading (Kg)	3	5	12	10	10
Dry take out time (sec)	1.2	1.6	1.8	2.2/2.4	2.3/2.7
Dry cycle time (sec)	4.7	5.7	6.5	8.2/8.4	9.0/9.4
Air consumption (NI/cycle)	4	4	7	11	13
Net weight (Kg)	210-230	250-300	440-460	400-450	480-540

Redstone Series General Specifications

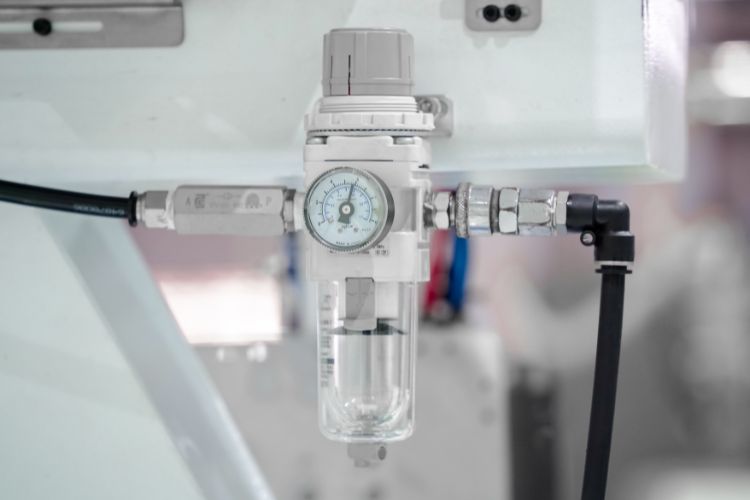

power supply Power Source	working pressure Working Pressure	Maximum allowable air pressure Max.Allowed Pressure	Drive mode Drive System	Swivel
1ΦAC220V±20V 50/60HZ	5Kgf/cm ² 0.49Mpa	8Kgf/cm ² 0.8Mpa	S5-AC Servo Motor S3-AC Servo Motor	90° Fixed Pneumatic

Air pressure scissors: Air pressure scissors can be installed for runner cutting.

Photoelectric inspection on finished products: The sensor can be installed at the conveyor. Place the finished product on the conveyor to avoid hitting among products.

Tricolor light: Installed with tricolor light, the user can easily check the robot operating state from a distance to workshop management. It can also distinguish the condition of the robots in auto, manual, or failure status.

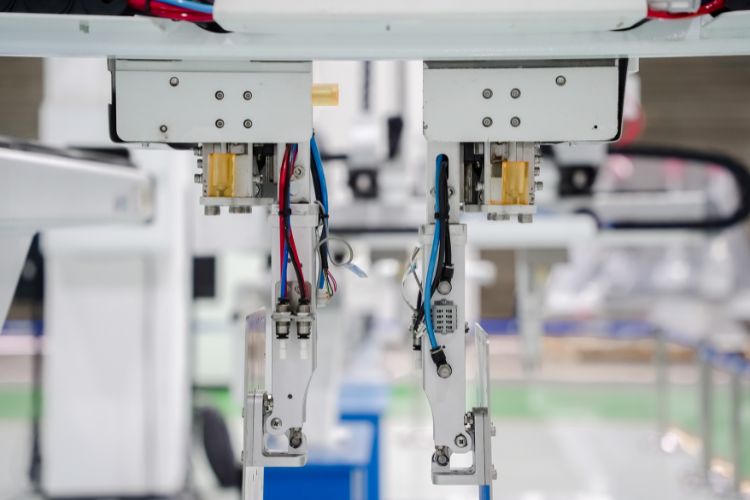

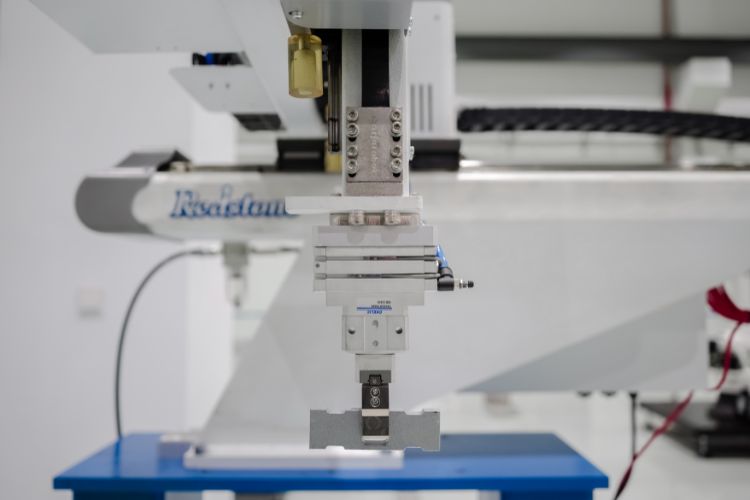

Quick EOAT changing: To reallize the quick separation of the EOAT and the robot. It’s simple and can save EOAT changing time.

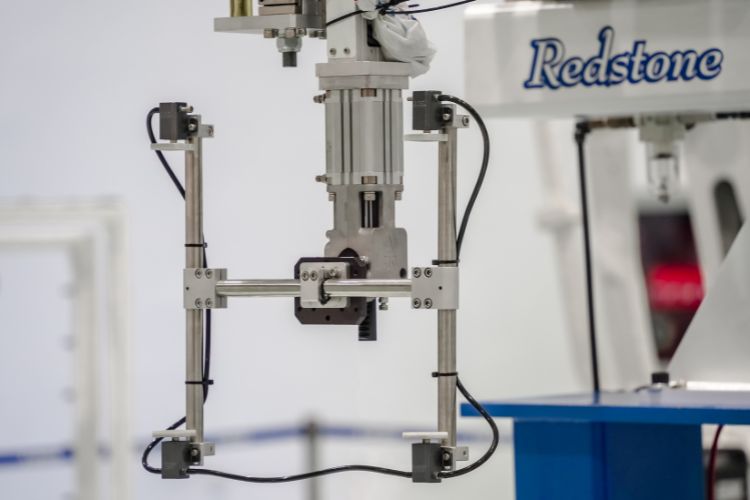

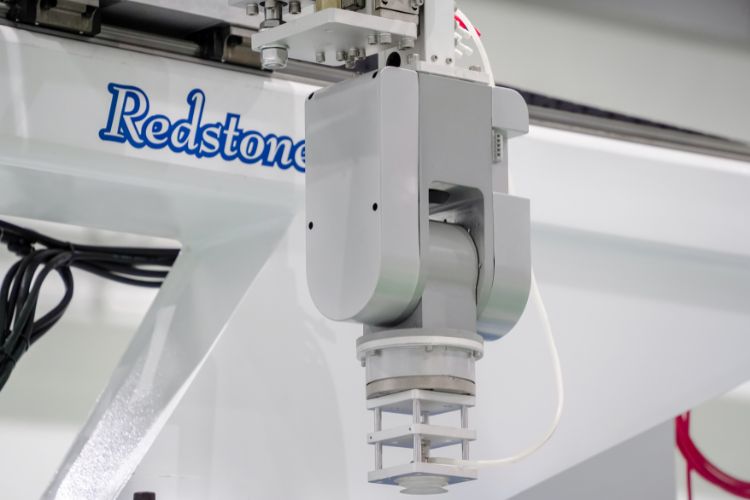

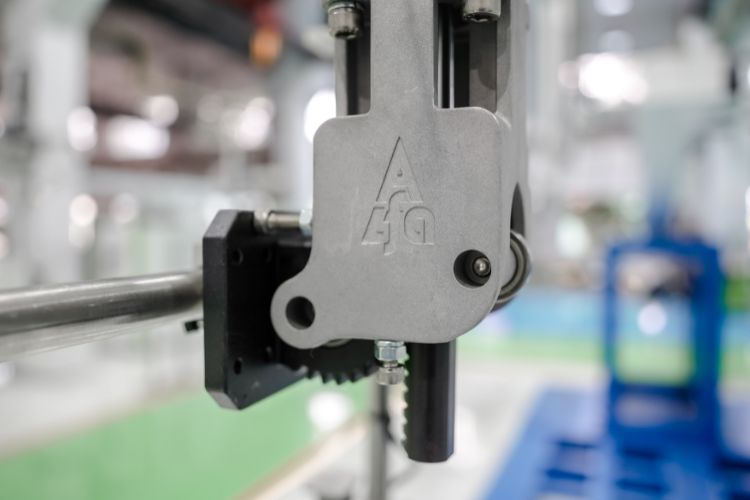

A&C axis servo driven: The end of arm rotary mechanism can be driven by AC servo motor with multiple angle and gestures.

Middle plate inspection: Position of the middle plate should be checked after the mold opened the end position to avoid the runner arm from hitting middle platen.

Lubrication function: Manual central lubrication or auto lubrication can be equipped. For auto lubrication, when robot running times achieve a setting value, it will lubricate automatically.
