Servo Robot For Mobile Frame Loading
Classification : Auxiliary Machinery
ALFA INDUSTRIAL GROUP

Country: Taiwan
Phone: 886-2-22053863 / 86-769-83120300
Fax: 886-2-22053853 / 86-769-88602226
Contact Person: Mr. Arno Chang
-
This robot is used for automatic embedding feeding device for steel sheets for I.M.M, which solves the problem of manual insert(low efficiency, high scrap rate and high production cost).
-
Using magnetic sensor to positioning with 1 axis servo control system make the insert more accurate.
- HMI interface is easy to operate.
-
Buffer deceleration is more stable and precise.
- Stroke and width of equipment can be customized.
General Specification
Power source |
(KVA)Power Supply |
Working Pressure |
Max.Allowable pressure |
Driven way |
AC220V±20V |
0.75 |
0.5KGF |
0.8KGF |
XY :ACSERVO MOTOR |
Main Specification
Model |
YZ06JR01 |
YZ06JR02 |
Suitable for I.M.M. |
50-350 |
50-350 |
Stroke |
600 |
- |
Auto plate-changing |
Yes |
No |

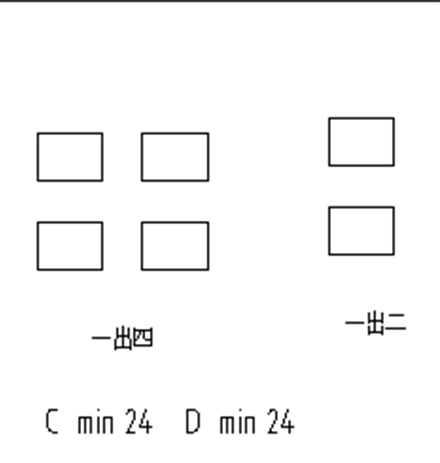

Suitable configuration type |
|
|
