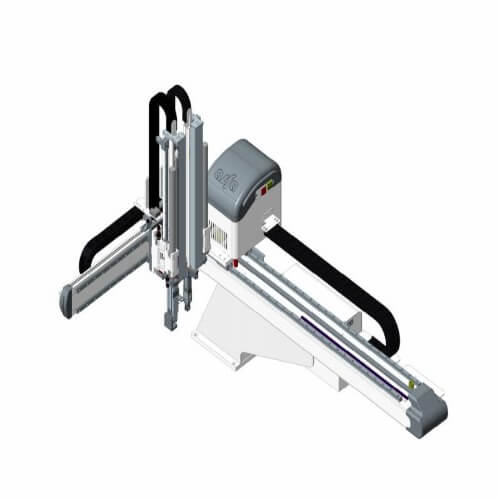

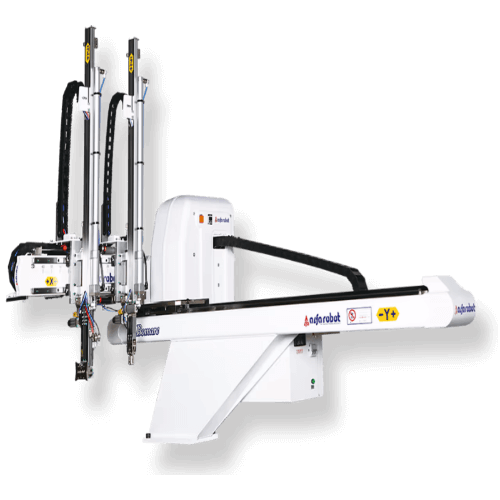

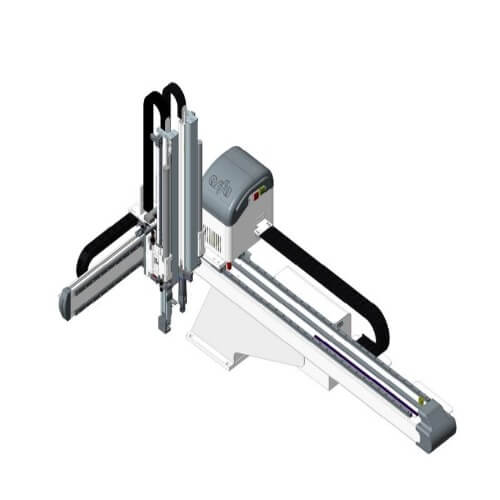

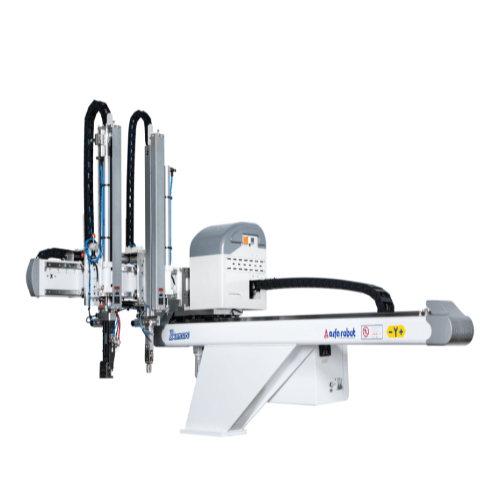

Servo Driven Beam Robots - Bomarc Economical Series

Classification : Injection Robot

ALFA INDUSTRIAL GROUP

ALFA INDUSTRIAL GROUP
Country: Taiwan
Phone: 886-2-22053863 / 86-769-83120300
Fax: 886-2-22053853 / 86-769-88602226
Contact Person: Mr. Arno Chang
B□□□□ID/IS/WD/WS
Model: 650/850/950
W : double cut
I : single cut
D: arms (finished arm + material arm)
S : one arm (finished arm)

General specifications

power supply

working pressure

Maximum allowable air pressure

Drive mode

Side pose

1ΦAC220V±20V
50/60HZ

5Kgf/cm 2
0.49Mpa

8Kgf/cm 2
0.8Mpa

Y: AC Servo Motr
X, Z: Pneumatic Cylinder

90° Fixed
Pneumatic





Main specifications

model

BE650 ID/IS/WD/WS

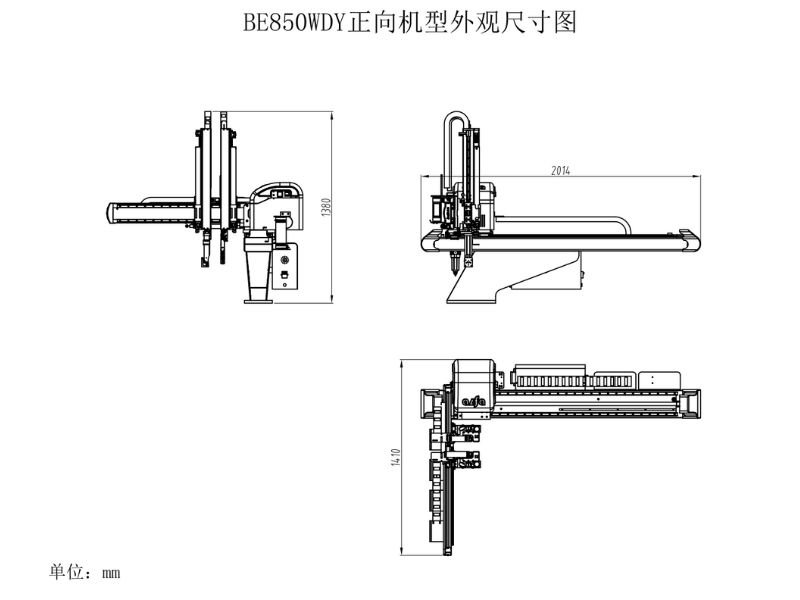

BE850 ID/IS/WD/WS

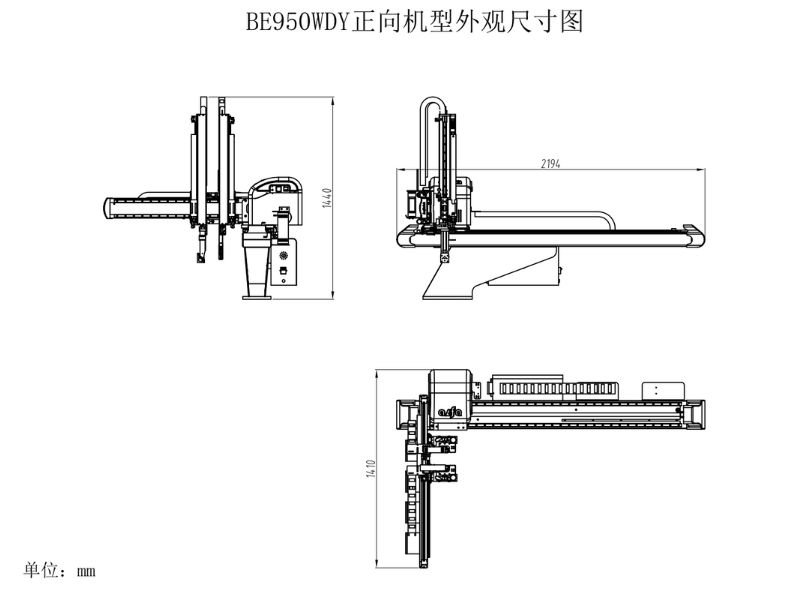

BE950 WD/WS

Power supply capacity (KVA)

1.0

1.0

1.0

Applicable molding machine (ton)

50-160

160-300

250-350

Horizontal travel (mm)

1300 (1500)

1300 (1500)

1500 (1700)

Horizontal drive

AC servo motor drive

AC servo motor drive

AC servo motor drive

Drawing stroke (mm)

P: 200 R: 100

P: 300 R: 100

P: 300 R: 100

Up and down stroke (mm)

650 (850)

850

950

Maximum load (Kg)

3

3

3

Take time (sec)

2.3

2.6

2.9

Full lap time (sec)

8

9

10

Air consumption (NI/cycle)

12

14

14

Net weight (Kg)

150-210

180-260

180-260

* Due to continuous improvement of the model, the appearance and specifications are subject to change without notice.
