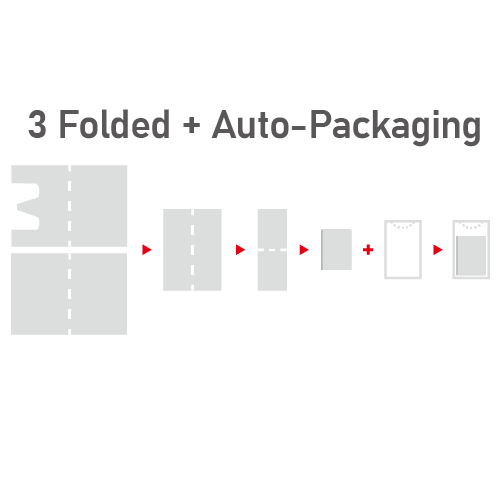

Fully Automatic 3 Folded T-shirt Bag & Garbage Making Machine with Auto-Packaging Unit-STB-28-3F-OS+FAP

Classification : Garbage Bag & Industrial Bag Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
Inquiry Now
  • Computer control over the entire process
  • From film roll to final pruduct, one process flow
  • Servo motor, as standard attachment, makes it easy easy to adjust the bag length and production speed
  • Automatically stop when running out of film / color scanning error
  • Magnetic roller rotating perforation
MODEL STB - 28 - 3F-OS+FAP
Production Size Length : 500 ~ 1000 mm
Width : 350 ~ 660 mm
Thickness : 12 ~ 35 um
Production Speed
50 ~ 110 pcs / min (Bottom Bag)

40 ~ 80 pcs / min (T-shirt Bag)

Packaging Speed 5 packs / min (max)
Film Roll Size

Ø 900 x 660 mm (Mother Roll)

Ø 500 x 250 mm (Outer Bag)

Power 220 V, 3 Phases,  50 / 60 HZ, 30 KVA
Heat 4.4 KW
Dimension

L : 11000 mm

W : 1900 mm

H : 2700 mm

Air Compressor 6 HP ( not included )
