Classification : GLOVE MAKING MACHINES
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
- Computer control over the entire process

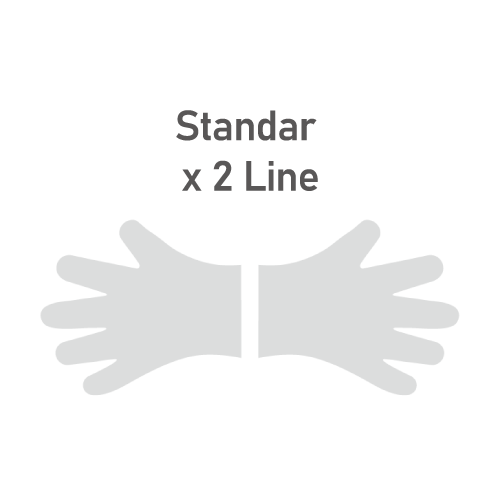

- Jumbo film roll to final pruduct ( 2 line output ) , one process flow
- Automatically stop when running out of film / film feeding blocks or jam
- Automatically tear off the waste edge film
- Melting cut-off ( no cutting knife ) system save time and manpower on adjusting knife
- Capable to produce 3 types in same machine
| Model | SSD-800-HGL |
| Production Size | Lengh：350 mm (max) Widht：350 mm (max) Thickness：10 - 25 um |
| Power | 220Ｖ, 3 Phases, 50/60 HZ, 20 KVA |
| Production Speed | 150 pcs / min x 2 line |
| Heater | 9 KW |
| Film Roll size | Ø 1000 x 720 mm |
| Dimension (L x W x H) | 8500 x 1700 x 1800 mm |
| Air Compressor | 6 HP（not included） |
