Fully Automatic High Speed 2Lines T-shirt Bag Making Machine for In-line Auto Packaging system-ST-99-AP

Classification : T-shirt Bag Making Machines

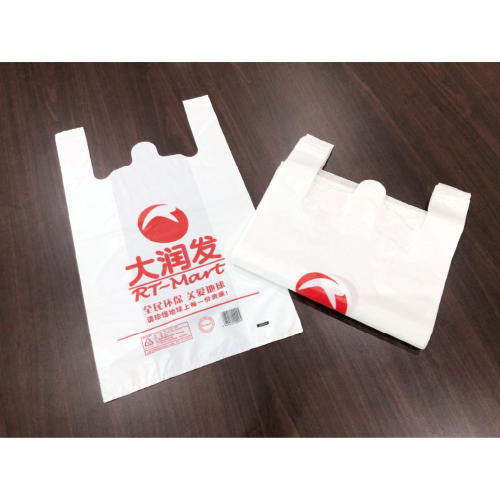

Applications: Packaging T-shirt Bags

COSMO MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-2-86782865~8 (214)

Fax: 886-2-86782869

Contact Person: Mr. Yarzar

Video Inquiry Now

2 line T-shirt bag making machine
High production efficiency to save manpower and time
From film roll to final bag, one process flow
It's easy to adjust the bag length, production speed, stacks on the interface
Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment
Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
Automatically error proof system
With in-line auto packaging system

MODEL	ST - 99 - AP
Production Size	Length : 350 ~ 650 mm Width : 160 ~ 365 mm Thickness : 8 ~ 50 um
Production Speed	180 ~ 300 pcs / min / line
Film Roll Size	Ø 900 x 365 mm
Power	220 V, 3 Phases, 50 / 60 HZ, 20 KVA
Heat	4.5 KW
Dimension	L : 8450 mm W : 2650 mm H : 1750 mm
Air Compressor	10 HP ( not included )
