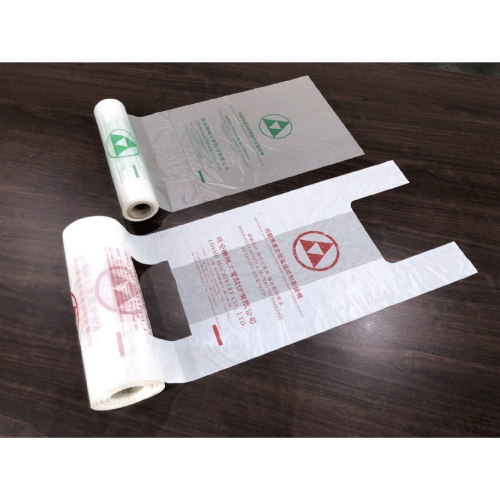

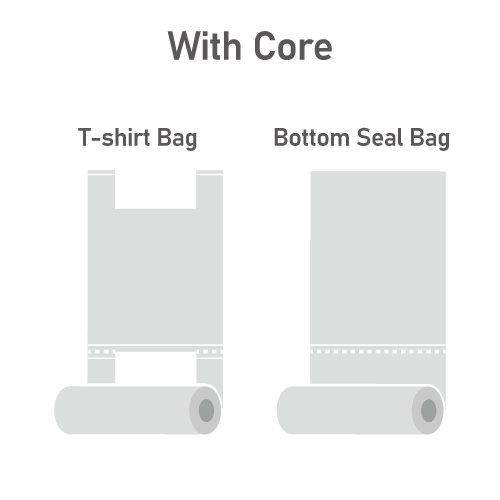

Fully Automatic High Speed With Core T-shirt Bag & Bottom Seal Bag on roll Making Machine with Slitting & Gusseting Unit-STBCR-40-G2+OS+2W

Classification : T-shirt Bag on Roll Making Machine
Country: Taiwan
Phone: 886-2-86782865
Fax: 886-2-86782869
Contact Person: Yarzar
Inquiry Now
  • Computer control over the entire process
  • From film roll to final pruduct, one process flow
  • Automatic film feeding, cordination free from tension adjustment
  • Oscillation film feeding system for stability and high out put
  • Automatically stop when running out of film / film feeding blocks or jam
  • Automatically core changing system
  • Punch system on magnetic roller
MODEL STBCR-40-G2+OS+2W STBCR-40-G2+OS
Production Size Length : 350 mm (min) Length : 350 mm (min)
Width : 180 ~330 mm Width : 180 ~330 mm
Thickness : 6 ~ 35 um Thickness : 6 ~ 35 um
Roll size : Ø 150 mm (max) Roll size : Ø 150 mm (max)
Core size : Ø 25 ~ 75 mm, thickness 3 mm (min) Core size : Ø 25 ~ 75 mm, thickness 3 mm (min)
Production Speed 300 pcs / min / line 200 pcs / min / line
Film Roll Size Ø 900 x 1200 mm Ø 900 x 1200 mm
Power 220 V, 3 Phases,  50 / 60 HZ, 30 KVA 220 V, 3 Phases,  50 / 60 HZ, 30 KVA
Heater 8 KW 4 KW
Dimension L : 1300 mm W : 2400 mm H : 2150 mm L : 1215 mm W : 2400 mm H : 2150 mm
Air Compressor 10 HP ( not included ) 10 HP ( not included )
