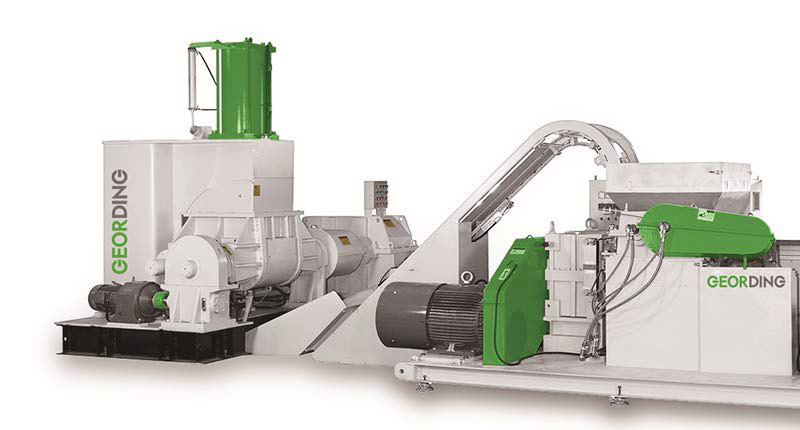

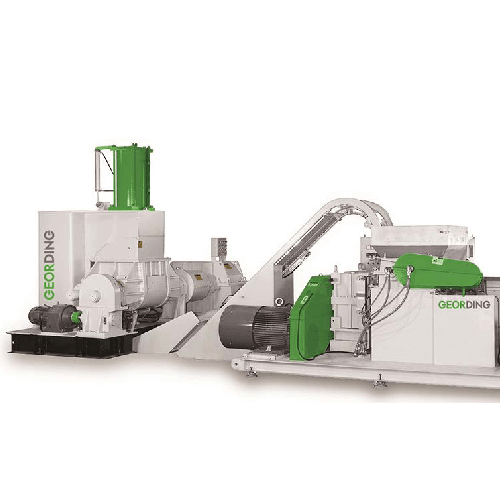

Twin-Cone High Speed Pelletizing Machine-Die-Face Cutting

Classification : Compounding Machine

GEOR-DING MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-26821888

Fax: 886-4-26819777

Contact Person: Jessica Liu

Video Inquiry Now

Process Rubber/Plastic mixed material, EVA, TPR, PVC, CaCO3, PVB, PU, TPU compounding, various kinds of masterbatches pelletizing

High capacity
Low electricity usage
Easy to clean and change materials
Knead well
Die-face cutting
Adequate kneading

Model	GD-65THP-DF	GD-85THP-DF	GD-100THP-DF	GD-120THP-DF	GD-150THP-DF	GD-165THP-DF	GD-200THP-DF
Main Extruder
Screw Diameter L/D Ratio	8~12	8~12	8~12	8~12	8~12	8~12	8~12
Main Power	20HP	40HP	60HP	60~75HP	100~150HP	100~175HP	150~250HP
Twin Cone Feeding Motor	2HP	3HP	5HP	5~10HP	7.5~15HP	10~15HP	15~20HP
Die Face Cutter
Power	2HP	3HP	3HP	3HP	5HP	5HP	7.5HP
Separator
Power	10HP	10HP	10HP	10HP	15HP	15HP	15HP
Vibration Motor
Motor	1/4HP*2	1/4HP*2	1/4HP*2	1/4HP*2	1/4HP*2	3/4HP*2	3/4HP*2
Blower
Power	3HP	3HP	5HP	5HP	7.5HP	7.5HP	10HP
Storage Barrel
Capacity	1000L	1000L	1000L	1000L	1000L	1000L	1000L
Kneader
Volume	35L	35L	55L	75L	110L	110L	150L
Motor	40HP	40HP	100HP	150HP	200HP	200HP	300HP
Bucket Conveyor
Motor	2HP	2HP	2HP	2HP	2HP	2HP	2HP

＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.

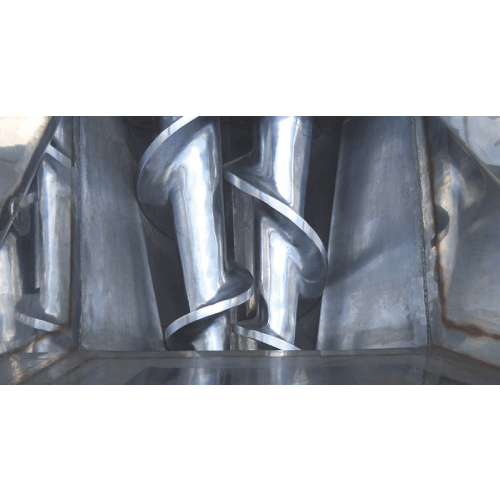

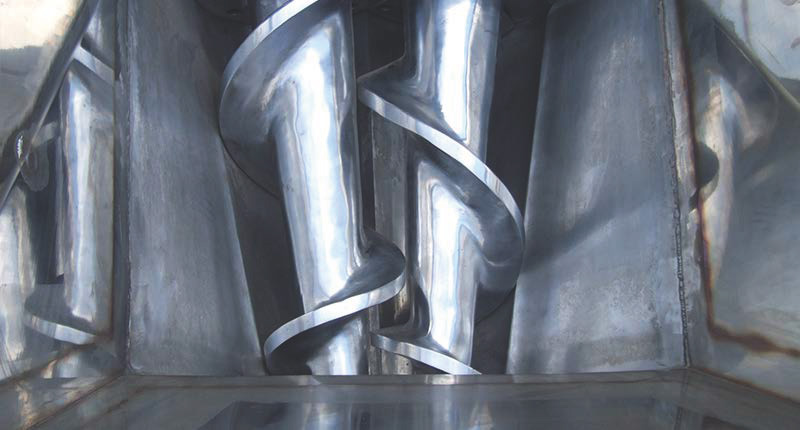

Twin-cone force feeding

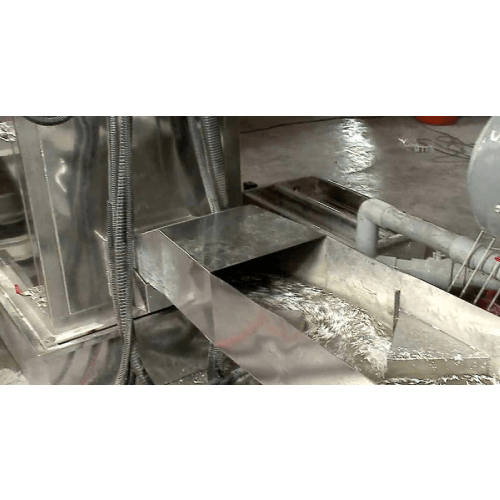

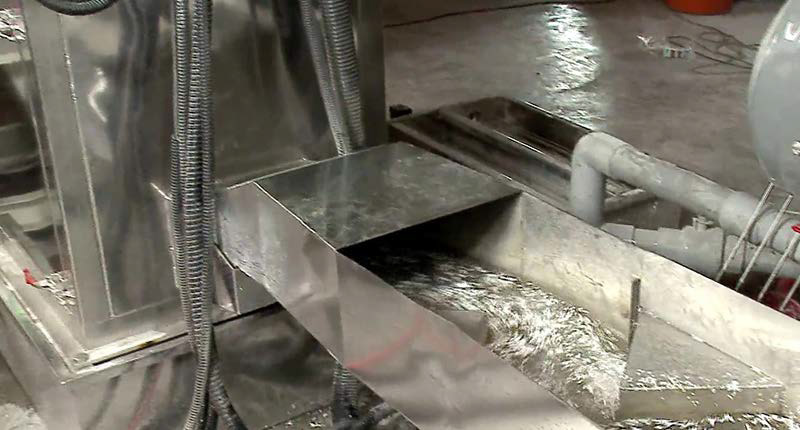

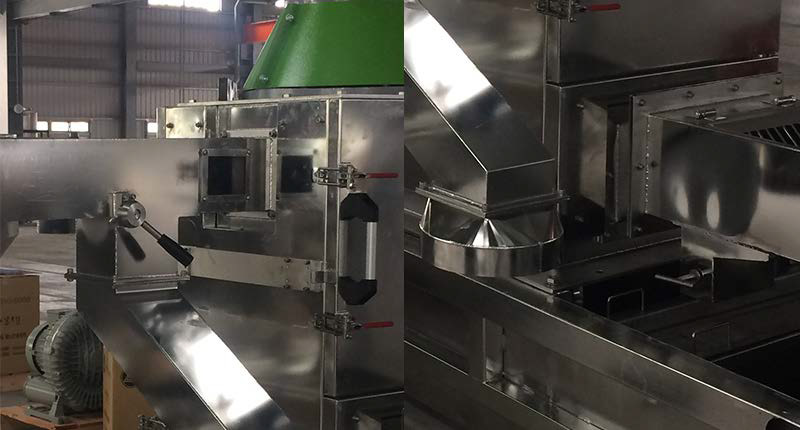

Water skiing tunnel provides well done water cooling before next step followed by high speed dryer.

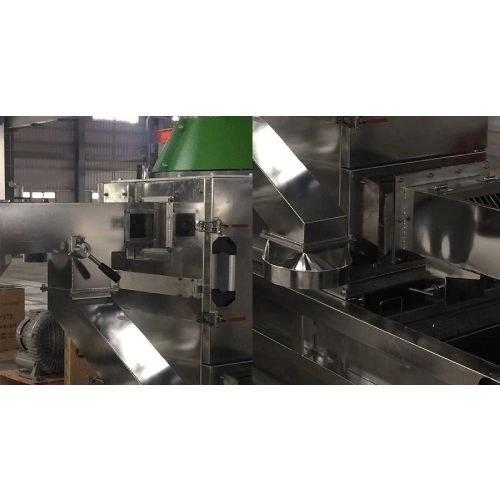

High speed dryer is soundproof with double layer sealing design.

You can purchase our kneader and hopper conveyor additionally as options for pre-kneading.

TPU

TPR

materials20-01

eva-granules

EVA
