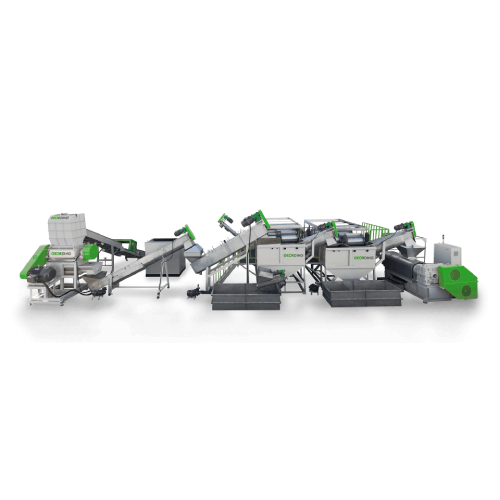

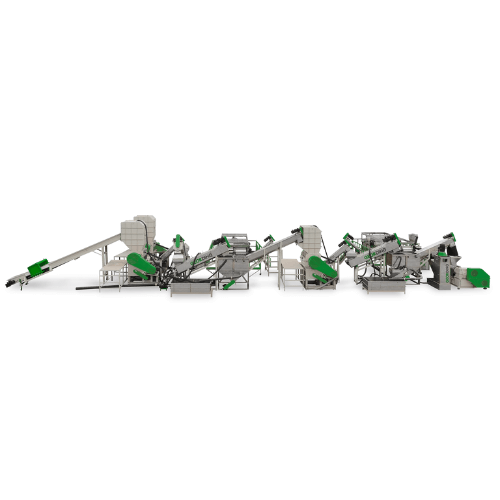

Crushing, Washing And Drying Whole Plant Facility For Plastic Film

Classification : Washing Line

GEOR-DING MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-26821888

Fax: 886-4-26819777

Contact Person: Jessica Liu

Inquiry Now

Suitable for different kind of plastic materials, e.g. plastic scrap and plastic shampoo bottle.

Suitable for different kind of plastic materials, are able to separate high density and dirty material.
With high speed washing machine, enable plastic materials inside the machine to be twisted, separated high density and dirty material and washed it for further use.
Whole set of electric facility are with automatic startup to protect wires in safe.

Optional Equipment:

GEORDING unique design Vertical dryer & Centrifugal dryer.
With Centrifugal Dryer, single screw rubbing drying machine can separate mud/dust, and dry material efficitently, making the product 3% under moisture.
You can opt to have 3 water tanks, depending on how dirty material is.

Customize

GEORDING could help customer build and modify according to individual specifications.

Model	GD-500PCW	GD-1000PCW
Conveyor
Motor	3HP	3HP x 2pcs

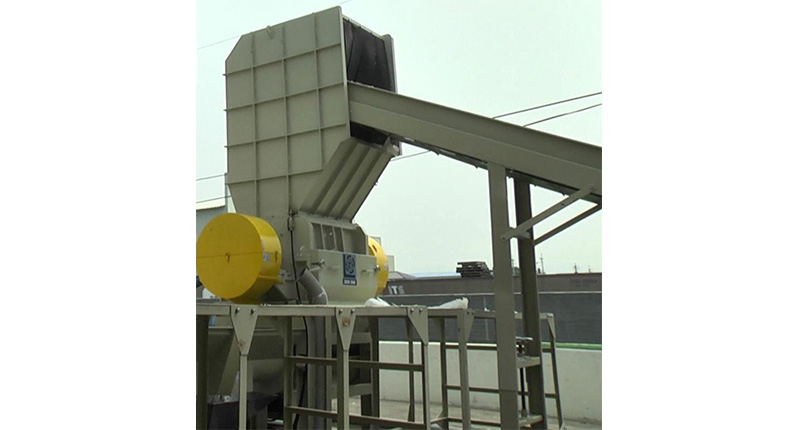

Wet Type Crusher
Motor	100~150HP	100~150HP x 2pcs

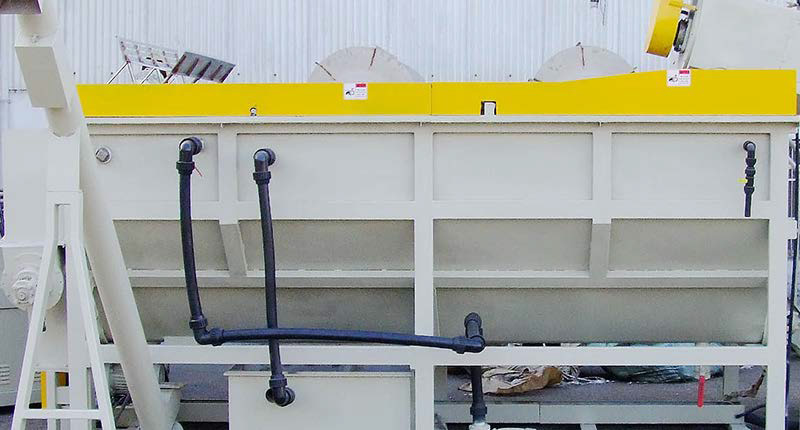

Floating Tank
Motor	10HP	10HP
Material	SUS304	SUS304
Frame Material	Iron and Steel	Iron and Steel
Screw Conveyor
Motor	3HP	3HP*2 pcs

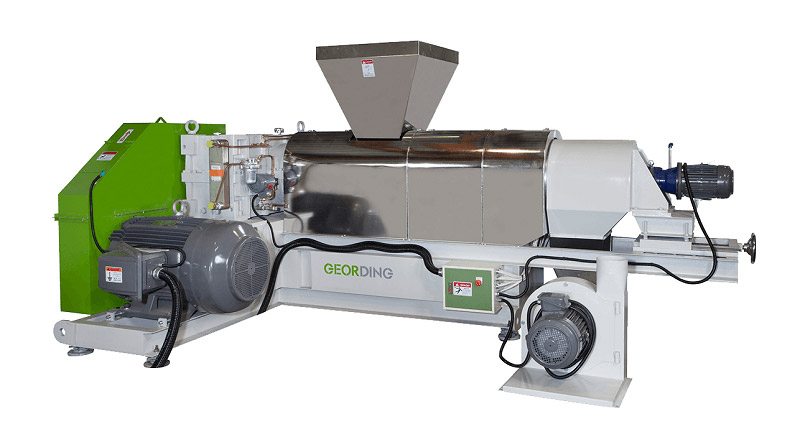

Single Screw Drying Machine
Motor	100~200HP	100~150HP x 2pcs
Jumbo Bag Frame
Material	Iron and Steel	Iron and Steel
Capacity
	500kg/hr	1000kg/hr
Optional
Horizontal Centrifuge	60~75HP	60~75HP
Optional

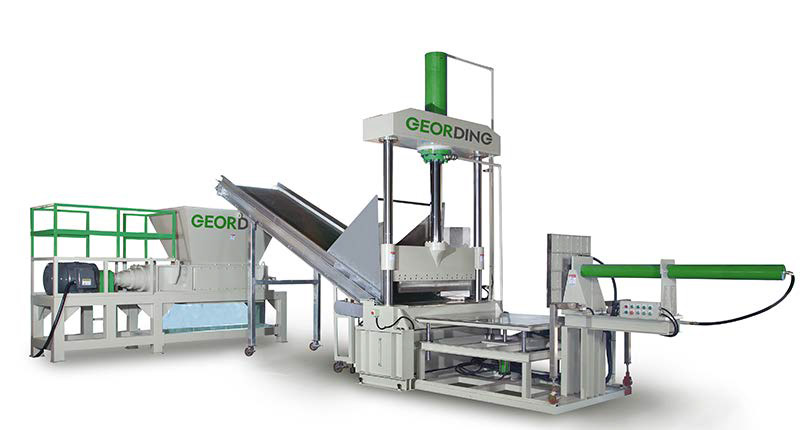

Shredder, Hydraulic Cutter	60~75HP	60~75HP

＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.
