Plastic Lump Crusher

Classification : Powerful Crusher

GEOR-DING MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-26821888

Fax: 886-4-26819777

Contact Person: Jessica Liu

Inquiry Now

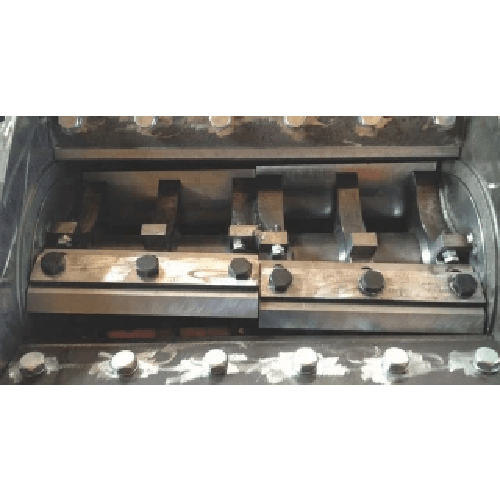

Easily maintenance with hydraulic opening body for cleaning residue and changingthe blades.

Includes stable energy current system that helps you save energy and with special design on the rotary cutting angle.
Bearings have been installed outside of the machine body that enables you to give easy maintenance.
The bearings will not be influenced by the temperature of the body, which will increase durability.
Hopper is able to take in big plastic products, thanks to the rotating diameter that has been considerably increased.
Application- Plastic bottles, plastic tanks, Drums, appliances covers, etc.

Model	GD-CØ500/750	GD-CØ500/1000	GD-CØ500/1200	GD-CØ600/750	GD-CØ600/1000	GD-CØ600/1200
Rotary Diameter
Size	Ø500mm	Ø500mm	Ø500mm	Ø600mm	Ø600mm	Ø600mm
Input Size
Size	500mm*750mm	500mm*1000mm	500mm*1200mm	600mm*750mm	600mm*1000mm	600mm*1200mm
Motor
	50~60HP	60~75HP	75~100HP	60~75HP	75~100HP	100~125HP
Rotary Cutter
Quantity	12pcs	16pcs	16pcs	12pcs	16pcs	16pcs
Stationary Cutter
Quantity	6pcs	4pcs	4pcs	6pcs	4pcs	4pcs
Capacity
kg/hr	600~800	700~1000	900~1200	800~1000	900~1200	1000~1300

＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.
