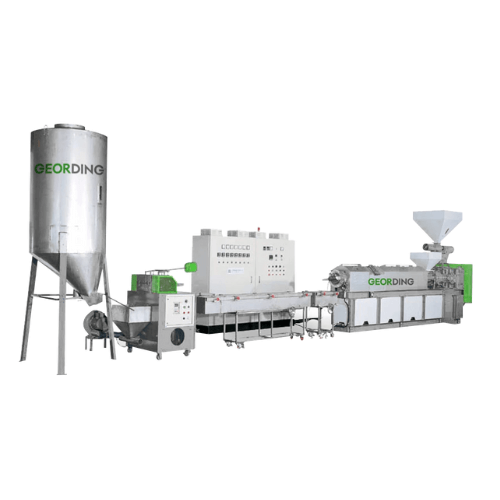

High-Speed Dyeing & Pelletizing Production Line

High-Speed Dyeing & Pelletizing Production Line

Classification : Dyeing & Pelletizing

GEOR-DING MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-26821888

Fax: 886-4-26819777

Contact Person: Jessica Liu

Inquiry Now

Suitable for masterbatch with fiber pelletizing, HDPE, LLDPE, LDPE, PP, PMMA, ABS, PC, Nylon, etc.

Special screw design for compounding
Changing material is easy
Easy to operate
Machine frame is very strong

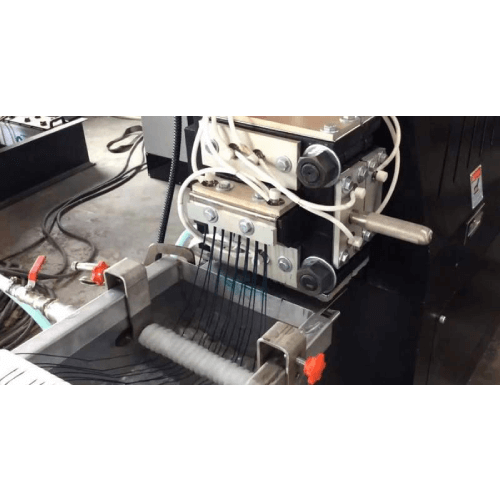

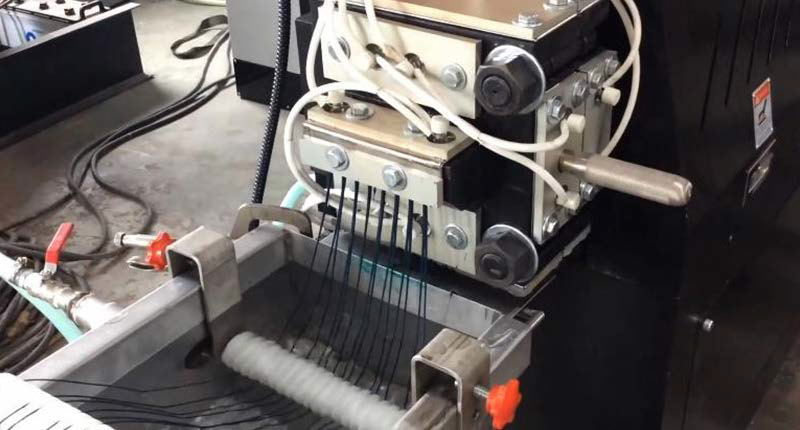

Customized screen changer

Model	GD-55HDP	GD-65HDP	GD-75HDP	GD-85HDP	GD-90HDP	GD-100HDP
Main Extruder
Screw Diameter L/D Ratio	36/1~42/1	36/1~42/1	36/1~42/1	36/1~42/1	36/1~42/1	36/1~42/1
Main Power	25HP	30HP	30~50HP	40~75HP	50~100HP	60~125HP
Temp. Control	4 zones	5 zones	5 zones	6 zones	7 zones	8 zones
Heating Capacity	16KW	22KW	26KW	35KW	40KW	47KW
Hydraulic Power	3HP	3HP	3HP	3HP	3HP	5HP
Max. Outpou/Hr	60~80kg	80~100kg	100~150kg	150~250kg	200~300kg	250~400kg
Cooling tunnel
Size(mm)	3050280250	3050280250	3050280250	3050280250	4500500250	4500500250
Pellet cutter
Power	3HP	3HP	3HP	3HP	5HP	7.5HP
Blower
Power	3HP	3HP	3HP	3HP	5HP	5HP

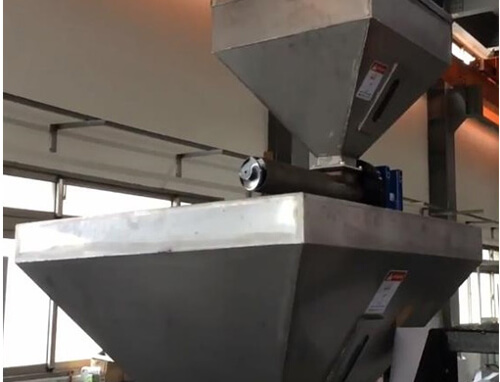

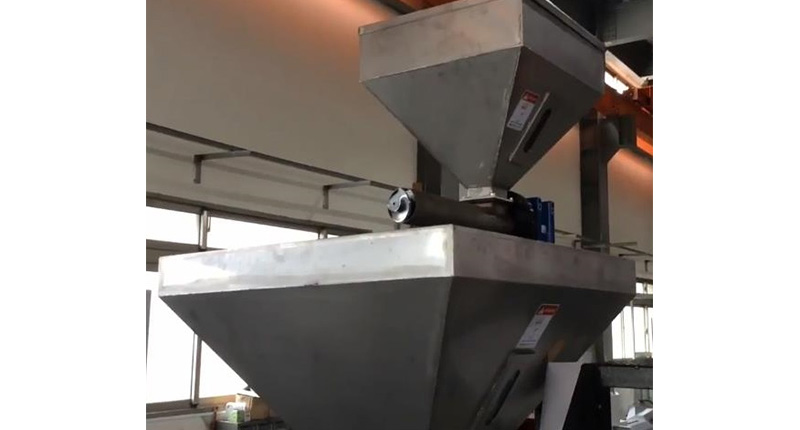

Storage Barrel
Capacity	500L	500L	1000L	1000L	1000L	1000L

＊The product line can be made to spec meeting customer needs.
＊Equipment specifications are also constanly updated. You are welcomed to contact us for details.

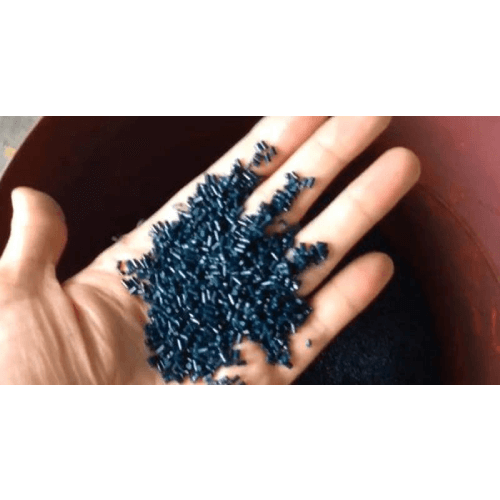

Masterbatch
