PURPOSE OF MACHINE

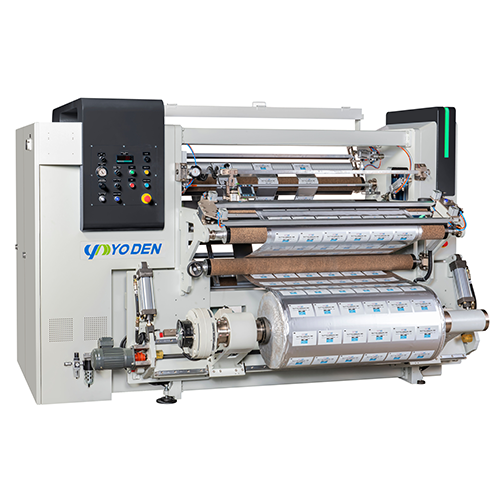

- The SLIT-HSC series slitter is new compact type to save the working space. From the unwind side, the web is guided middle to the main machine, easy access to the slitting section and eliminates dust collection/hazarded steps. The slitter comes standard with razor cutters and groove roller configuration. A shear cutter system is offered as option for paper and other pressure sensitive materials. The machine uses three AC Vector Drives and has automatic tension on unwind and rewind controlled through easy-to-use PLC & MNI touch screen. Friction rings are used on rewind shafts to ensure the production of quality slit rolls when the film thickness varies.
Model | COMPACT/ HSC |
Material | Plastic films, laminates, Paper |
---|---|
Machine speed | 300M/min, 400M/min |
Available web width | 800mm/1300mm |
Parent roll diameter | 800mm/1000mm |
Parent cores | 3",6" |
Finished roll diameter | 600mm |
Slitting system | Shear cut, Blade cut |
Slitting width | 50mm upward |
Winding cores | 3",6" |
