Rotogravure Printing Machines Control System

Classification : Rotogravure Printing Machines

Applications: Medical Equipments

WEBCONTROL MACHINERY CORP.

Country: Taiwan

Phone: 886-4-23587272

Fax: 886-4-23580882

Contact Person: Vicky Chen

Inquiry Now

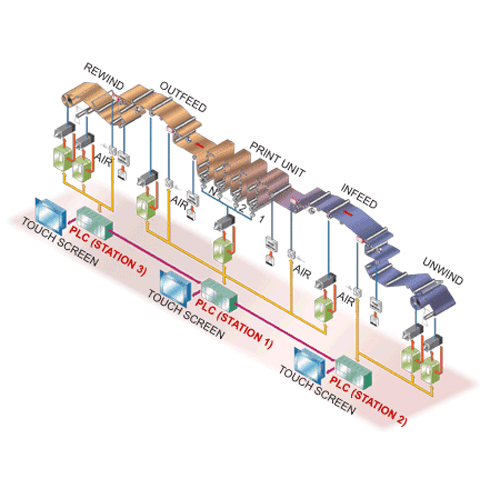

PLC STATION 1
- Printing speed control.
- Plate cylinder length setting.
- Printing parameter setting.
- Operation parameter setting.
- Driver status monitoring.
- Production additive memorizing.
- Malfunction alarm information.
- Tension information monitoring.

PLC STATION 2

- Automatic control of unwind tension.
- Diameter detecting control.
- Dancer roller tension control.
- Automatic cutting and roll change.
- Jointing surface sensing control.
- Automatic pre-drive jointing.
- Automatic control of infeed tension.
- E/P transducer control.

PLC STATION 3

- Automatic control of rewind tension.
- Decreasing tension control.
- Dancer roller tension control.
- Automatic cutting and roll changing.
- Non-stop roll change.
- Automatic product length counting.
- Automatic control of outfeed tension.
- E/P transducer control.

SUPER	STANDARD	POPULAR	ECONOMY
Main
AC vector motor & driver (22Kw + PG + Fan)	AC vector motor & driver (22Kw + PG + Fan)	AC motor & frequency inverter (15Kw)	AC motor & frequency inverter (11Kw)
Unwind
AC vector motor & driver (5.5Kw + PG + Fan)	AC vector motor & driver (3.7Kw + PG + Fan)	Powder brake 10kg-m	Powder brake 5 kg-m
Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Auto tension control
E/P transducer	Precision air regulator
Load cell & dancer roller	Dancer roller	Load celler	Manual tension control
Infeed
AC servo motor & driver (4 Kw)	AC vector motor & driver (2.2Kw)	AC motor & inverter (2.2Kw)	AC motor & inverter (1.5Kw)
Very low friction Air cylinder 63 x 78	Very low friction Air cylinder 63 x 78	Low friction Air cylinder 63 x 78	Low friction Air cylinder 63 x 78
E/P transducer	Precision air regulator	Precision air regulator	Precision air regulator
Load cell & dancer roller	Load cell & dancer roller	Dancer roller	Dancer roller
Outfeed
AC servo motor & driver (4 Kw)	AC vector motor & driver (2.2Kw)	AC motor & frequency Inverter (2.2Kw)	AC motor & inverter (1.5Kw)
Very low friction air cylinder 63 x 78	Very low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78
E/P transducer	Precision air regulator	Precision air regulator	Precision air regulator
Load cell & dancer roller	Dancer roller	Dancer roller	Dancer roller
Rewind
AC vector motor & driver (5.5Kw + PG + FAN)	AC vector motor & driver (3.7Kw + PG + Fan)	AC vector motor & driver (3.7Kw + PG + Fan)	DC torque motor & driver (2.2Kw + TG + Fan)
Low friction air cylinder 63 x 78	Low friction air cylinder 63 x 78	Auto tension controller
E/P Transducer	E/P Transducer
Load cell & dancer roller	Dancer roller	Load cell cont.	Manual tension control
PLC
Network type PLC	San Shiah high speed PLC	San Shiah medium PLC	San Shiah PLC
MMI Touchscreen
Color touchscreen 10" x 2	Grey touchscreen 6" x 2	Grey touchscreen 6" x 1	LED Key PAD type
Machine Speed
200 m/min (Max.)	160 m/min (Max.)	120 m/min (Max.)	100 m/min (Max.)
Printing Material
OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP, Paper	OPP, PE, PET, PVC, CPP
Tension Range
3-30 kg	3-30 kg	3-30 kg	3-30 kg
Unwind/Rewind Diameter
90-800 mm	90-600 mm	90-600 mm	90-600 mm
