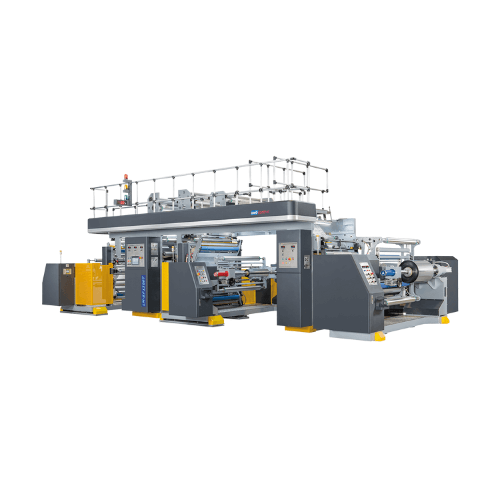

Turret Type Solventless Laminating Machine LM-SF1300T

Classification : Converting Machines
Country: Taiwan
Phone: 886-4-23587272
Fax: 886-4-23580882
Contact Person: Vicky Chen
Video Inquiry Now

PURPOSE OF MACHINE

  • Webcontrol develops innovative solventless laminators with driven coating system and automatic turret unwind & rewind for high efficiency, consistent tension & minimum waste during roll changes.

Shaftless-insert Type Bushing

Shaftless-insert Type Bushing

  • Adopt sleeve type chuck with tapered cone to hold core firmly with long stroke feature.

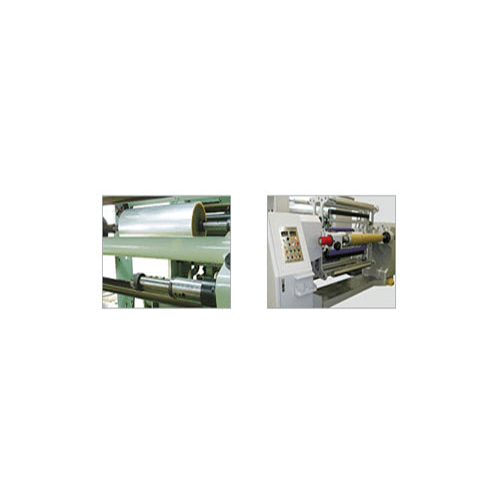

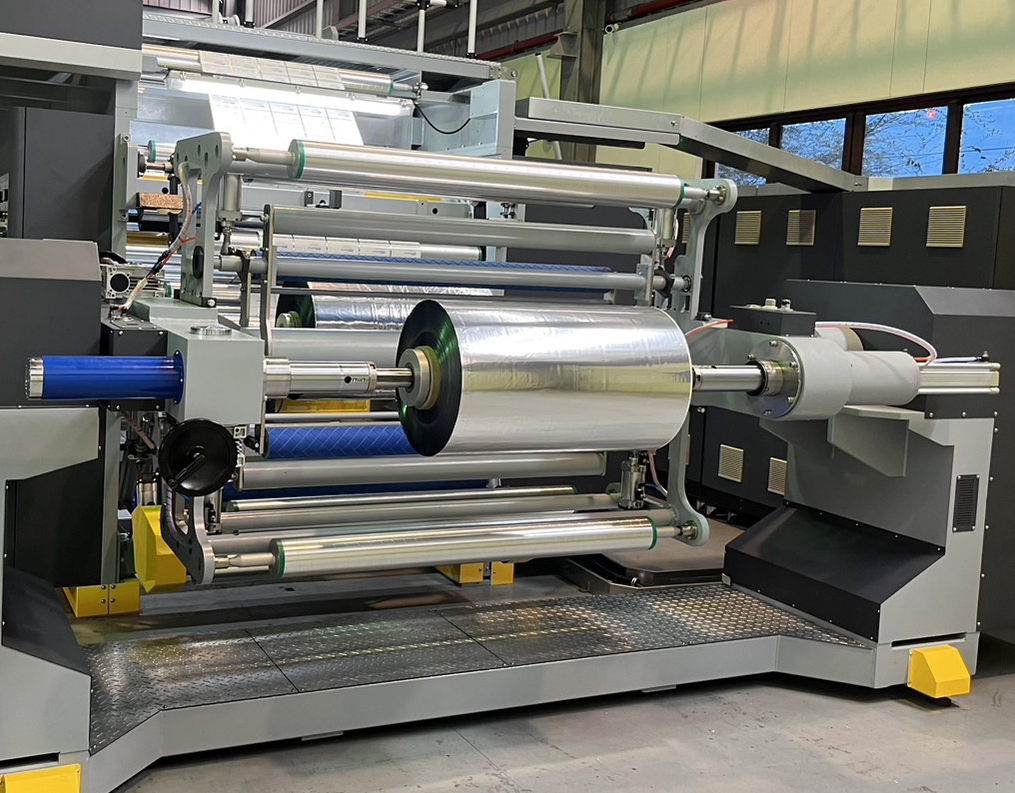

Turret Type Shaftless Unwind & Rewind

Turret Type Shaftless Unwind and Rewind

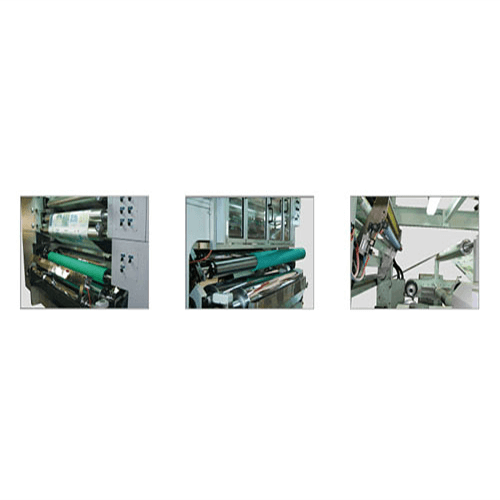

Coating Head

Coating Head

  • Consists of 5 rollers with 3 independent motor drives for doctoring roller, dosing roller sleeved transfer roller and coating roller.

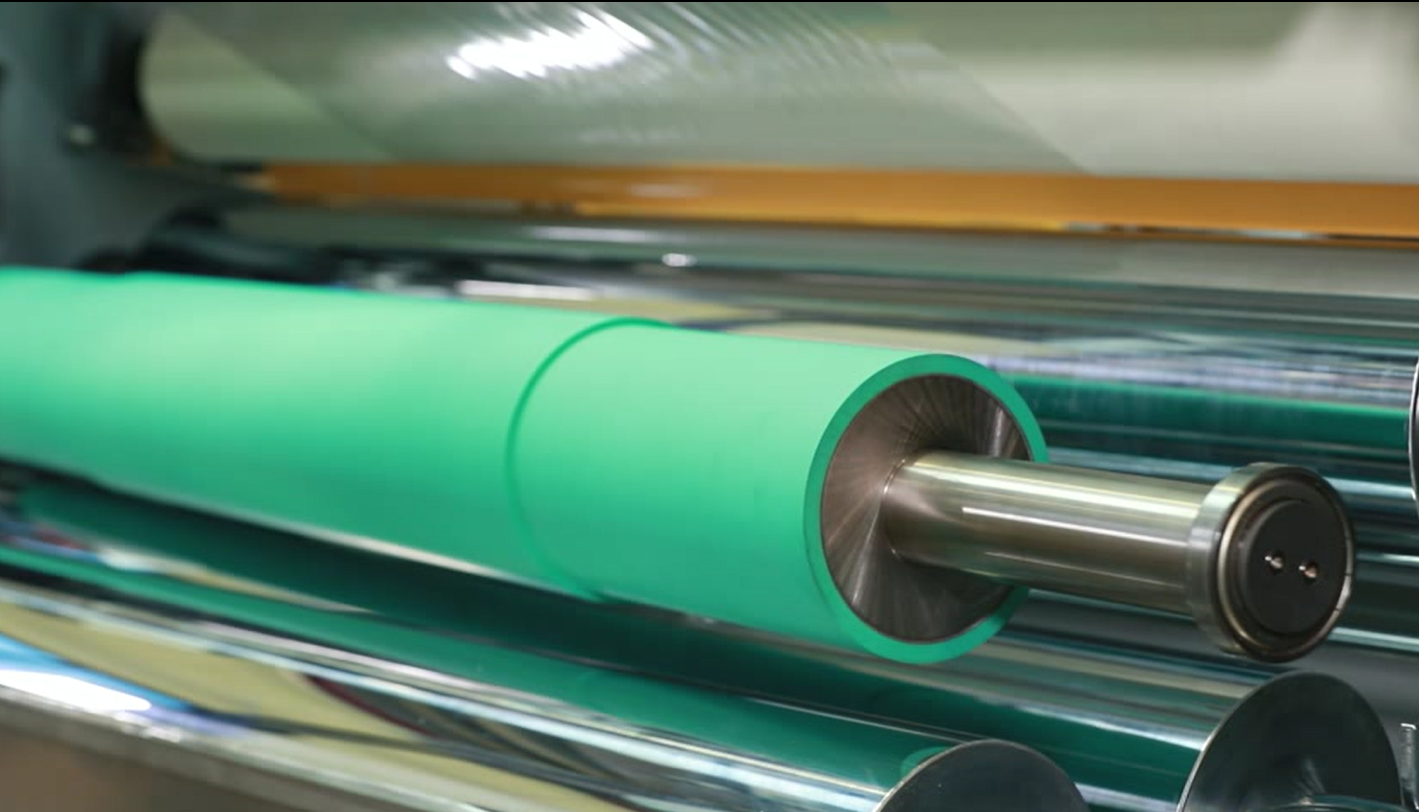

Sleeved Transfer Roller

Sleeved Transfer Roller

  • The sleeved transfer roller is more lighter and to be taken out quickly.

Non-stop & Auto Splicing

Non-stop & Auto Splicing

  • Auto splicing for non-stop production
  • Low waste during roller changes

Model

LM-SF1000T

LM-SF1300T

Machine speed

400 M/min

400 M/min

Material width

1000 mm

1300 mm

Max. coating roller width

1200 mm

1315 mm

Coating width range

1000 mm

1300 mm

First unwind diameter

800 mm

800 mm

Second unwind diameter

800 mm

800 mm

Rewind diameter

1000 mm

1000 mm

Dimensions

10940(L)×4095(W) ×3465(H) mm

10940(L)×6095(W) ×3465(H) mm
