Shaftless Type Dry Laminating Machine DL- S1000/S1300

Classification : Converting Machines

WEBCONTROL MACHINERY CORP.

Country: Taiwan

Phone: 886-4-23587272

Fax: 886-4-23580882

Contact Person: Vicky Chen

Inquiry Now

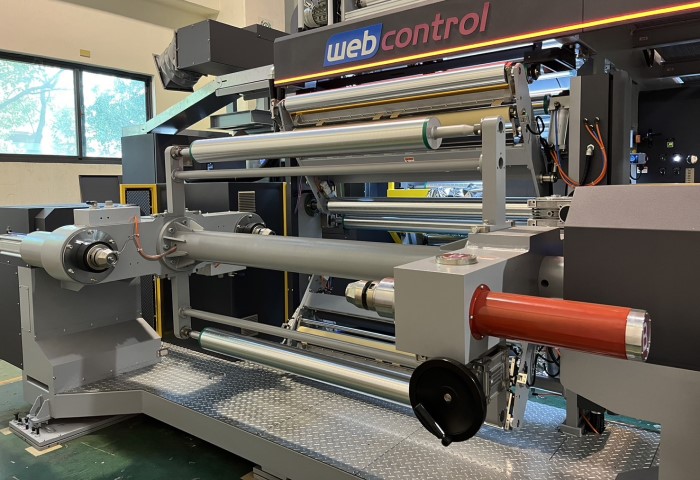

- SHAFTED-AIR SHAFT TYPE REWINDER

Adopt sleeve type chuck with tapered cone to hold core firmly with long stroke feature.

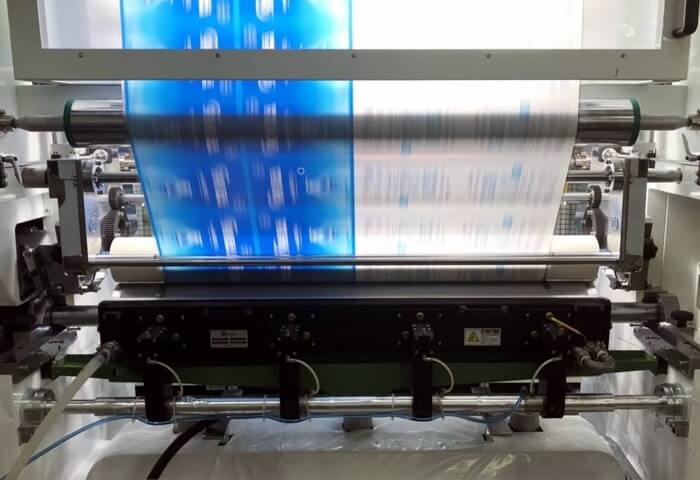

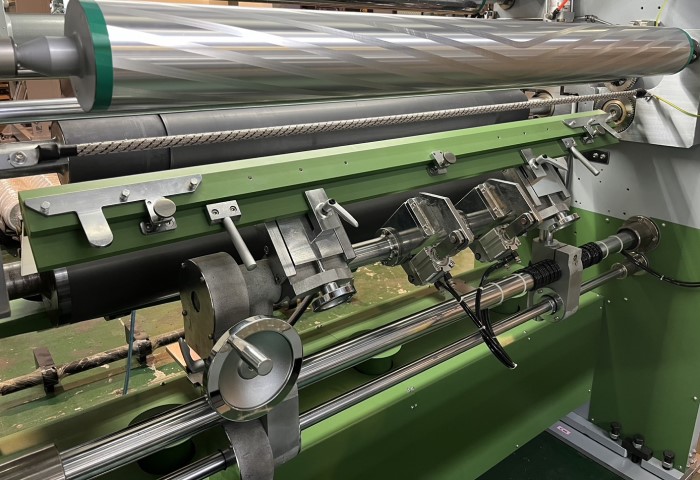

- SMOOTHING ROLL
The smoothing roll is operated by air cylinder.
An indexing handle provides micrometric adjustment of contact. Contact position is displayed easily.
Smoothing roll features synchronized motion with pressure roll raising and is separated by material.

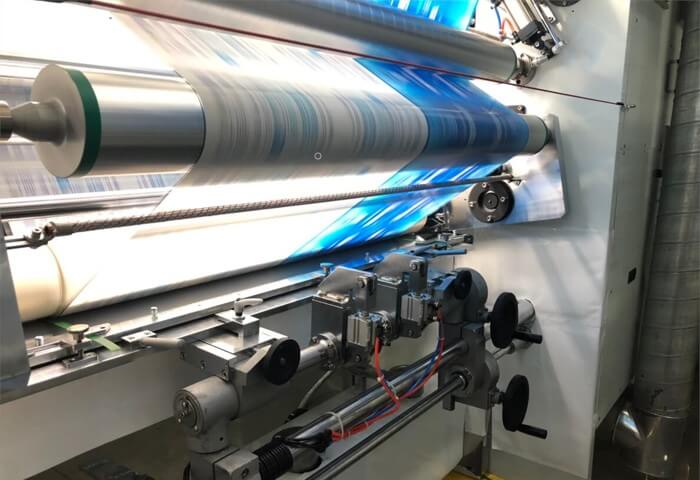

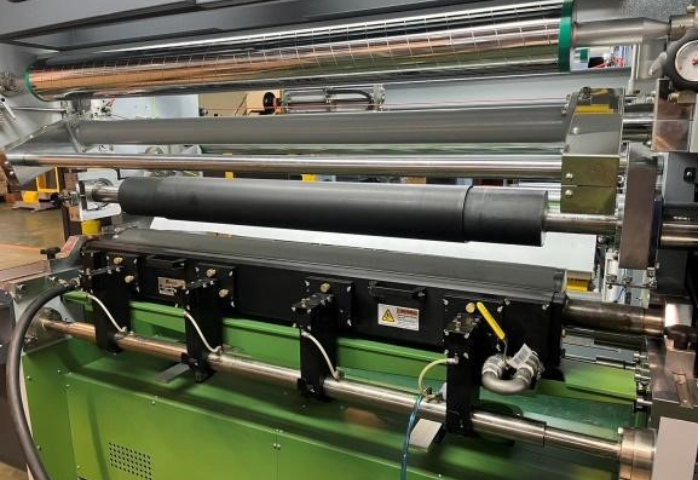

- CHAMBER DOCTOR BLADE SYSTEM
No glue splashing during high speed operation.
Minimum solvent odor.
Easy to install and clean.
Minimum variation of liquid viscosity.
Long service life of doctor blade.

Model	DL-S1000	DL-S1300
Machine speed	200, 250 m/min
Working speed	180-230 m/min
Laminating material	All kinds of web

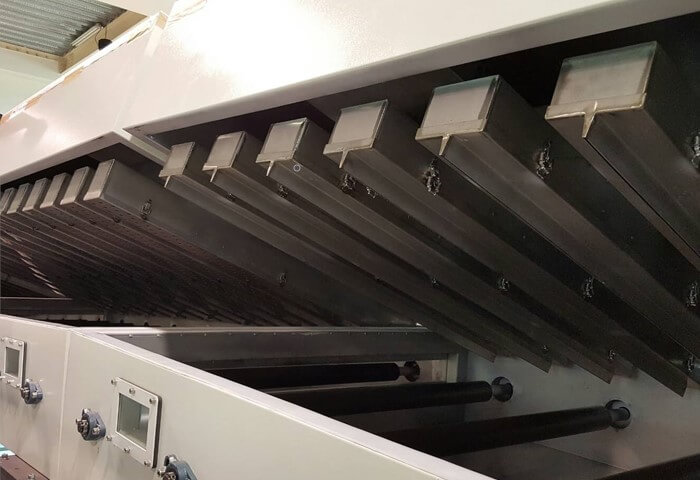

Drying system	Electric heater (Gas, steam or thermal oil as optional)

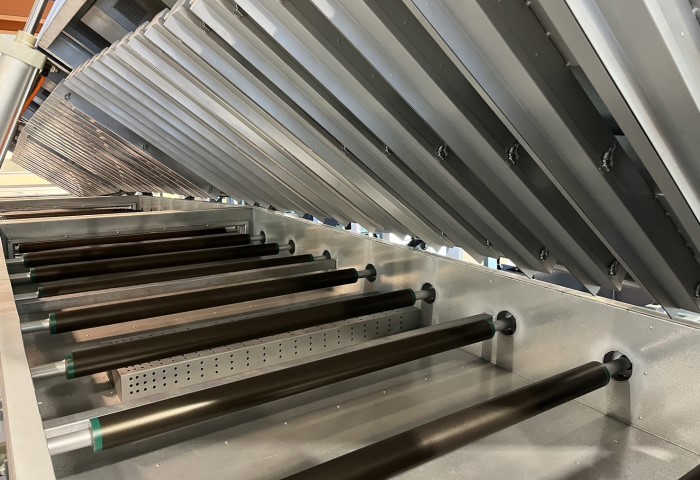

Drying tunnel length	2.7M x3 sections (8.1M, 10.8M)
Guide roller for drying tunnel	Ø90 mm, surface chrome plated. Driven by timing belt.

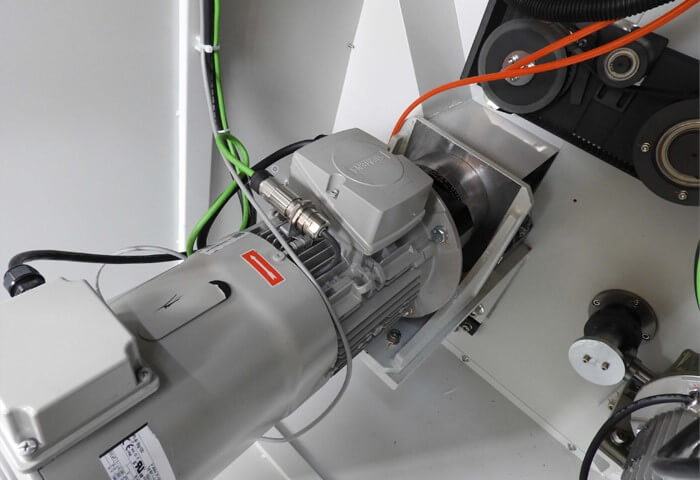

Coating system	Gravure type, individual motor drive

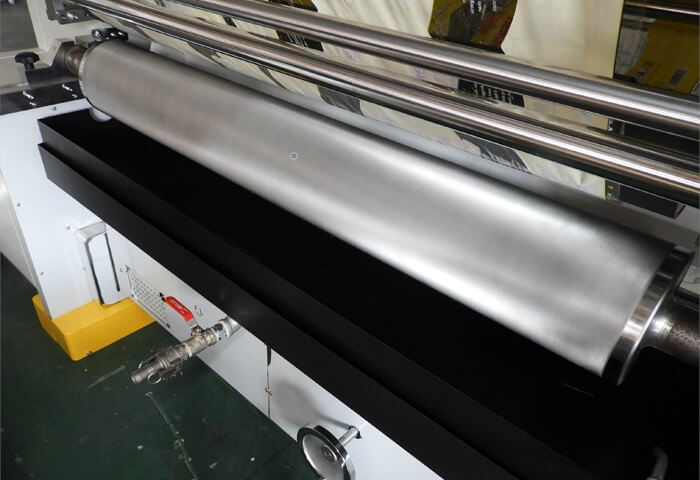

Adhesive pan	Stainless steel double-layer type (outer layer can absorb solvent smell)
Laminating roller	Mirror-effect treated, hot oil circulation
Drying tunnel tension range	2-15Kg
First substrate tension range	4-25Kg
Second substrate tension range	3-25Kg
Finished products tension range	4-25Kg
Max. unwind diameter	600-800 mm
Max. rewind diameter	800-920 mm
Unwind material fixed method	Shaftless(Built-in extended sleeve)
Rewind material fixed method	Shaftless(Built-in extended sleeve)
Preheating roller	Hot water circulation
Guide roller type	Ø120mm., shaft type, Hard chrome coating
Ladder	Swing type
Max. material width	1100mm	1350mm
Coating roller width	1200mm	1400mm
Coating width range	700-1050mm	700-1300mm
Drying blower	5HP x 3 sets / 7.5HP x 3 sets	5HP x 3 sets / 7.5HP x 3 sets
Exhaust blower as optional	15/22 HP	15/22 HP
Memory data	●	●
Auto. Splicing system	●	●
Upper cutter on rewinder	●	●
Lower cutter on unwinder	Optional	Optional
Upper cutter on unwinder 1	●	●
Lower cutter on unwinder 1	Optional	Optional
Upper cutter on unwinder 2	Optional	Optional
Lower cutter on unwinder 2	●	●
Web guide system on unwinder 1	●	●
Web guide system on unwinder 2	●	●
Web guide system on drying tunnel outlet	●	●
Adjustable smoothing roller	●	●
Dancing roller tension control	●	●
Chamber doctor system	Optional	Optional

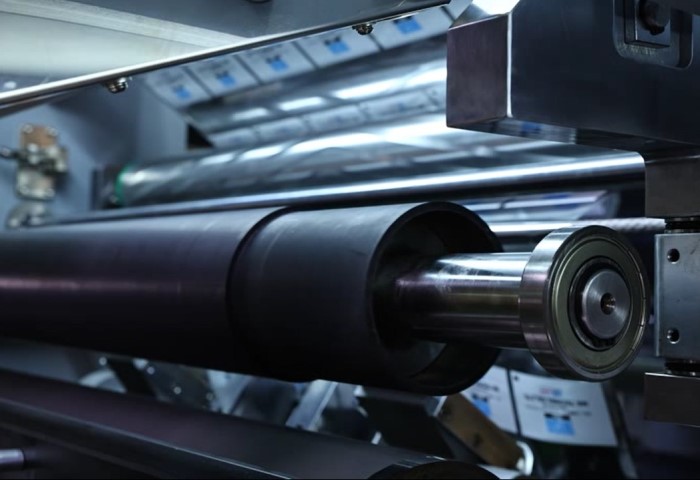

Sleeve-type impression roller	Optional	Optional
Induction type laminating roller	Optional	Optional
Preheating roller	Optional	Optional
Corona treatment device	Optional	Optional

．All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.
．Control systems for other bag making machines are available. Contact us for further details.
