PRM-TAIWAN
Classification : Converting Machines
Country: Taiwan
Phone: 886-4-23587272
Fax: 886-4-23580882
Contact Person: Vicky Chen
Inquiry Now

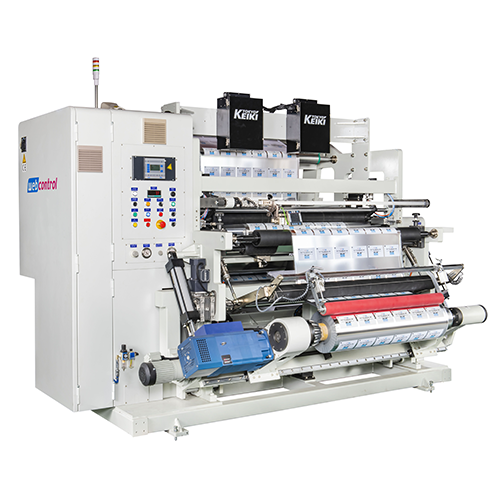

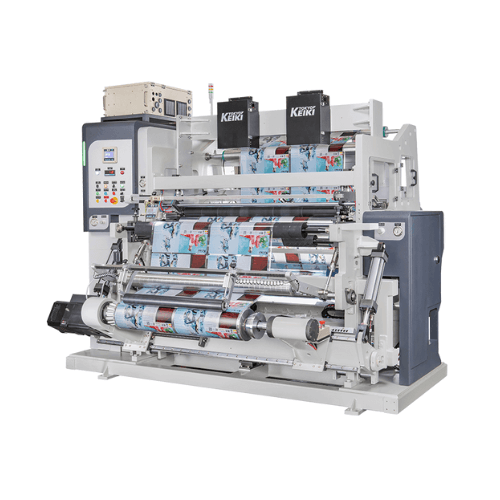

PURPOSE OF MACHINE

  • This model is designed for wide web after printing or lamination, Auto. defects detecting system for precisely and 100% continuously inspection is optional which is becoming more popular in order to meet increasingly demand of zero defect.

Memory Function

Memory Function

  • When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, the defects will be stopped at center of inspection table for operator to easily find and cut off the part.

Man-machine Interface (MMI)

Man-machine Interface (MMI)

  • All models come standard with MMI touch screen interface. The touch screen has high resolution color as well as a long service life. All models come standard with independent and free-standing operator panels.

Pressure Wheel

Pressure Wheel

Model

INSPECT-S

Speed(M/min)

300

Available width(mm)

1300/1600

Unwind diameter(mm)

800

Rewind diameter(mm)

800

STANDARD

Digital guiding system

Shaftiess unwind/rewind

Shaft unwind/rewind

N/A

Cantileverd unwind/rewind unit with 3” air shaft

N/A

Forward and backward operation

Tension transducers for unwind and rewind unit

Dancer tension control on unwind and rewind unit

N/A

Taper tension mode

OPTIONAL

Auto. Defects detection system(100% inspection)

Stroboscope

Splice Table

Trim Slitting System

Unwind and rewind diameter increase – 1000mm.

Unwind 6” chuck

Rewind 6” chuck

CE/UL
