WEBCONTROL: Ultra Slitter Rewinder, all Features for High End Converting of Flexible Packaging Materials

2021-06-11 Author : WEBCONTROL MACHINERY CORP.

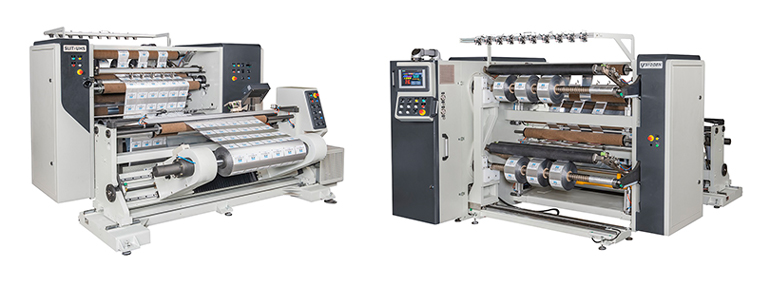

ULTRA Slitter

The ULTRA model slitter rewinder has all the features for high end converting of flexible packaging materials as well as label stock. Razor slitting in groove or air is offered in its standard configuration. Shear slitting systems are optional, offered with manual, semi or fully automatic position control. Three AC Vector Drives, automatic tension control on unwind and rewind through easy-to-use Siemens PLC & MMI touch screen, ensure optimum finished roll quality.

The machine features an S-wrap transport section with vacuum roller for stable and slip free web transport during acceleration and deceleration. The ULTRA series slitter rewinders are offered in widths of 1300mm, 1600mm and 1800mm at speeds up to 600 m/min. Differential rewind shafts with individual ball lock friction elements, combined with E/P lay-on rollers are essential for best winding results.

The ULTRA series slitter, with 2 version of web path, and 2 types of lay-on roller design, which provide customer more solutions to fit their material.

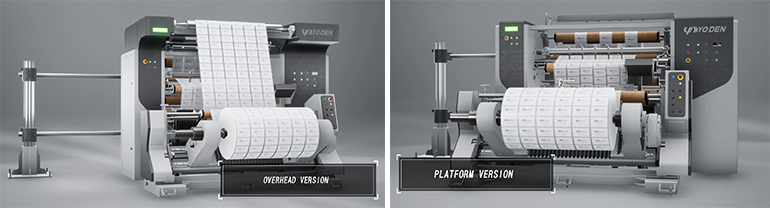

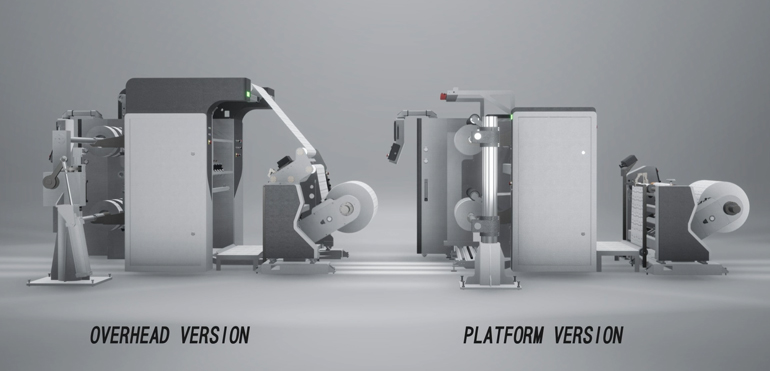

Overhead Version: From the unwinder, the web is guided overhead to the main machine.
Platform Version: From the unwinder, the web is guided underneath a platform to the main machine.

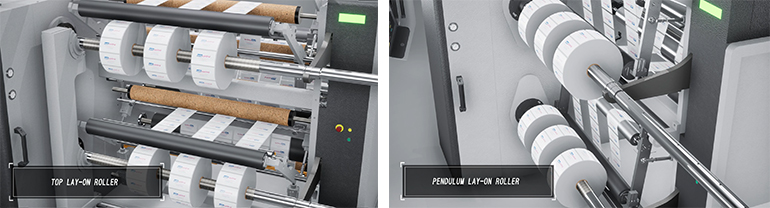

Top Lay-on Roller: Suitable for high tension requested material, such as after laminates material.
Pendulum Lay-on Roller: Suitable for low tension requested material, such as PE,PP material.









 Official Website
 http://www.webcontrol.com.tw/

 WEBCONTROL at PRM-TAIWAN
 https://www.prm-taiwan.com/com/webcontrol.html





Author:WEBCONTROL MACHINERY CORP.
Webcontrol Machinery Corp has been specializing in manufacture of Converting Machines include Flexible Packaging Converting as well as Shrink Sleeve Converting since 1988. Webcontrol ceaselessly develop new machine to extend production line for meeting various needs of customers. In additions, we constantly improve our Converting Machines, Slitting Machines and Rotogravure Printing Machine with new technology, and innovate to enhances its performance, efficiency and reducing waste on production. The most strength of Webcontrol is integration of mechanical and electrical control system. It is one of way which we achieve maximum performance of machines, such as Paper Converting Machine, Rotogravure Printing Machinery, Film Slitting Machine, Label Slitting Machine and Paper Converter. All control system include software on PLC & MMI from internal term who has comprehensive experience is able to understand requirements of end-users during practical operation; friendly, smarter software for ease of operation. Our consistently aim is to build high-performance, sophisticated Converting Machinery with inexpensive price as well as providing fast service ensure our worldwide customers must be satisfied.
