Raschel Knitting Machine SR-F series

Classification : Single Bed Raschel Knitting Machine

FUNG CHANG INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-3-4717824

Fax: 886-3-4717702

Contact Person: Mr.Yu

Inquiry Now

Video

Model SR-F series is Single needle bed Raschel knitting machine, designed for making the flat yarn products.
The control panel of this series adopts inverters to control different motion, which let machine operation more conveniently and easily.

The efficiency of knitting machine will be more than 10% if it matches slitting & extension machine. Because of its steady yarn feeding, the machine can raise the quality of fabric also the waste material rate would be less.
If customer had flat yarn or monofilament making machine already, we could offer creel stand.

■ Attach Slitting and Extension machine can save the space.
■ Adopt inverters or servo motors for machine control.
■ The quality production and flexible application
■ Stable production speed.

■ Simple operating and maintenance.

Remarks

Special specifications are also available.
Manufacturer reserve the right to change the specifications without notice.

Model	SR-F
Available Width	170"	210"	240"
Gauge of Needle Bed	6, 9, 12, 18G/1"
Drive Bar (Total)	2 ~ 8
Yarn Feeding Bar:	2 or 4
Main Motor/W Inverter	7.5HP	10HP	10HP
Power Consumption	7.3KW	9.3KW	9.3KW
Yarn let off system	Slitting & Extension Machine or Creel
Dimension L x W x H (mm)	6,360 x 1,760 x 2,790	7,320 x 1,700 x 2,790	8,040 x 1,700 x 2,790

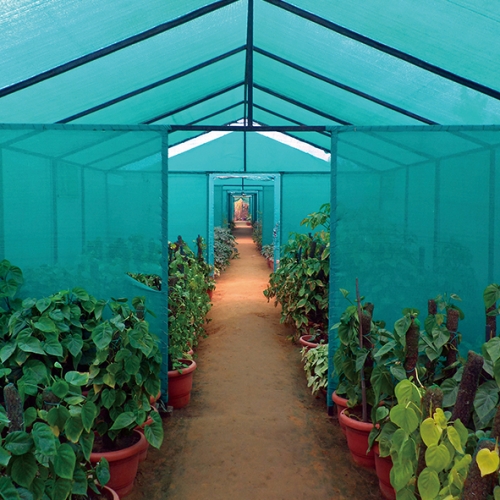

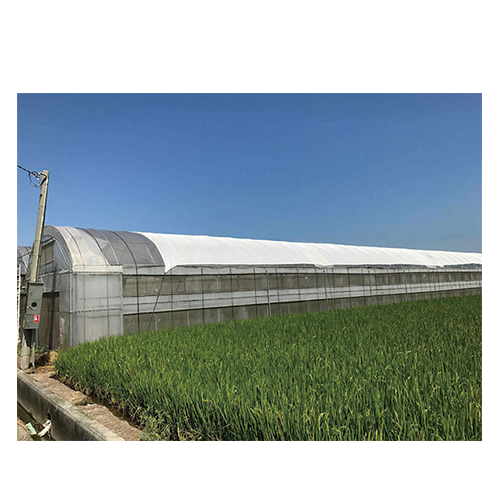

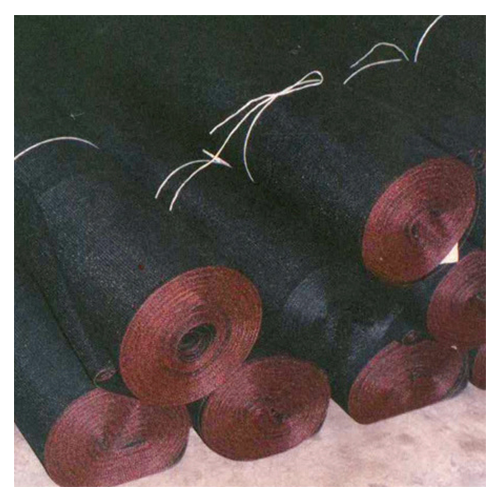

■ Agriculture net, like Shade net, Anti hail net, pasture net.
■ Packing net: Pallet net / bale net.
■ Fruit / Vegetable bag (L sewing type).
■ Fencing net, Wind breaker.
